Radiolink AT10 2.4GHz 12CH RC Drone Remote with PRM-01 Transmitter and R12DS Receiver

Radiolink AT10 2.4GHz 12CH RC Drone Remote with PRM-01 Transmitter and R12DS Receiver has revolutionized the way people experience RC, and now this radio transmitter and Receiver can stand up to the top competitions. This 12 channel with PRM-01 2.4GHz Module Transmitter, is developed by RADIOLINK for all the Radio Control model lovers and is patented by RADIOLINK at home. The system is specially developed for all the Radio control models, that offer super active and passive anti-jamming capabilities, very low power consumption, and high receiver sensitivity. With extreme rigorous testing by engineers and studying the markets for years.

2.4GHz is the standard of the new generation radio system because it has a lot of advantages. Operating at 2.4 GHz puts the radio control out of the frequency range of any ‘noise’ generated by the other electronic components on your helicopters – such as the brushless motor, Electronic speed controller, Servos, and any metal to metal noise – eliminating interference and glitching that can affect traditional frequency system.

Applications:

1. Ideal for Flying Virtually any Type of Aircraft- Fixed Wing, Rotary, Glider, Multirotor and Hybrids
2. Excellent Transmitter for Recreation, Sport, Competition or 3D Flying

Precautions:

1. Never Operates The model during adverse weather conditions. Poor Visibility can cause disorientation and loss of control of the model
2. Always ensure the trim levers at 0 and battery properly charged changed before connecting the receiver
3. always check all servos and their connections prior to each run
4. always be sure about turning off the receiver before the transmitter

Features:

1. User name and model setup can be saved (up to 15 aircraft)
2. RSSI and Telemetry
3. Adjustable display brightness and contrast
4. Multiple alarms
5. Servo reversing and end-point adjustment
6. Adjustable servo travel limit (prevents pushrod jamming)
7. Servo Cycle function helps locate servo problems
8. Dual, Triple and Exponential rates
9. Digitally controlled Trim switches
10. Sub-Trim program changes the servo neutral position
11. Adjustable gimbal-stick length and tension


    ---

 Specifications:

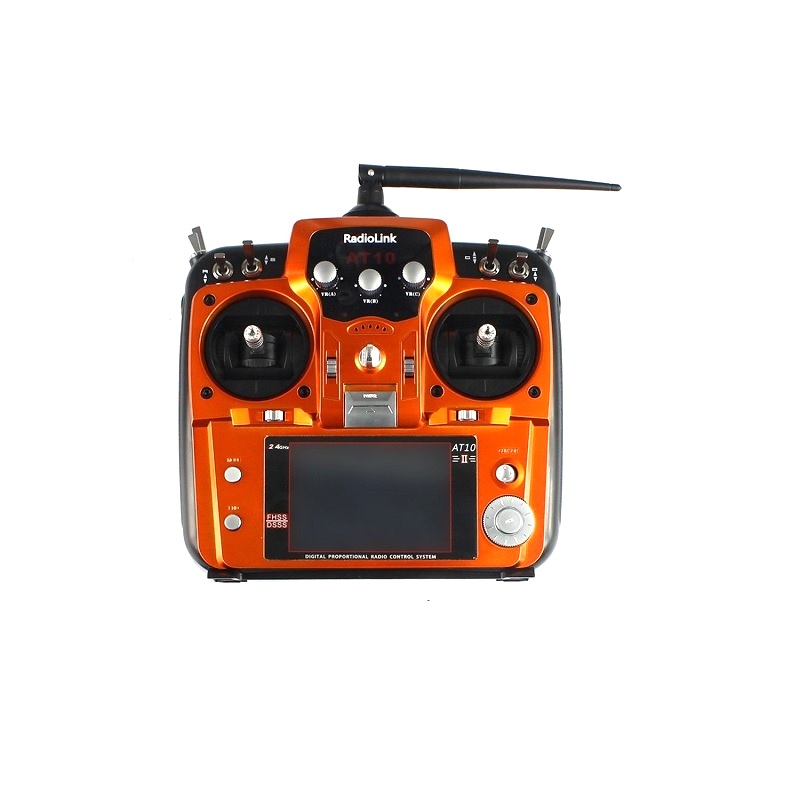

 AT10II RC Transmitter Specifications:

• Channels: 12CH

• Control Distance: Up to 4000 meters in the air
• Frequency: 2.4GHz ISM bands (2400MHz to 2483.5MHz)
• Channel Bandswidth: 5.0 MHz
• Spread Spectrum: DSSS&FHSS
• Adjacent Channel rejection: 38dbm
• Transmitter Power: <100mW (20dbm )
• Operating Current: <90mA
• Operating Voltage: 7.4~15.0V
• Section Precision: 4096
• Screen: 3.5 inches 16 colorful screen, 320*480 pixels
• Support receivers: R12DS, R9DS, R6DS, R6DSM, and R12DSM

        R12DS Specifications:

1. Operating Voltage:4.6-10 V
2. Operating Current:38-45 mA@5V
3. Signal Output:SBUS &PWM
4. Channel:12 CH
5. Control Range:4Km in the Air
6. Weight:14 gm
7. Dimension:50x32x15 mm

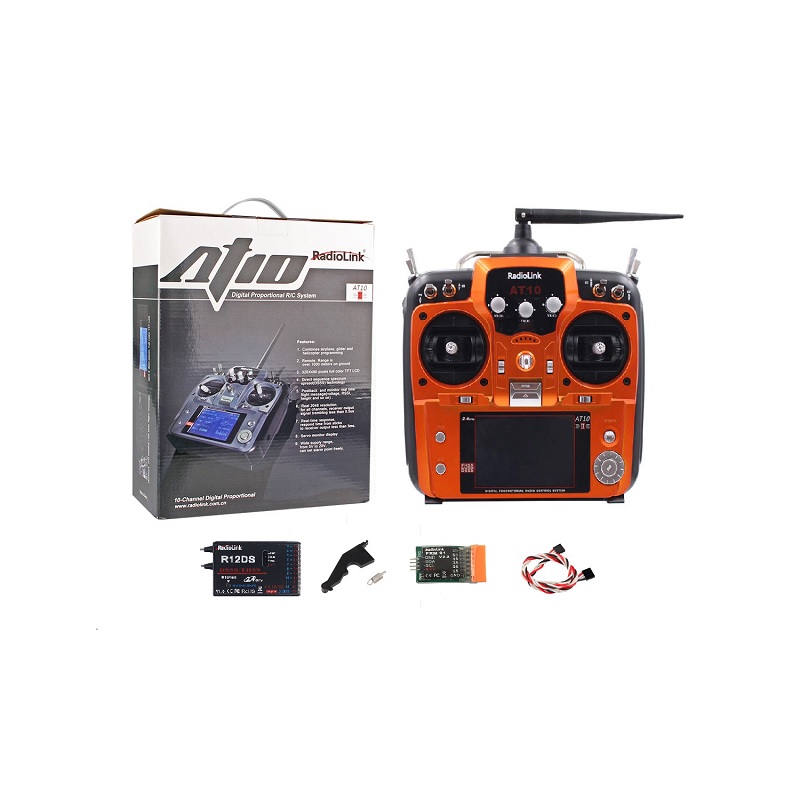

Package Includes:

1 x Radiolink AT10 2.4GHz 12CH RC Drone Remote with PRM-01 Transmitter and R12DS Receiver
