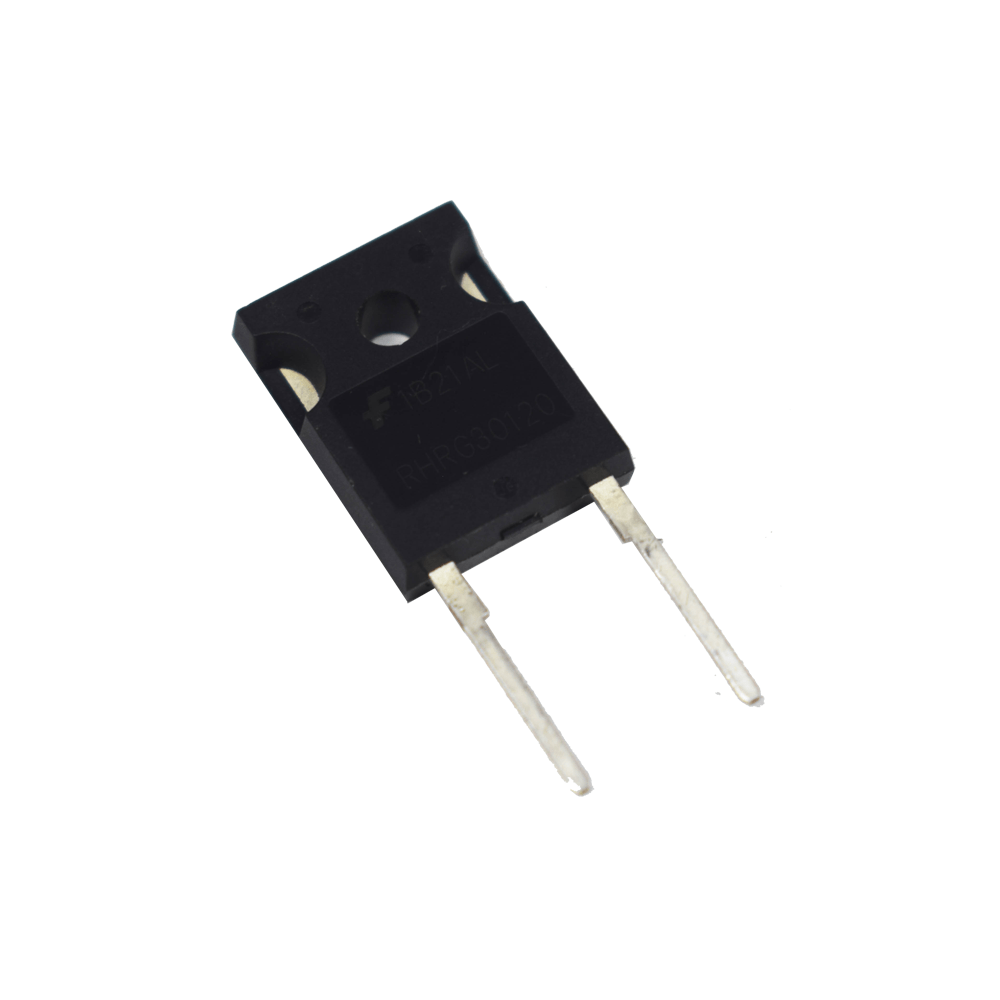

RHRG30120 30A 1200V Diode TO∀™247 Package

Original price was: ₹207.63.Current price is: ₹176.42. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%167.59 (Including tax)
11 - 208%162.30 (Including tax)
21 - 4010%158.77 (Including tax)
41 - 10012%155.24 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

17 People watching this product now!
Description

The RHRG30120 is a 30A 1200V Diode with a TO−247 Package. The RHRG30120 is a high-speed diode with a soft recovery characteristic. It is silicon nitride passivated ion-implanted epitaxial planar construction with half the recovery time of ultrafast diodes. These devices are designed for use as freewheeling/clamping diodes and diodes in a wide range of switching power supplies and other power-switching applications. Because of their low stored charge and hyper fast soft recovery, they reduce ringing and electrical noise in many power switching circuits, lowering power loss in the switching transistors.

Features

  • Hyper fast Recovery trr = 85 ns (@ IF = 30 A)
  • Max Forward Voltage, VF = 3.2 V (@ TC = 25°C)
  • 1200 V Reverse Voltage and High Reliability
  • Avalanche Energy Rated
  • This Device is Pb−Free and is RoHS Compliant

Applications

  • Switching Power Supplies
  • Power Switching Circuits
  • General Purpose
Specifications
ModelRHRG30120
Brand Fairchild
Working Peak Reverse Voltage1200 V
Peak Repetitive Reverse Voltage1200 V
DC Blocking Voltage1200 V
Average Rectified Forward Current30 A
Repetitive Peak Surge Current (Square Wave, 20 kHz)60A
Maximum Power Dissipation125W
Mounting StyleThrough Hole
Lead Pin02
PackageTO247
Operating and Storage Temperature−65 to 175°C
Country of OriginChina
