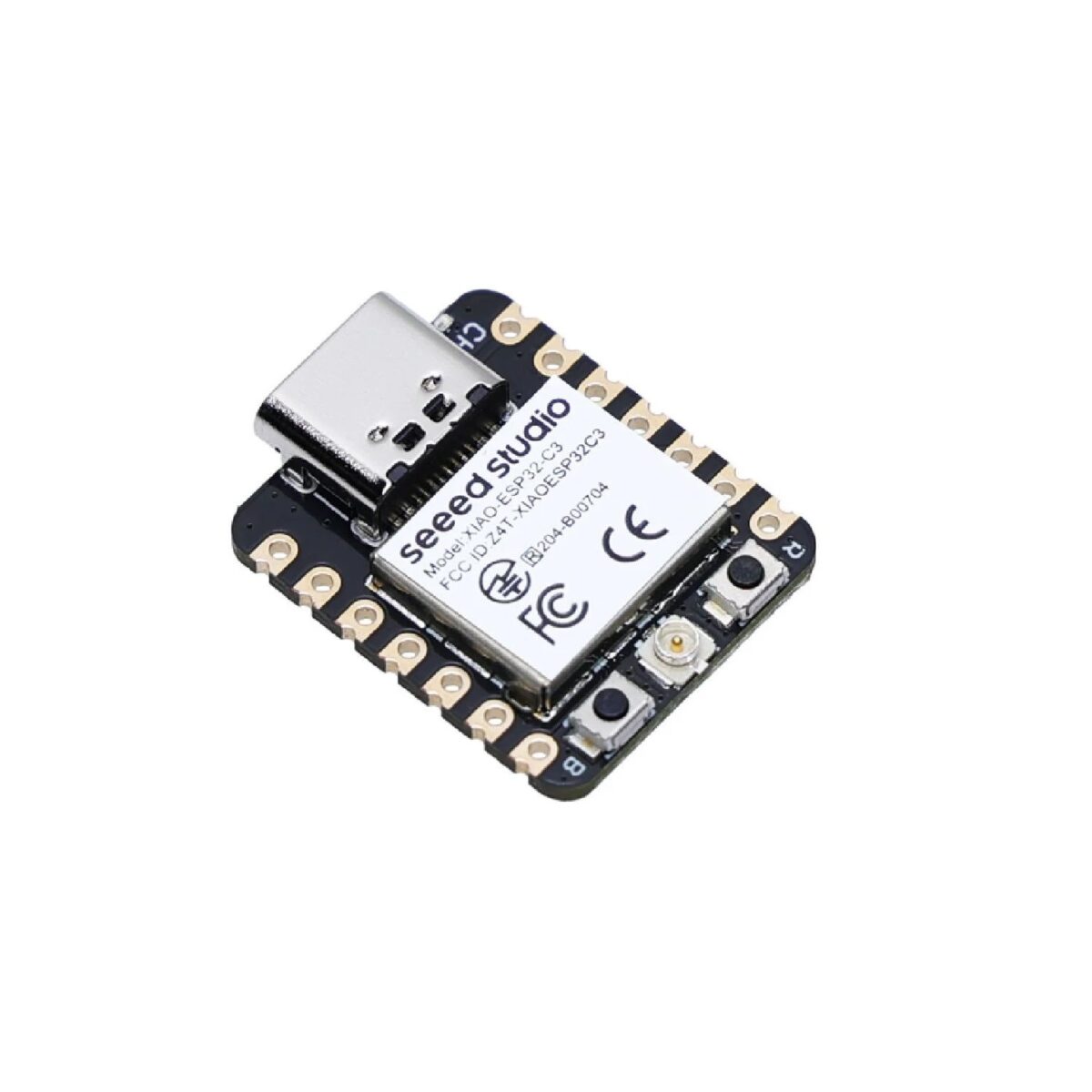

Seeed Studio XIAO ESP32C3 – tiny MCU board with Wi-Fi and BLE, battery charge supported, power efficiency and rich Interface

0 Reviews
Available on backorder

665.85 (Including tax)

  1. Brand: Seeed Studio
  2. Product: XIAO ESP32C3 – tiny MCU board with Wi-Fi and BLE
  3.  Circuit operating voltage: 3.3V@200mA
  4. Charging current: 50mA/100mA
  5. Input voltage (VIN): 5V

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%632.56 (Including tax)
11 - 2010%599.27 (Including tax)
21 - 4015%565.97 (Including tax)
41 - 10020%532.68 (Including tax)
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)
SKU: rz24310348

Product details

Seeed Studio XIAO ESP32C3 featuring ESP32C3 carries a complete Wi-Fi system along with Bluetooth Low Energy function. With its exquisite design and WiFi+BT ability, it’s perfect for various IoT controlling scenarios and complex carriable applications.The board equips highly-integrated ESP32-C3 SoC. The chip has been installed with a complete 2.4GHz Wi-Fi subsystem which means it supports Station mode, SoftAP mode, SoftAP & Station mode, and promiscuous mode for multiple Wi-Fi applications. It works under an ultra-low power state, also supporting features of Bluetooth 5 and Bluetooth mesh. There are 400 KB SRAM & 4 MB Flash on the chip, allowing for more programming space, and bringing more possibilities to the IoT control scenarios.


Features:

  1. Outstanding RF performance,Powerful ESP32-C3 SoC and U.FL antenna provided that supports WiFi/Bluetooth connection over 100m.
  2. Thumb-size Design, 21 x 17.5mm overall dimension, portable and lightweight.
  3. Low power consumption, Lowest as 44 μA (deep sleep mode), with 4 working modes available.
  4. Onboard battery charge IC, Supports battery charging, great for various wearable scenarios and wireless IoT applications.
  5. Ready for productization,  Single-sided components design, easily integrated into other boards and Seeed provides Fusion Service for rapid production.

Package Includes:

1 x Seeed Studio XIAO ESP32C3
1 x Antenna



Additional information

Processor

1. ESP32-C3 SoC 2. RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz

Wireless

1. Complete 2.4GHz Wi-Fi subsystem 2. Bluetooth 5.0/ Bluetooth mesh

On-chip Memory

400KB SRAM & 4MB Flash

Interface

1x UART, 1x IIC, 1x IIS, 1x SPI, 11x GPIO(PWM), 4x ADC 1x Reset button, 1x Boot button

Circuit operating voltage

3.3V@200mA

Charging current

50mA/100mA

Input voltage (VIN)

5V

Deep Sleep Power Consumption (μA)

>44

Active Model

<75 mA

Modem-sleep Model (mA)

<25

Light-sleep Model (mA)

<4
