SeeedStudio Grove RJ45 Adapter ₹834.71 – ₹948.55 (Including tax)
Back to products
SKU 1153144
Matek Mateksys FC F411-WTE Compact Flight Controller ₹6,490.26 – ₹7,375.29 (Including tax)

SeeedStudio Grove 2Channel Inductive Sensor (LDC1612)

₹2,169.85 (Including tax)

  1. Supply Voltage 3.3V / 5V
  2. Junction Temperature -55～150℃
  3. Supported Sensor Frequency Range 1kHz~10MHz
  4. I2C address 0x2B(default)/0x2A(configurable)
  5. Gross Weight 12g



Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%₹2,061.35 (Including tax)
11 - 208%₹1,996.26 (Including tax)
21 - 4010%₹1,952.87 (Including tax)
41 - 10012%₹1,909.47 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare
Add to wishlist
15 People watching this product now!
SKU: rz24318234 Category:
Description

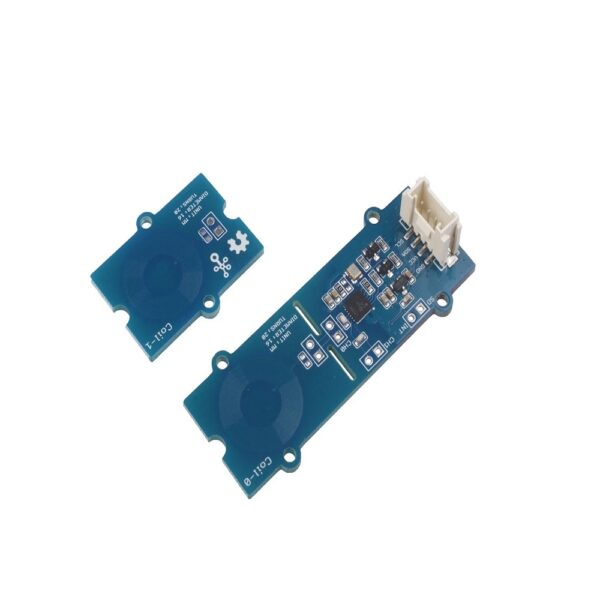

The Grove – 2-Channel Inductive Sensor is based on Texas Instruments(TI) LDC1612, a 28-bit inductance to digital converter(LDC) for inductive sensing solutions. With multiple channels and support for remote sensing, the LDC1612 enables the performance and reliability benefits of inductive sensing to be realized at minimal cost and power. Inductance is an effect caused by the magnetic field of a current-carrying conductor acting back on the conductor. So by sensing the inductance, this sensor can detect the proximity of conductors especially metal nearby.

Getting Started with SeeedStudio Grove 2 Channel Inductive Sensor (LDC1612)

Pinout:

pinout 3





pinout back

Features:

  1. 2 Channels With Matched Sensor Drive
  2. Easy-to-Use: Minimal Configuration Required
  3. Multiple Channels Support Environmental and Aging Compensation
  4. Remote Sensor Position of >20 cm Supports Operation In Harsh Environments

Application:

  1. Knobs in consumer, appliances, and automotive
  2. Linear and rotational encoders
  3. Buttons in home electronics, wearables, manufacturing, and automotive
  4. Keypads in manufacturing and appliances
  5. Slider buttons in consumer products
  6. Metal detection in industrial and automotive
  7. POS and EPOS
  8. Flowmeters in consumer and appliances

Package Includes :

1 x SeeedStudio Grove 2 Channel Inductive Sensor (LDC1612)

Additional information
Operating Voltage(V)

3.3V / 5V

Frequency(Hz)

Range 1kHz~10MHz

Detecting Range

15mm

Junction Temperature

-55～150℃

Interface

I2C
