Single Channel Capacitive Touch TP223 Sensor Switch Module

33.93 (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%32.23 (Including tax)
11 - 208%31.21 (Including tax)
21 - 4010%30.54 (Including tax)
41 - 10012%29.86 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

12 People watching this product now!
Description

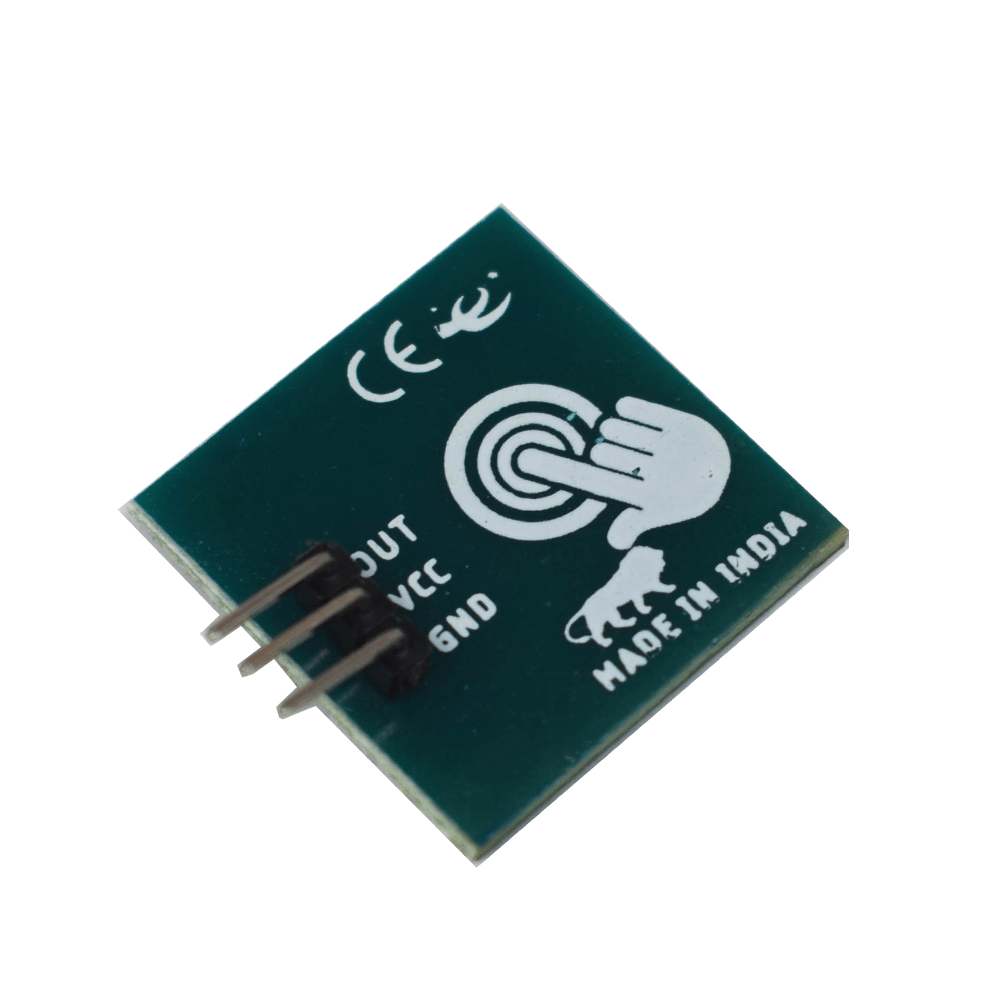

This TTP223 capacitor-type single-channel touch sensor has 3 ports, i.e., GND, VCC and Out. GND is connected to the ground of the circuit, while VCC is connected to the positive end of the power source. Out is connected to one end of the load that has to be controlled using the touch sensor. In this sensor, there is an electrode which acts as a plate of the capacitor and forms a parasitic capacitor. When a conductive load is brought closer to the touchpad, it acts as the other plate of the capacitor, and a change in capacitance occurs. This change in capacitance is detected by the measuring circuit connected to it, which generates a trigger signal, and the switch is activated.

Specification
TypeTouch Sensor Switch
ModelTTP223
Input Voltage2-5V
Maximum Response Time60mS in fast mode, ~220mS at low power mode
Capacitance0~50pF
No. of Channel01
No. of Pin03
Dimensions24mm x 24mm.
MakeMade in India
Country of OriginChina
