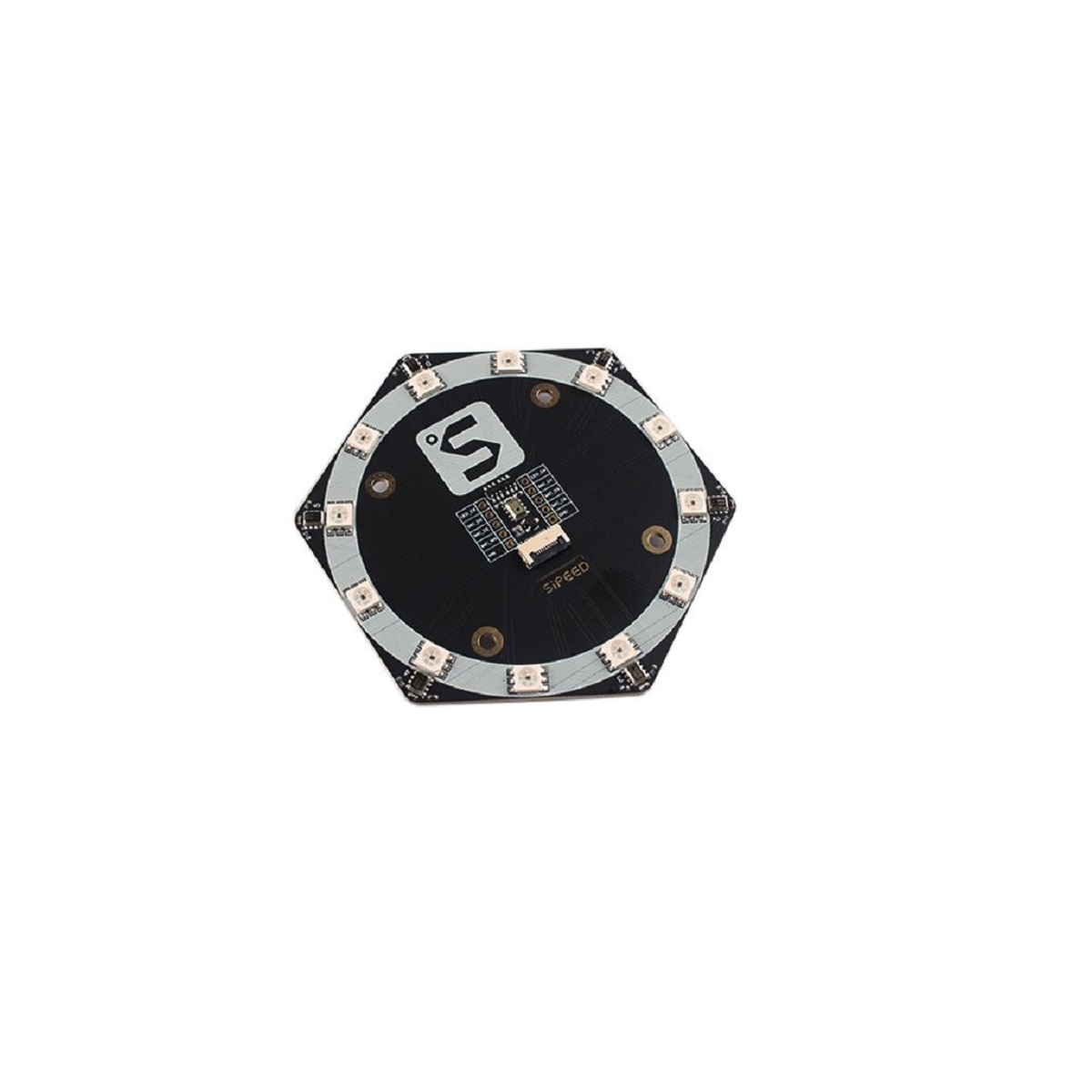

Sipeed MAIX R6+1 Microphone Array

₹2,305.55 (Including tax)

Brand: Seeed Studio
Supply voltage: 3.3V +-0.2V
Sound Pressure Level: 140 dB SPL
Sensitivity: -26(dB, dBFS @1kHz 1Pa)
6 MEMS microphones: MSM261S4030H0
Supply current: >750mA(Full brightness)
Range of working temperature: -30 ~ 85C

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹2,190.26 (Including tax)
11 - 20	8%	₹2,121.10 (Including tax)
21 - 40	10%	₹2,074.99 (Including tax)
41 - 100	12%	₹2,028.87 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

12 People watching this product now!

SKU: rz24318434 Category: Audio Module/ Amplifier

Description

AI is pervasive today, from consumer to enterprise applications. With the explosive growth of connected devices, combined with a demand for privacy/confidentiality, low latency and bandwidth constraints, AI models trained in the cloud increasingly need to be run at the edge. MAIX is Sipeed’s purpose-built module designed to run AI at the edge, we called it AIoT. It delivers high performance in a small physical and power footprint, enabling the deployment of high-accuracy AI at the edge, and the competitive price make it possible embed to any IoT devices. As you see, Sipeed MAIX is quite like Google edge TPU, but it act as master controller, not an accelerator like edge TPU, so it is more low cost and low power than AP+edge TPU solution.

Getting Started With Sipeed MAIX R6+1 Microphone Array

Features:

6+1 MEMS microphones (MSM261S4030H0):
- Sound pressure level: 140 dB SPL
- Sensitivity: -26(dB, dBFS @ 1kHz 1Pa)
- Signal to noise ratio: 57 dB (20kHz bandwidth, A-weighted)
- THD <1％ (100dB SPL @ 1kHz S = Nom, Rload> 2k)
- Clock frequency:
  - 1.0-4.0Mhz (normal mode)
  - 150-800khz (low power mode)
12 RGB LEDs (SK9822):
- Viewing angle: 120 degree
- Dual-line synchronous
- RGB three-color LED output control, 8-bit (256 level) color levels, 5-bit (32 level) brightness adjustment
- Current: 20mA per color for each LED, 60mA at full color and full brightness

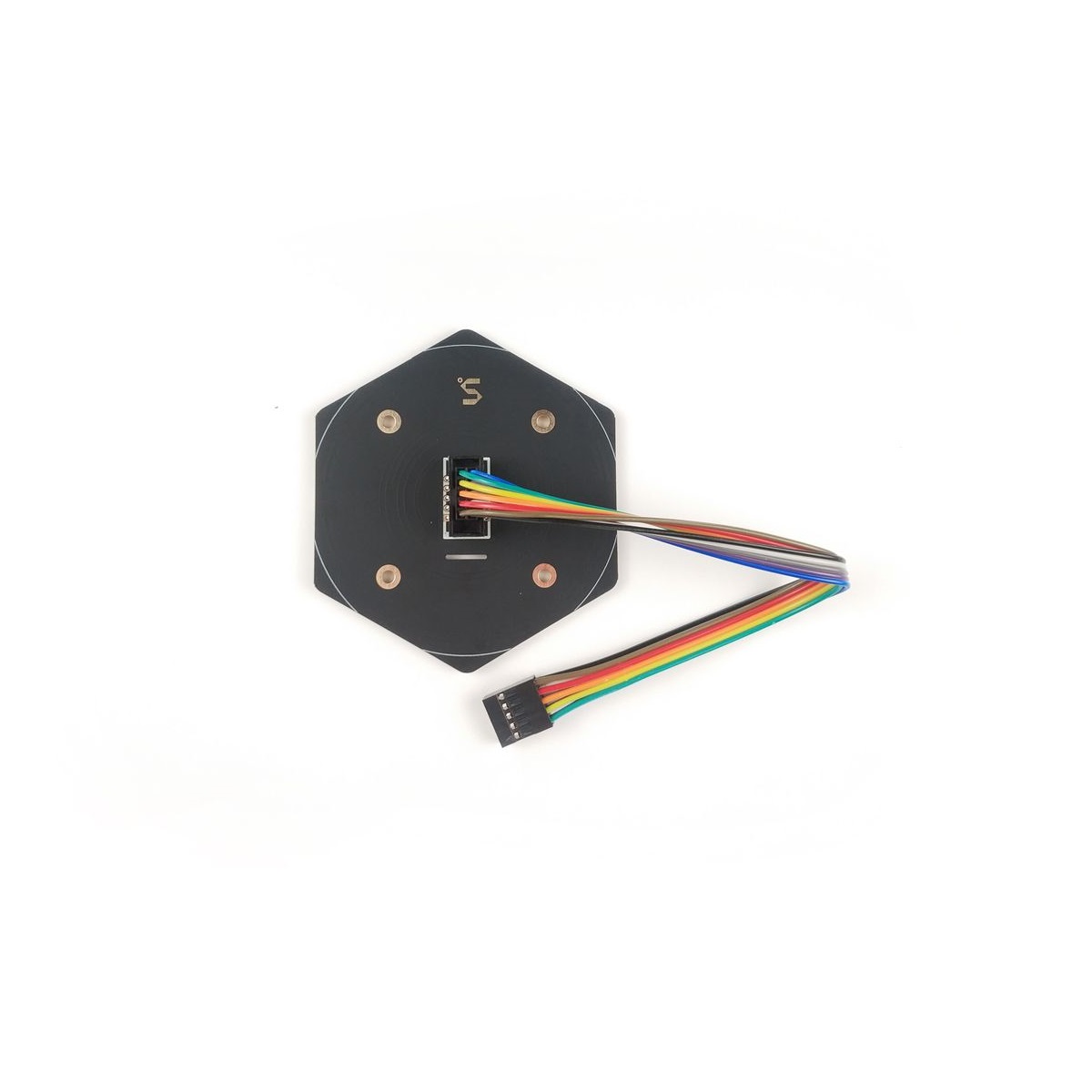

Connector : Support 2*5P 2.54mm header and 10P 0.5mm FPC connector
Signal to noise ratio : 57dB(20kHz bandwidth, A-weighted)

Application:

Sound source orientation
Beamforming
Speech recognition

Package Includes:

1 x Sipeed MAIX R6+1 Microphone Array

Additional information

Brand	Seeed Studio
Supply voltage	3.3V +-0.2V
Supply current	>750mA(Full brightness)
Sound Pressure Level	140 dB SPL
Signal to noise ratio	57 dB (20kHz bandwidth , A-weighted) THD2k )
Sensitivity	-26(dB , dBFS @1kHz 1Pa)
Clock frequency	1.0-4.0Mhz(normal mode) 150-800khz(low power mode)
Working temperature	-30 ~ 85C
