Product details

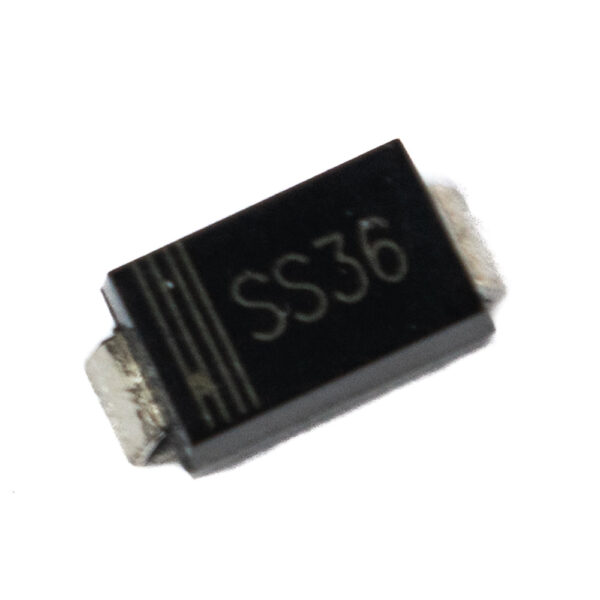

The SS36 Schottky diode in the DO-214AC package makes it perfect for automated placement. SS36 has overvoltage protection, minimal power losses, and high efficiency. SS36 is also known for its low forward voltage drop and good surge capability. These are widely utilised in low voltage, high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Features
- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Low forward voltage drop
- High surge capability
Specifications
| Model | SS36 |
| Max. Repetitive Peak Reverse Voltage | 60V |
| Max. RMS Voltage | 28V |
| Maximum Average Forward Rectified Current | 3A |
| Rate of Change of Voltage (dv/dt) | 10000V/µs |
| Operating Junction Temperature | -55°C to 150°C |
| Package | DO-214AC |
| Quantity | 2000 Pieces |
| Country of Origin | China |
