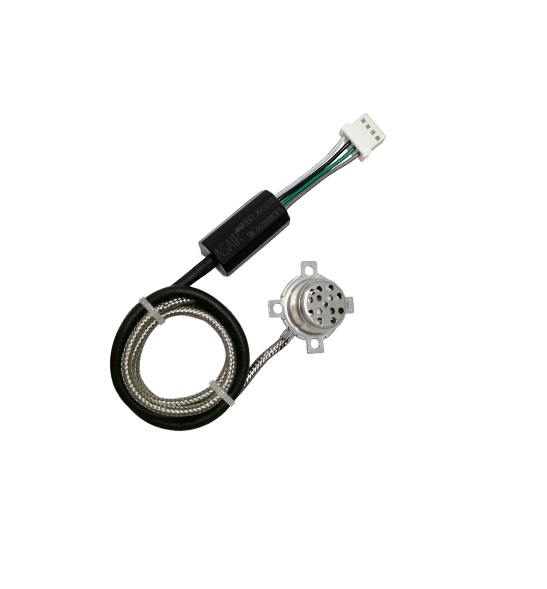

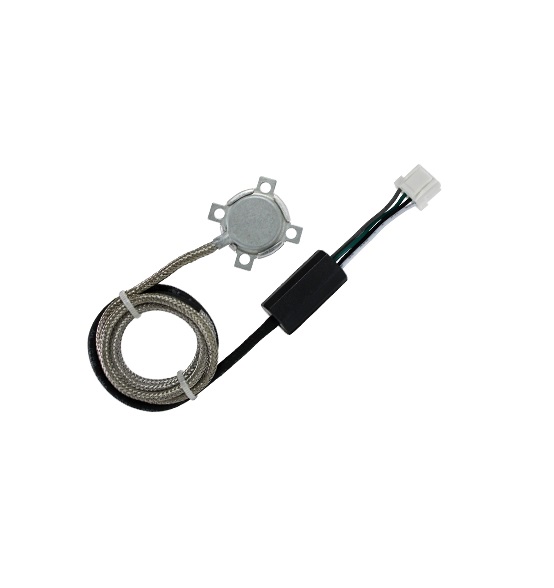

Steam Sensor Model AHS01IB

15 People watching this product now!

SKU: rz24317154 Category: Gas and Dust Sensor

Description

AHS01IB is a high response speed, high-temperature resistance, high precision, fully calibrated absolute humidity sensor. Using advanced modern production technology to ensure that the product has high reliability and excellent long-term stability. The sensor includes a humidity detection sensor connected to a high-performance CMOS microprocessor with integrated 24-bit AD acquisition. The product has the advantages of excellent quality, super-fast response, strong anti-interference ability and high-cost performance. The machine is highly integrated, very suitable for high quality, mass production requirements is an ideal choice for users, easy to partner with manufacturers with OEM applications.

Features:

5V power supply
Operating temperature range -5 ~ +200℃ (humidity detection only)
Complete calibration
I2C digital interface communication
Low power consumption :120mW(highest)
No zero drift
Widely used in a microwave oven, oven, dryer and other high temperature and high humidity environment
Super long service life
High resistance to pollution
Little lag error

Package Includes:

1 x Steam Sensor Model AHS01IB

Additional information

Model No.	AHS01IB
Product Type	Steam Sensor
Supply voltage	5 (V)
Operating range (°C)	-5~150℃
Sampling rate (ms)	500
Typical accuracy (% RH)	±10%
Output characteristic	2300 ± 100（+25℃ , 7g/m³～+50℃ , 50g/m³）
Interface	I²C
