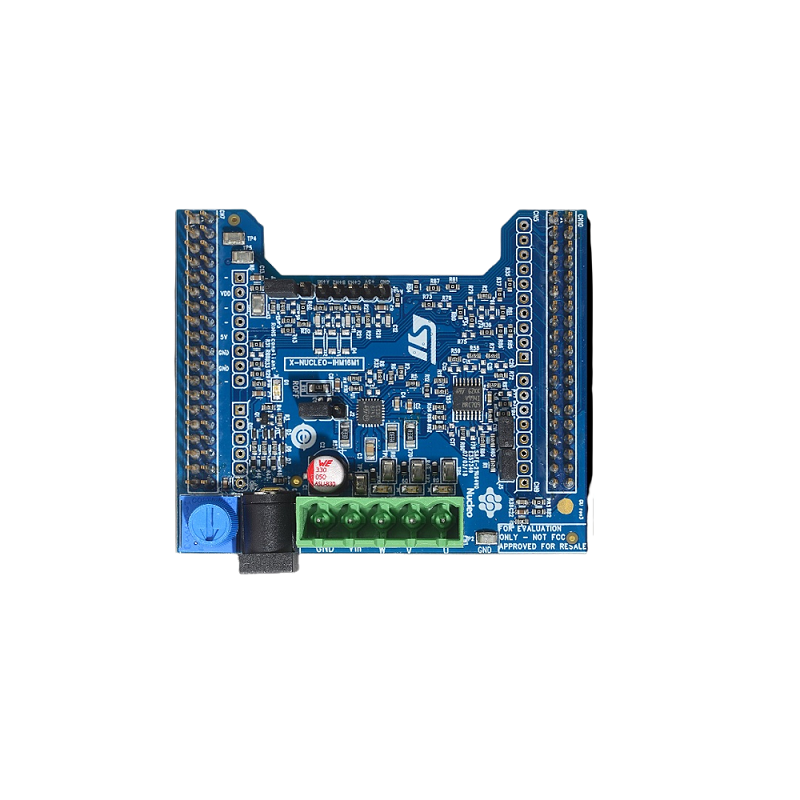

STMICROELECTRONICS Development Board, STSPIN830 BLDC Motor Driver, 3-Phase, Arduino, ST Morpho, For STM32 Nucleo

2,441.25 (Including tax)

  1. Product: STMICROELECTRONICS Development Board, STSPIN830 BLDC Motor Driver, 3-Phase, Arduino, ST Morpho, For STM32 Nucleo
  2. Operative voltage from 7 to 45V
  3. Output current up to 1.5Arms
  4. Supporting single shunt and three-shunt sensing
  5. Standby mode
  6. Flexible direct driving settable between 3 or 6 PWM inputs

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%2,319.19 (Including tax)
11 - 208%2,245.94 (Including tax)
21 - 4010%2,197.13 (Including tax)
41 - 10012%2,148.29 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

10 People watching this product now!
SKU: rz2436045 Category:
Description

Three-phase brushless DC motor driver expansion board based on STSPIN830 for STM32 Nucleo. It represents an affordable, easy to use solution for driving brushless motors in your STM32 Nucleo project, implementing single and three-shunt current sensing. The STSPIN830 embeds a PWM current limiter with adjustable threshold together with a full set of protections. It is compatible with the Arduino and ST morpho connectors, so it can be plugged to an STM32 Nucleo development board and stacked with additional STM32 Nucleo expansion boards.

Note: for more technical details go through Datasheet in the attachment section


Features:

  1. Current limiter with adjustable reference
  2. Overcurrent, short-circuit and interlocking protections
  3. Thermal shutdown and undervoltage lockout
  4. BEMF sensing circuitry, bus voltage and PCB temperature sensing
  5. Input connector for Hall effect-based sensors and encoder

Package Includes:

1 x STMICROELECTRONICS Development Board, STSPIN830 BLDC Motor Driver, 3-Phase, Arduino, ST Morpho, For STM32 Nucleo

Additional information
Input Voltage Range

7 – 45V

Silicon Core Number

STSPIN830

Silicon Manufacturer

STMicroelectronics

Max. Output Current (A)

1.5Arms

For Use With

STMicroelectronics STM32 Nucleo Development Board
