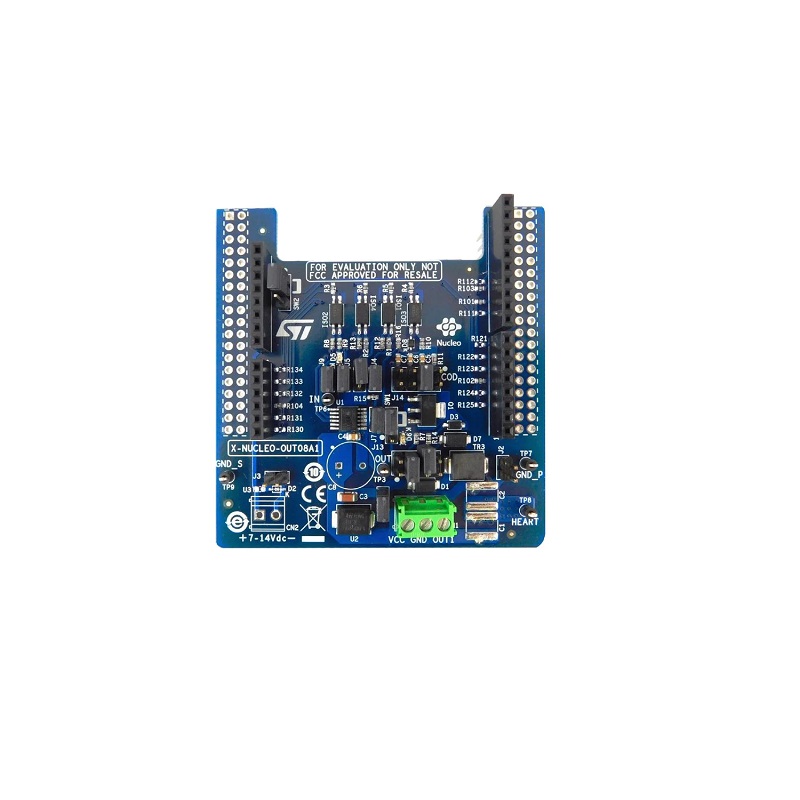

STMICROELECTRONICS Expansion Board, IPS160HF, STM32 Nucleo Development Board

12 People watching this product now!

SKU: rz2435932 Category: ARM Microcontroller

Description

Industrial digital output expansion board for STM32 Nucleo provides a powerful and flexible evaluation and development environment for 2A (typ) digital output modules, featuring the safe driving and smart diagnostic capabilities of the IPS160HF single high-side switch. The X-NUCLEO-OUT08A1 interfaces with the microcontroller on the STM32 Nucleo via 3KV optocouplers driven by GPIO pins and Arduino™ UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors. The expansion board should be connected to either a NUCLEO-F401RE or NUCLEO-G431RB development board and can also be stacked with another XNUCLEO-OUT08A1 or X-NUCLEO-OUT10A1. Two X-NUCLEO-OUT08A1 expansion boards allows you to evaluate a dual channel digital output module with 2A (typ.) capability each, or a 2A (typ.) single channel safety digital output module. In the second scenario, the first shield output is connected to the supply of the second one.

Attention: For additional technical specifications, please refer to the accompanying datasheet in the attachment section.

Features & Specifications:

Based on IPS160HF single high-side switch, which features:
– Operation up to 60 V/2.4 A
– Low power dissipation (RON(MAX) = 120 mΩ)
– Fast decay for inductive loads
– Open load detection and diagnostics
– Overload and overheating protections with thermal shut-down and cut-off
– PowerSSO-12L package
Application board operating range: 12 to 33 V/0 to 2.4 A
Extended voltage operating range (J1 open) up to 60 V
Status and diagnostic LEDs
3 kV galvanic isolation
Supply rail reverse polarity protection
Ready for Safety Digital Output Architecture
EMC compliance with IEC61000-4-2, IEC61000-4-3, IEC61000-4-5
Wide application development potential in STM32 Nucleo development
environment
Equipped with Arduino™ UNO R3 connectors

Package Includes:

1 x STMICROELECTRONICS Expansion Board, IPS160HF, STM32 Nucleo Development Board
