STMICROELECTRONICS Expansion Board, Ranging/Gesture Detection, VL53L0X, For STM32 Nucleo, Arduino Compatible

5,698.05 (Including tax)

  1. Product: STMicroelectronics Expansion Board, Ranging/Gesture Detection, VL53L0X, For STM32 Nucleo, Arduino Compatible
  2. VL53L0X ranging and gesture detection sensor module.
  3. Accurate absolute ranging distance, independent of the reflectance of the target.
  4. 4-digit display, displaying the distance of a target from the ranging sensor.



Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%5,413.15 (Including tax)
11 - 208%5,242.20 (Including tax)
21 - 4010%5,128.25 (Including tax)
41 - 10012%5,014.27 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

10 People watching this product now!
SKU: rz2436028 Category:
Description

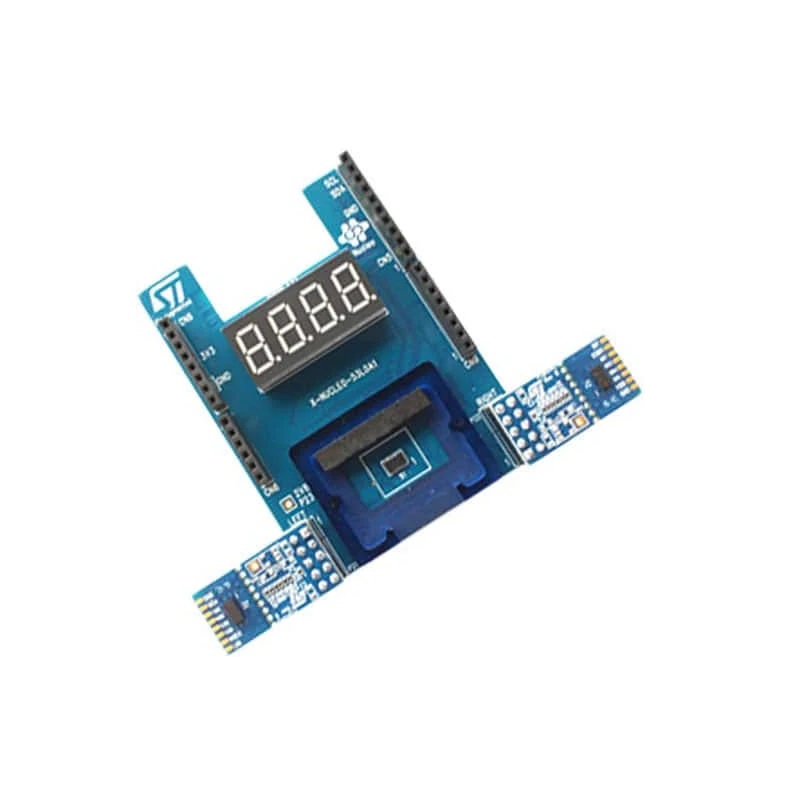

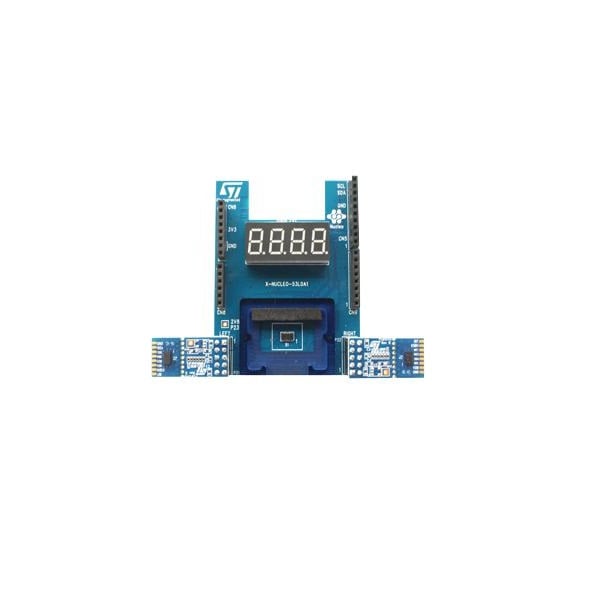

The X-NUCLEO-53L0A1 expansion board features the VL53L0X ranging and gesture detection sensor, based on ST’s FlightSense™, Time-of-Flight technology. It is an evaluation board that provides an introduction to the ranging and gesture detection capabilities of the VL53L0X module. To allow the user to validate the VL53L0X in an environment as close as possible to its final application, the X-NUCLEO 53L0A1 expansion board is delivered with a cover glass holder in which 3 different spacers of 0.25, 0.5, and 1mm height can be fitted below the cover glass in order to simulate various air gaps.
Attention: For additional technical specifications, please refer to the accompanying datasheet in the attachment section.

Features:

  1. VL53L0X ranging and gesture detection sensor module.
  2. Accurate absolute ranging distance, independent of the reflectance of the target.
  3. 4-digit display, displaying the distance of a target from the ranging sensor.
  4.  A basic gesture recognition application can be developed with a VL53L0X module.
  5. 0.25, 0.5, and 1mm spacers to simulate air gaps
  6.  Cover glass
  7.  Two VL53L0X satellite boards
  8.  Two 10-pin connectors for the VL53L0X satellite
    boards

Package Includes:

1 x STMicroelectronics Expansion Board, Ranging/Gesture Detection, VL53L0X, For STM32 Nucleo, Arduino Compatible

Additional information
Model

X-NUCLEO-53L0A1

Silicon Manufacturer

STMicroelectronics

Silicon Core Number

VL53L0X

For Use With

STM32 Nucleo Boards
