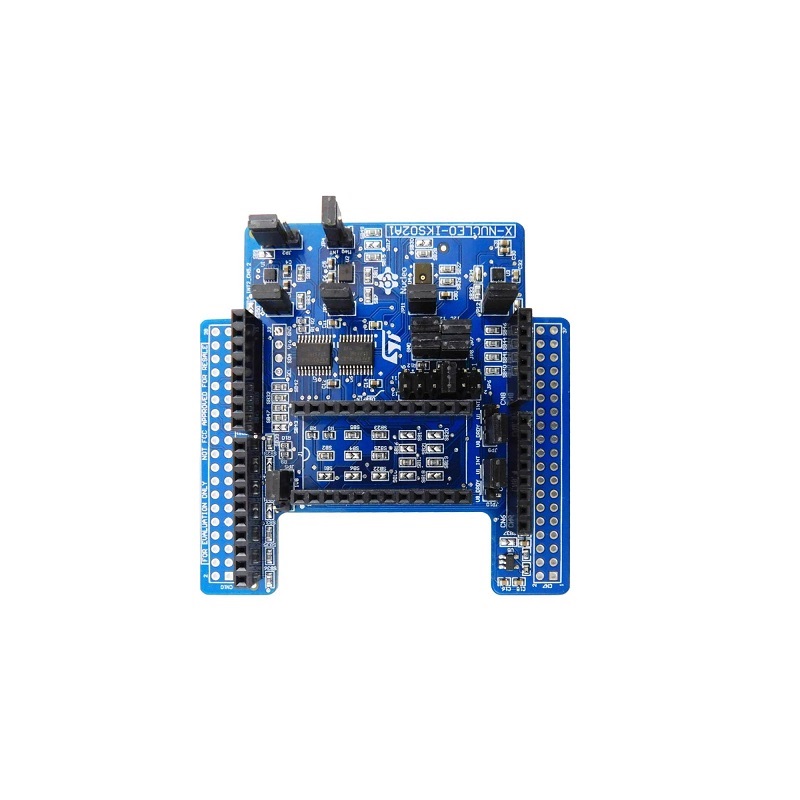

STMICROELECTRONICS EXPANSION BOARD X-NUCLEO-IKS02A1 STM32 NUCLEO DEV BOARD

20 People watching this product now!

SKU: rz2435904 Category: ARM Microcontroller

Description

The X-NUCLEO-IKS02A1 industrial motion MEMS sensor expansion board is compatible with the Arduino UNO R3 connector layout. It embeds the ISM330DHCX 3-axis accelerometer and 3-axis gyroscope, the IIS2MDC 3-axis magnetometer, the IIS2DLPC 3-axis accelerometer, the IMP34DT05
digital microphone. The X-NUCLEO-IKS02A1 interfaces with the STM32 microcontroller via the I²C pin, with the possibility of changing the default I²C port

Attention: For additional technical specifications, please refer to the accompanying datasheet in the attachment section.

Specifications and Features:

ISM330DHCX MEMS 3D accelerometer (±2/±4/±8/±16 g) plus 3D gyroscope (±125/±250/±500/±1000/±2000 dps)
IIS2MDC MEMS 3D magnetometer (±50 gauss)
IIS2DLPC MEMS 3D accelerometer low power (±2/±4/±8/±16 g)
IMP34DT05 MEMS digital omnidirectional microphone (-26 dBFS, ±3 dB sensitivity)
DIL 24-pin socket available for additional MEMS adapters and other sensors
Free comprehensive development firmware library and samples for all sensors compatible with STM32Cube firmware
Available I²C sensor hub features on ISM330DHCX
Compatible with STM32 Nucleo boards
Equipped with Arduino UNO R3 connector

Package Includes:

1 x STMICROELECTRONICS EXPANSION BOARD X-NUCLEO-IKS02A1 STM32 NUCLEO DEV BOARD

Additional information

Model	X-NUCLEO-IKS02A1
Silicon Core Number	ISM330DHCX , IIS2MDC , IIS2DLPC , IMP34DT05
Silicon Manufacturer	STMicroelectronics
For Use With	STM32 Nucleo Development Boards
Magnetometer	IIS2MDC 3-axis
Accelerometer	IIS2DLPC 3-axis
