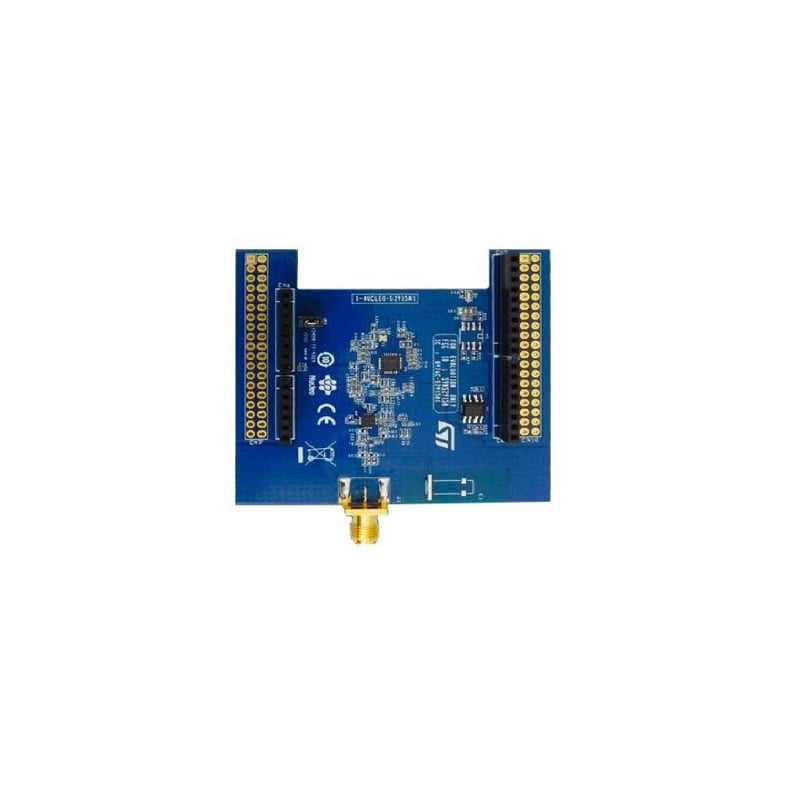

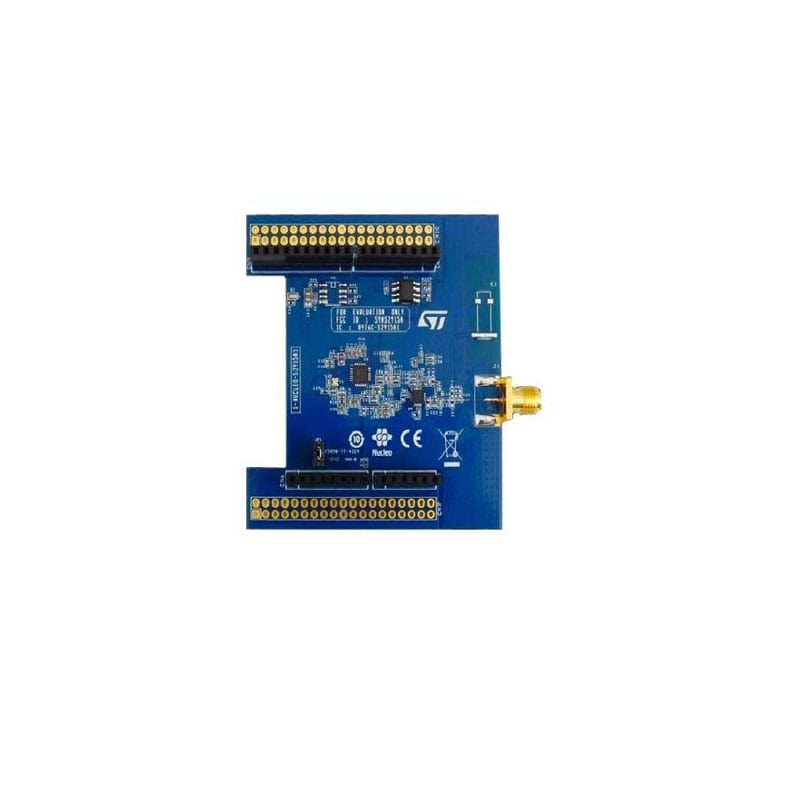

STMICROELECTRONICS SUB-1 GHZ 915 MHZ RF EXPANSION BOARD

15 People watching this product now!

SKU: rz2435811 Category: ARM Microcontroller

Description

Sub-1 GHz 915MHz RF expansion board based on S2-LP radio for STM32 Nucleo. The expansion board is compatible with ST morpho andArduino UNO R3 connectors. The X-NUCLEO-S2915A1 interfaces with the STM32 Nucleo microcontroller via SPI connections and GPIO pins. Users can change some of the GPIOs by mounting or removing the resistor. It features IEEE 802.15.4g hardware packet support with whitening, FEC, CRC and dual SYNC word detection.

Note: for more technical details go through Datasheet in the attachment section

Features:

Programmable RF output power up to +27dBm
2-FSK, 2-GFSK, 4-FSK, 4-GFSK, OOK and ASK modulation schemes
RX and TX 128byte FIFO buffers
Support to wireless M-Bus
Excellent performance of receiver sensitivity (up to -130dBm)

Package Includes:

1 x STMICROELECTRONICS SUB-1 GHZ 915 MHZ RF EXPANSION BOARD

Additional information

Modulation Type	2-FSK , 2-GFSK , 4-FSK , 4-GFSK , OOK and ASK
Air data rate	0.1 to 500 kbps
Ultra-low power consumption	7 mA RX and 10 mA TX at +10 dBm
Silicon Manufacturer	STMicroelectronics
Silicon Core Number	S2-LP
For Use With	STMicroelectronics STM32 Nucleo Development Boards
