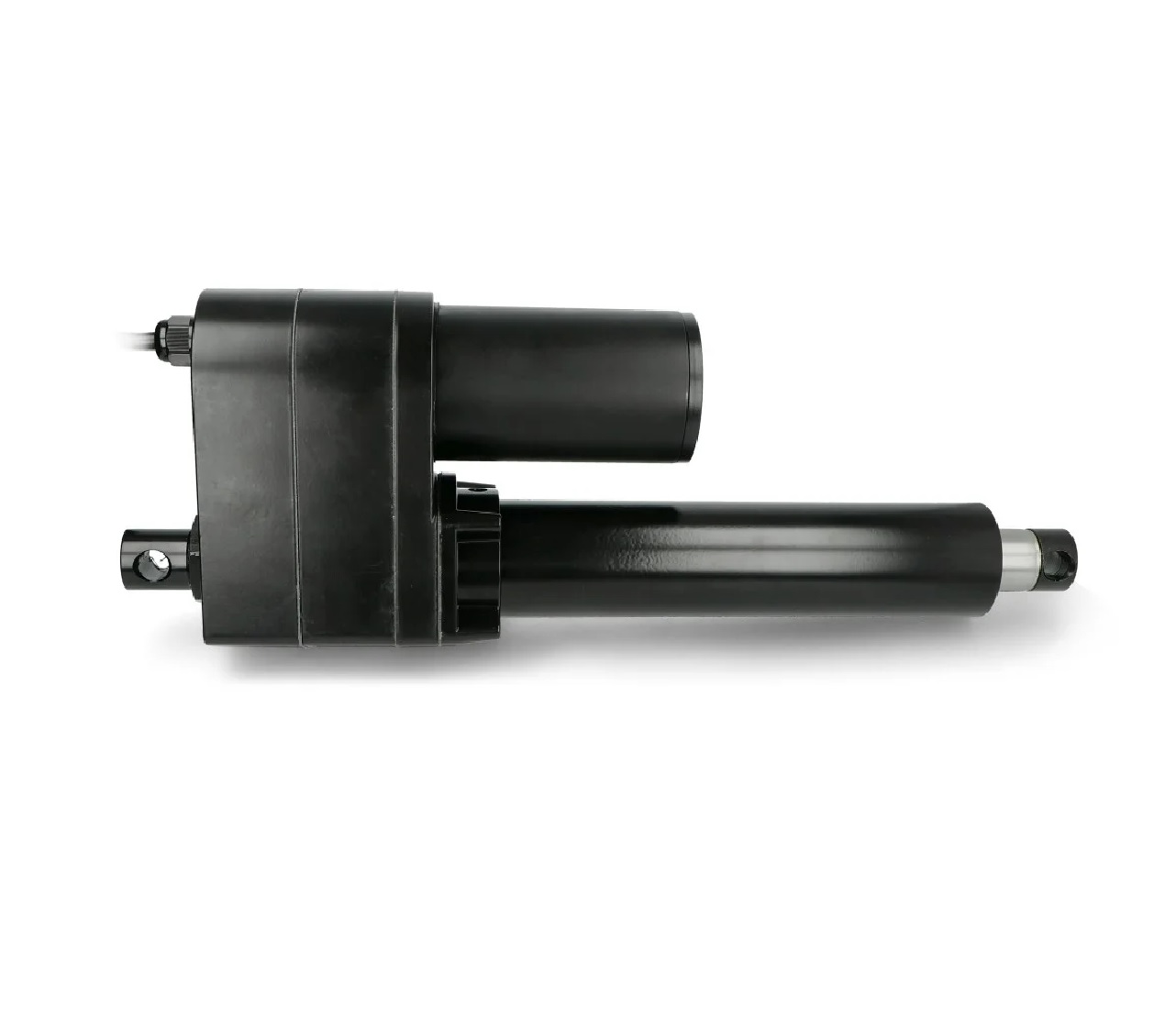

Stroke Length 100MM 5MM/S 8000N DC12V Electric Putter Electric Linear Actuator Putter for Doors /Windows

₹29,178.22 (Including tax)

Motor type: permanent magnet dc motor drive
Rated voltage :12VDC
Maximum thrust/pull: 800N
Self-locking force: 200KG
Speed: 5 mm/s
Effective stroke :100mm

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹27,719.30 (Including tax)
11 - 20	8%	₹26,843.96 (Including tax)
21 - 40	10%	₹26,260.39 (Including tax)
41 - 100	12%	₹25,676.82 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

14 People watching this product now!

SKU: rz24311565 Category: Linear Motor/Actuator

Description

Electric putter, also known as push rod motor, electric cylinder and linear actuator.
The electric putter is an electric drive that converts the motor’s rotational motion into a straight reciprocating motion of the push rod.
Can be used in a variety of simple or complex process as the implementation of mechanical use, in order to achieve long-range control, centralized control or automatic control.
Main use: electric bed, electric sofa, electric stand lift rod, industrial electric lift system, camera frame, video machine, wedding system.
How it works:After the motor is slowed by the gear, drive a pair of screw nuts. The motor rotation into a linear motion, the use of motor reversal to complete the putter action. Such as through a variety of lever, rocker or connecting rod and other institutions to complete the rotation, shake and other complex movements.
Built-in stroke switch,and low noise design,noise level is less than 42d.

Applications:

Tilt adjustment of solar panels in photovoltaic installations
Element of precision and industrial automation systems
Opening and closing of industrial valves
Home automation – elements tilt windows and door sashes
Agricultural machinery components

Features:

Built-in stroke switch
Low noise design,noise level is less than 42dB
Electric putter, also known as push rod motor, electric cylinder and linear actuator.
The electric putter is an electric drive that converts the motor’s rotational motion into a straight reciprocating motion of the push rod.
Can be used in a variety of simple or complex process as the implementation of mechanical use, in order to achieve long-range control, centralized control or automatic control.
Main use: electric bed, electric sofa, electric stand lift rod, industrial electric lift system, camera frame, video machine, wedding system.

Specifications:

Motor type: permanent magnet dc motor drive
Rated voltage :12VDC
Maximum thrust/pull: 800N
Self-locking force: 200KG
Speed: 5 mm/s
Effective stroke :100mm
Standard protection level: IP54
Base noise design, noise level below 42dB
Ambient temperature:-26 to 50℃

Packages Includes:

1 x DC12V Electric Putter Electric Linear Actuator
