T-Motor U7-V2.0 490KV Drone Motor

SKU: rz2436996
In Stock

9,122.88

  1. KV Rating: 490
  2. Configuration: 12Nl4P
  3. Shaft   Diameter: 4mm
  4. Motor Dimension(Dia.*Len): 60.7×39.5mm
  5. Weight: 258g







In Stock
This item is low in stock.

Item(s) left: 3

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

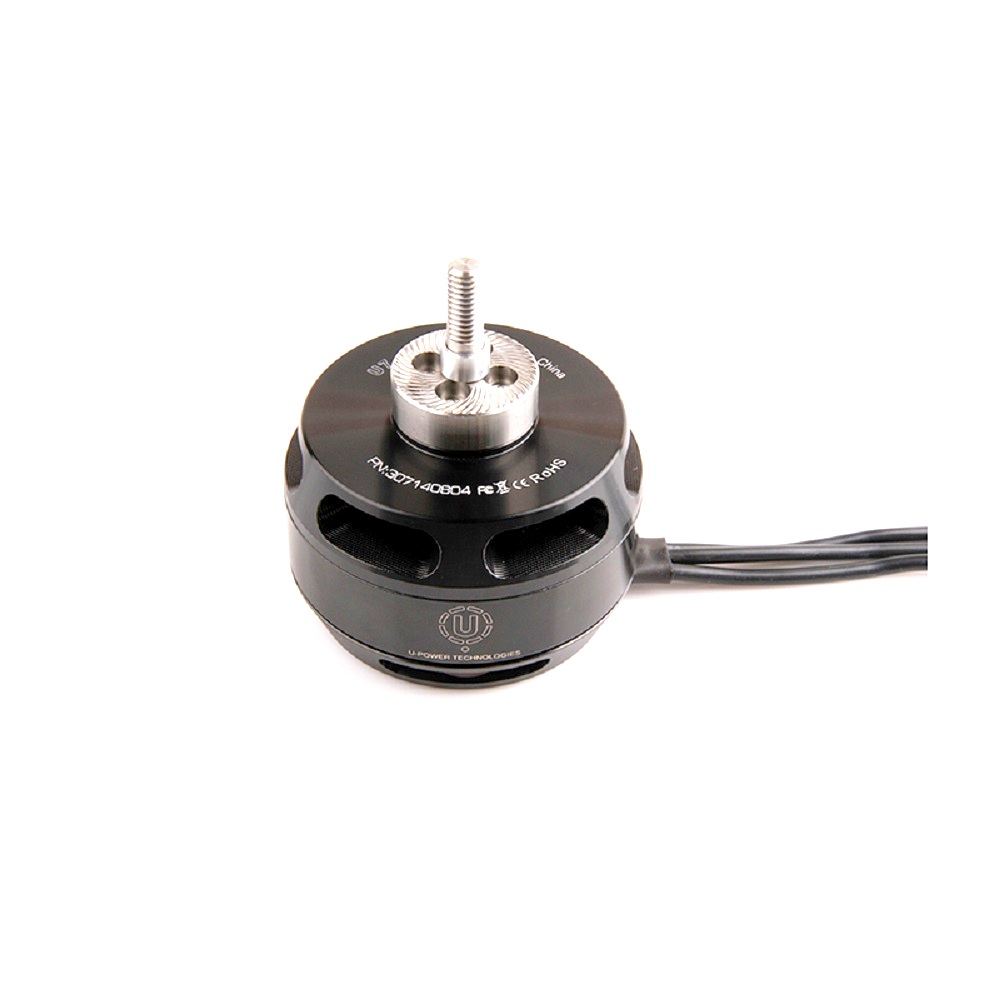

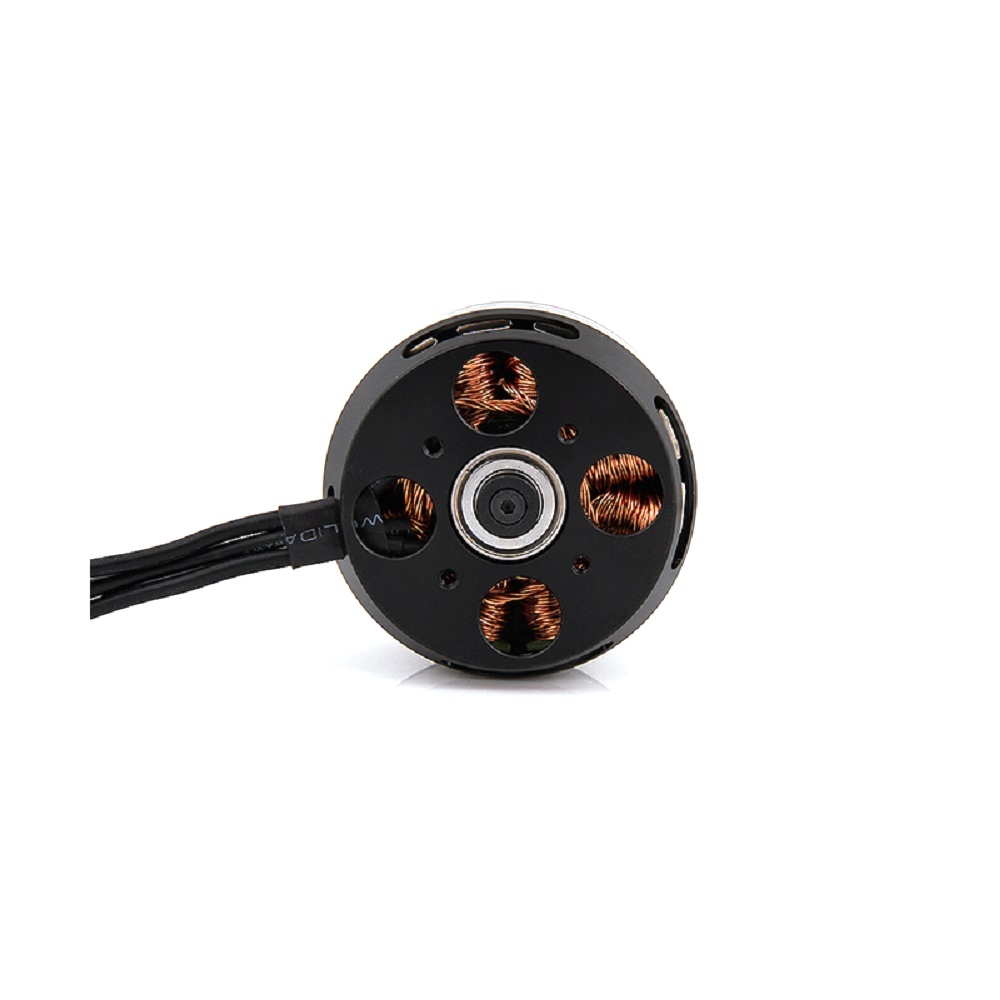

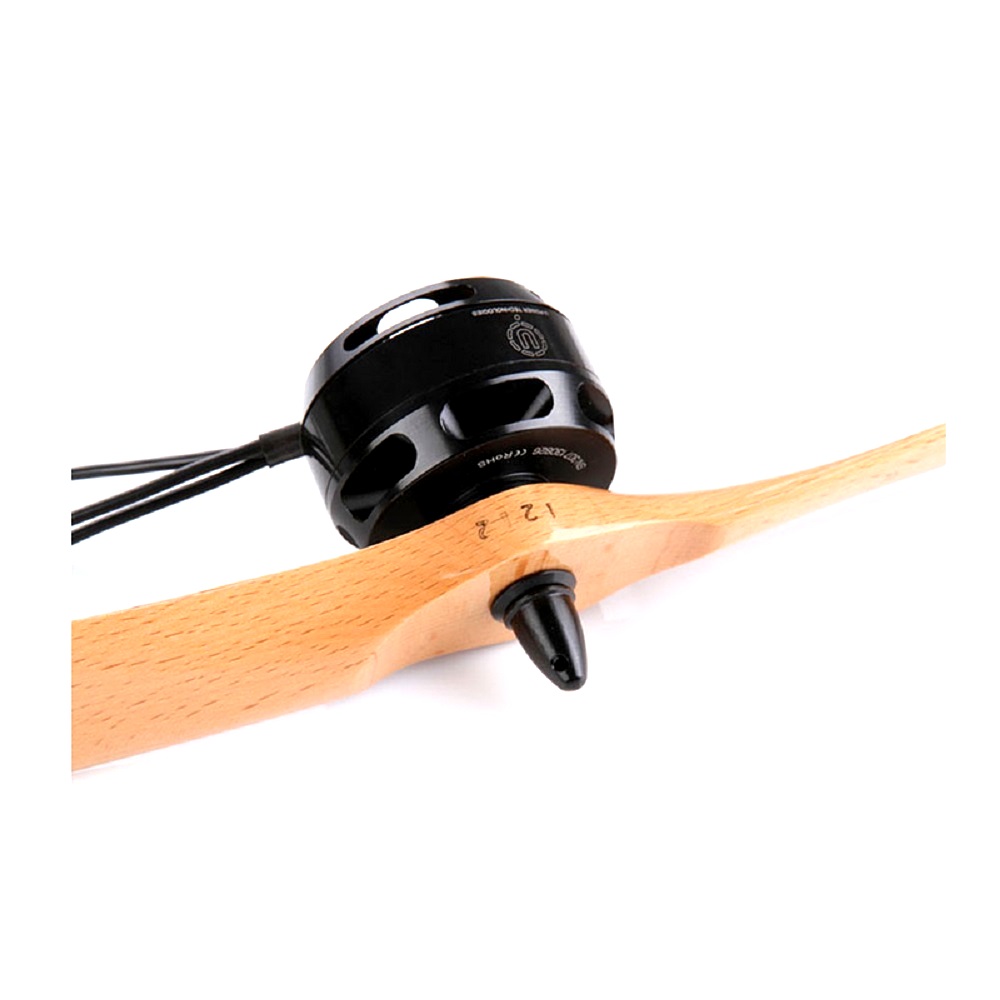

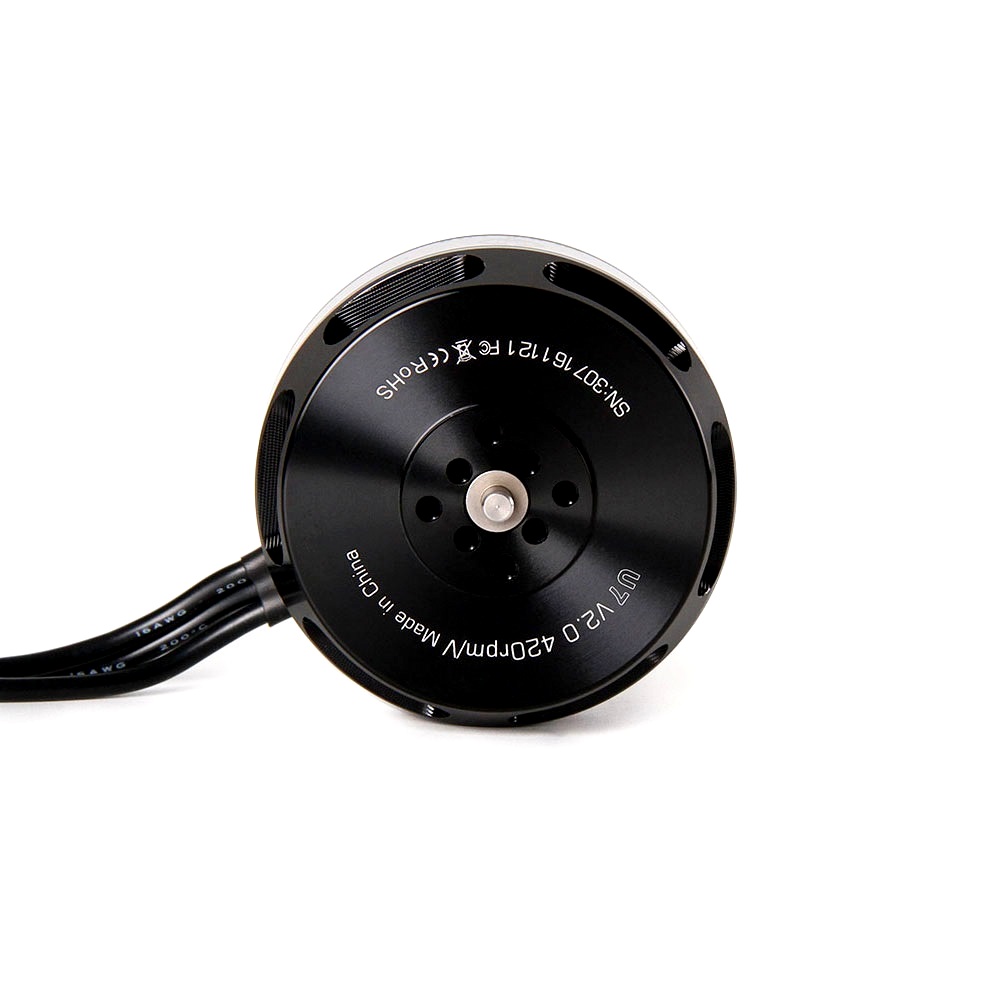

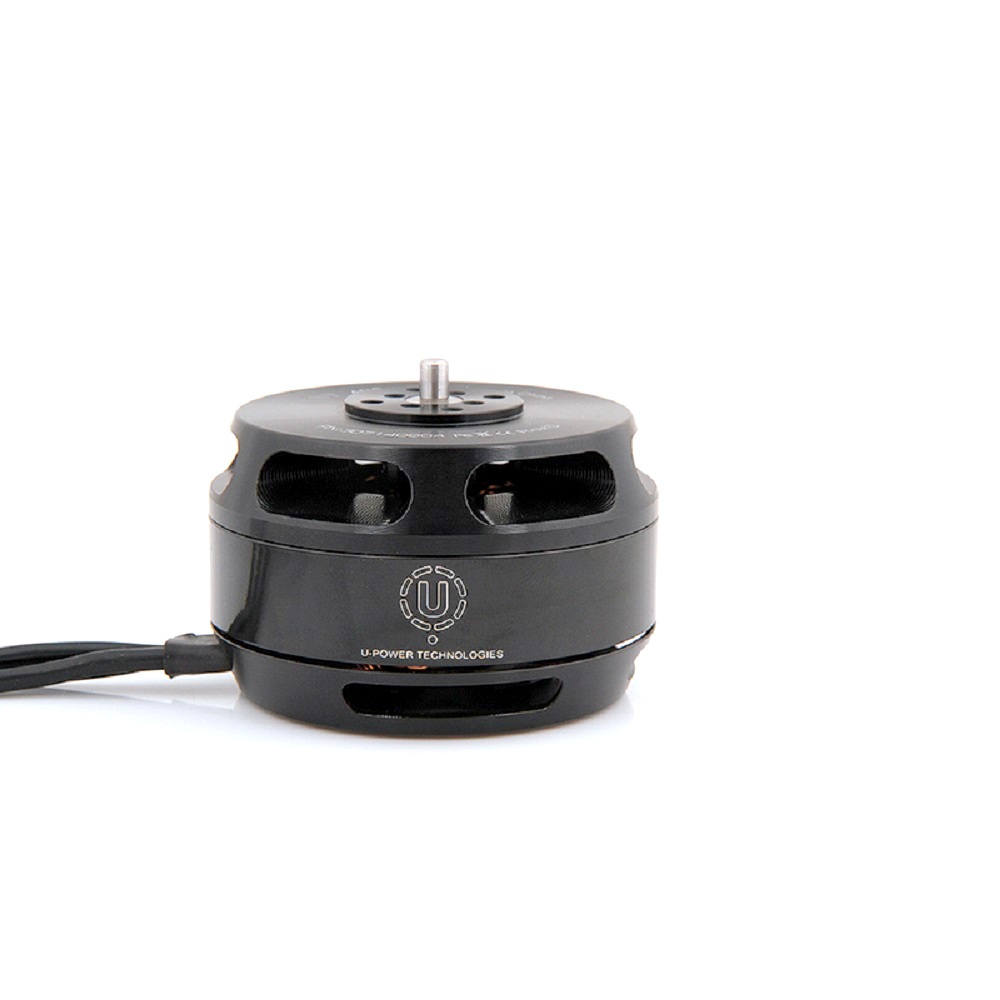

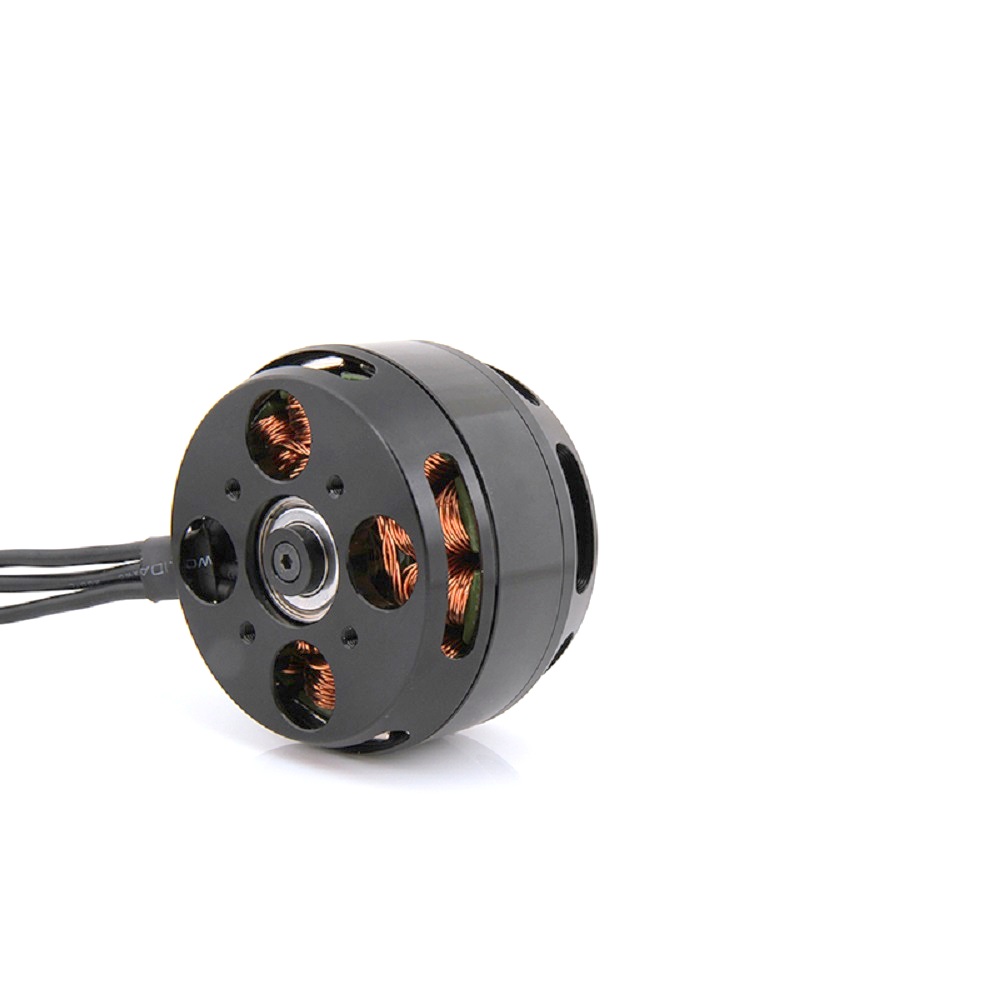

This waterproof and dustproof U7-V2.0 490KV motor from T-Motors is ideal for AUW 10- to 24-kg multicopters. This RC Tiger T-motor provides swift airflow due to its unique side-hole design and cools 2.5 times faster than others.

It has an imported oxygen-free copper coil that can tolerate a temperature of 180 degrees to enhance short-circuit resistance. 0.2mm high standard silicon steel sheet precision winding reduces heat and eddy thus improving efficiency.

The motor is equipped with imported German bearings, which prolong the service life to over 1600 hours under trouble-free operation. It also enables the motor to run more smoothly and longer with less noise.


Features and Specifications:

  1. KV Rating: 490
  2. Configuration: 12Nl4P
  3. Shaft   Diameter: 4mm
  4. Motor Dimension(Dia.*Len): 60.7×39.5mm
  5. Weight: 258g
  6. Idle current @10V:  1.1 A
  7. No.of  Cells(Lipo): 3~8S
  8. Max Continuous  current(A)l 80S: 44A
  9. Max Continuous Power (W)180S: 1300W
  10. Max. efficiency current: (10-25A)>81%
  11. internal   resistance: 21 mΩ

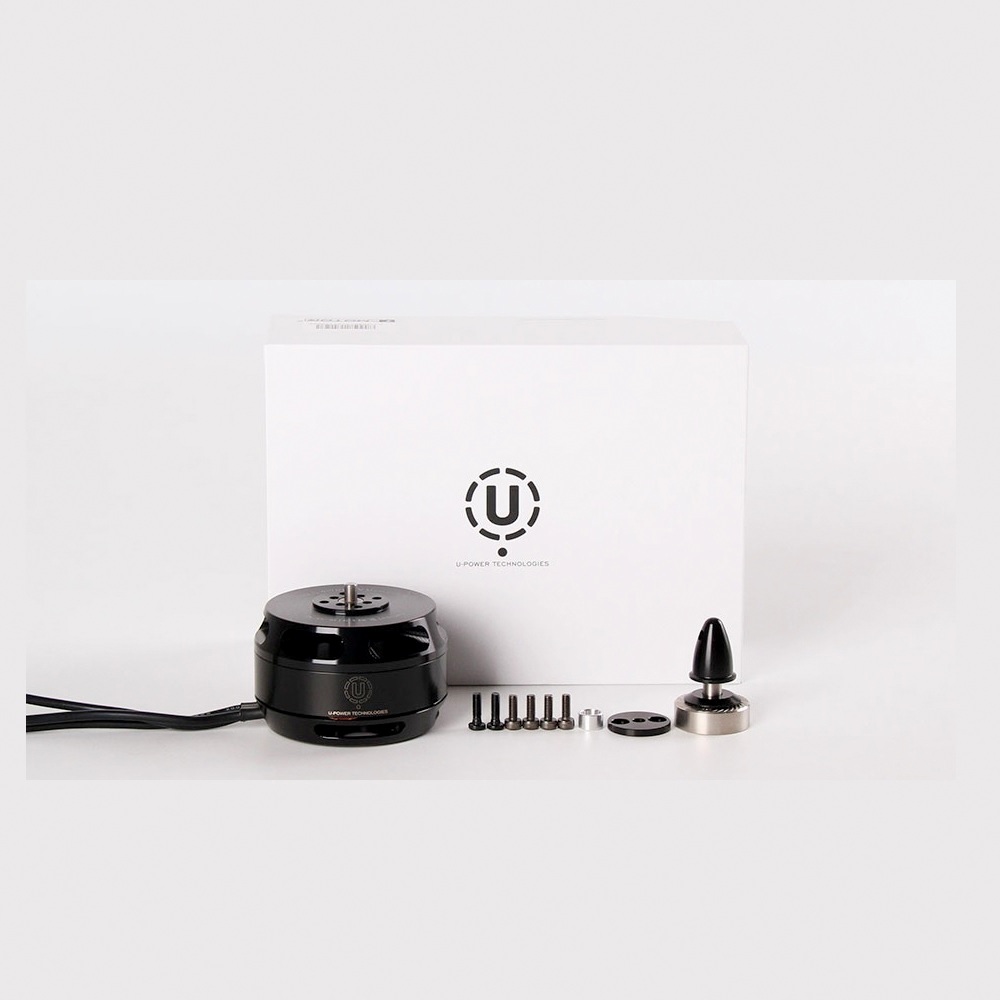

Package Includes:

1 x T motor U7-V2.0 490KV Motor

1 x Accessories Set
