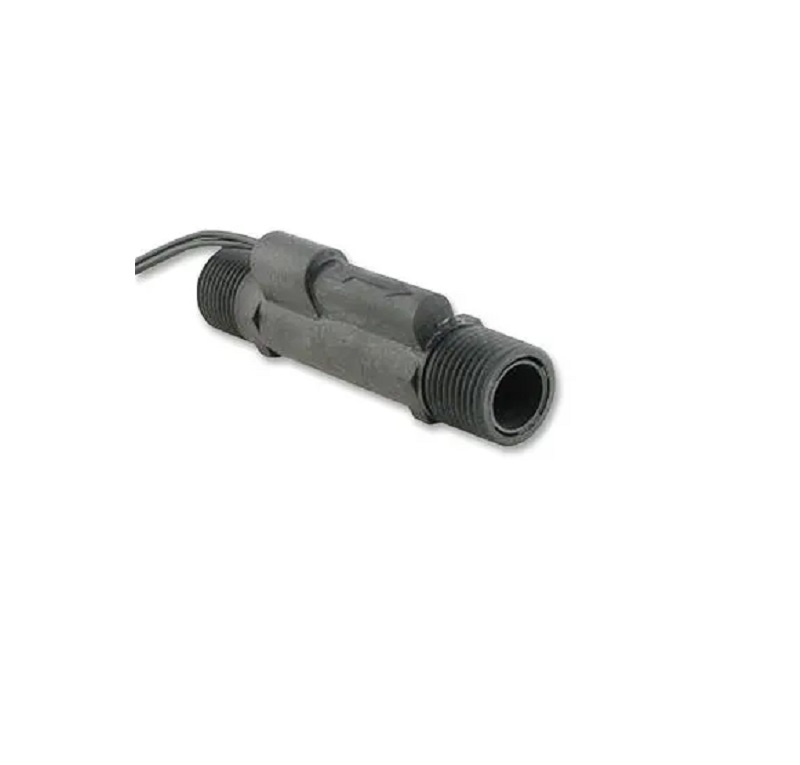

TE CONNECTIVITY Flow Switch, FCS-01, 0.6 l/min, 3/8″ BSP Port Size, SPST-NO, 250 Vac, 1 A, Noryl
TE CONNECTIVITY Flow Switch, FCS-01, 0.6 l/min, 3/8″ BSP Port Size, SPST-NO, 250 Vac, 1 A, Noryl

TE CONNECTIVITY Flow Switch, FCS-01, 0.6 l/min, 3/8″ BSP Port Size, SPST-NO, 250 Vac, 1 A, Noryl

SKU: rz24310791
In Stock

₹1,699.00

  1. Model: TE CONNECTIVITY Flow Switch, FCS-01
  2. Max Switching Voltage VDC: 200
  3. Max Switching Voltage VAC: 250
  4. Max Switching Current Amps: 1
  5. Max Switching Load Watt: 40





Order on WhatsApp
In Stock
This item is low in stock.

Item(s) left: 6

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Categories: , , ,

Description

The FCS-01 is a Flow Switch Sensor that offers design engineers reed switch reliability (file E125629). The design allows for sensing in line flow of liquid or air. 3/8-inch BSP male threaded fittings. Suitable for hot and cold potable water. Black Noryl housing. Ruthenium contact.

Applications:

  1. Leak detection
  2.  Flow sensing
  3.  Mains water control
  4.  Cooling systems
  5.  Circulation pump protection

Features:

  1. UL94-HB Flammability rating
  2. Minimum pressure drop
  3. Operates from a small head of water
  4. Mount in any axis
  5. Suitable for water and air flow switching
  6. Food grade material

Specifications:

  1. Housing Material: Noryl
  2. Max Switching Voltage VDC: 200
  3. Max Switching Voltage VAC: 250
  4. Max Switching Current Amps: 1
  5. Max Switching Load Watt: 40
  6. Shuttle Material: Noryl
  7. Spring Material: Stainless Steel
  8. Contact Material: Ruthenium
  9. Operating Temperature: °C -30 to 85
  10. Medium: Water
  11. Shock: 50g for 11ms Duration
  12. Vibration: 35g up to 500Hz
  13. Maximum Pressure: 10 Bar @ 20ºC

Package Includes:

1 x TE CONNECTIVITY Flow Switch, FCS-01
