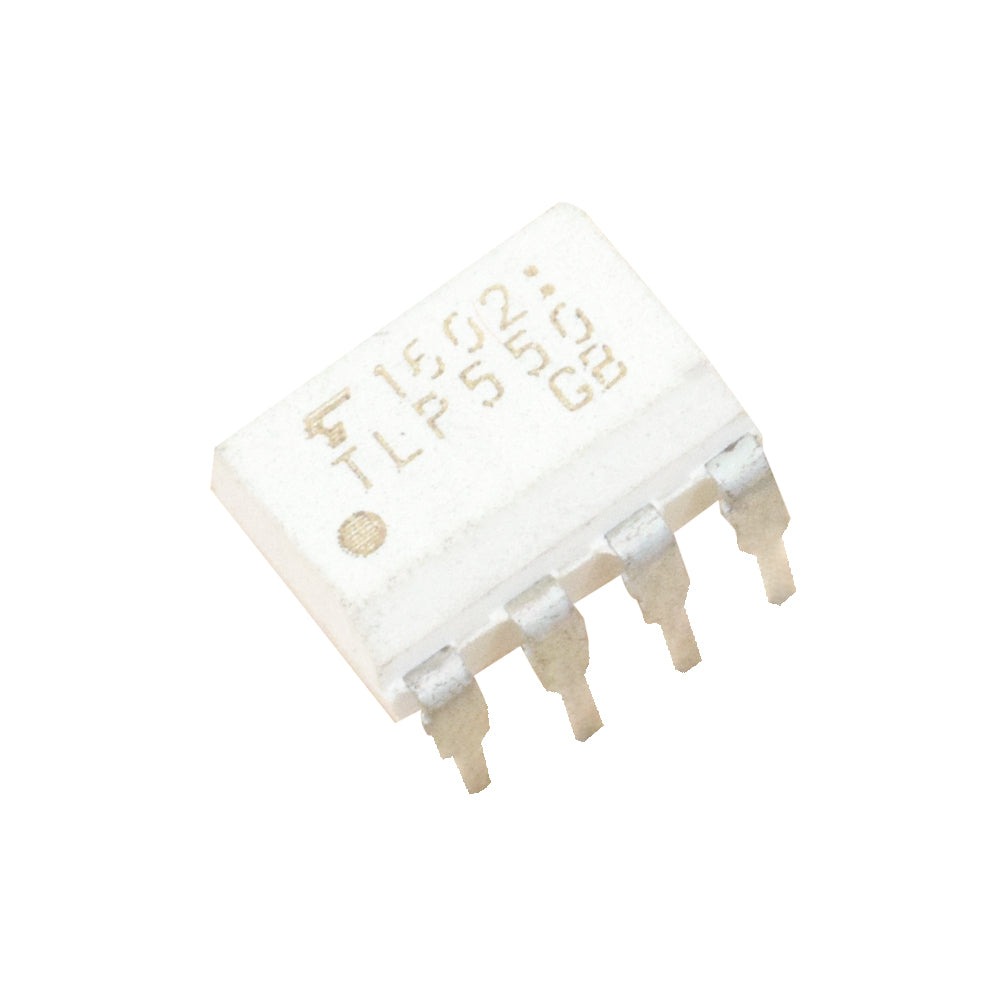

TLP550 Photocoupler DIP-8 IC

Original price was: ₹78.70.Current price is: ₹73.28. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%69.62 (Including tax)
11 - 208%67.41 (Including tax)
21 - 4010%65.95 (Including tax)
41 - 10012%64.49 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

16 People watching this product now!
Description

TLP550 is an eight pins IC constructed with a high-emitting diode and a photodiode in. As we already know, the photocoupler contains an infrared-emitting LED and a photocoupler; a current is first applied to the Optocoupler, which makes the infrared LED emit a light proportional to the current. When the light hits the photosensitive device, it switches on and starts to conduct a current as any ordinary transistor might. Its isolation voltage is 2500VRMS its switching speed is 0.5 microseconds.

Pinout details:

  1. NC
  2. Anode
  3. Cathode
  4. NC
  5. Emitter
  6. Collector
  7. NC
  8. Cathode
Specification
 ModelTLP550
 TypePhotocoupler IC
 PackageDIP-8
 Lead solder temperature260-degree centigrade
 Isolation Voltage2500V RMS
 Pulse forward current 50mA
 Total power dissipation100mW
 Operating and Storage Temperature Range-55°C TO 125°C
Country of OriginChina
