TPS63020 5V Automatic Buck-Boost Power Supply Module

TPS63020 is a high-efficiency small buck-boost power supply module. The input voltage ranges from 1.8V to 5.5V, the output current can be as high as 3A, and the efficiency is as high as 96%. It can automatically switch between buck and boost modes. The quiescent current is less than 50uA and the fixed operating frequency is 2.4mhz, can be used for all two-cell and three-cell alkaline batteries, single-cell lithium battery powered devices, ultra-small mobile PCs and MIDs, digital media players, DSCs and cameras.

Specifications:

• Input Voltage: 1.8V to 5V (recommended input above 2V for optimal performance)
• Output Voltage: 5V
• Output Current: Capable of delivering a reliable output current of up to 3A.
• Output formula: R3=R1 (Vout/VFB-1)
• Typical value: VFB=500mV (2.5V: R1=82K, R3=330K; 3.3V: R1=180K, R3=1M; 4.2V: R1=3K, R3-22K; 5V: R1=110K, R3=1M)
• Efficiency: Boasting an impressive conversion efficiency of up to 96%, ensuring efficient power management even with varying input and output voltage differentials.
• Quiescent Current: Consumes minimal power with a static current of just 6mA, further reduced to an ultra-low 50uA in power-saving mode.
• Switching Frequency: Operates at a fixed frequency of 2.4 MHz for consistent performance.
• Output Ripple: Maintains low output ripple levels: 10mV (no load), 10mV (buck with 0.5A), and 30mV (boost with 0.5A).

Features:

• The TPS63020 is a high-efficiency, the compact buck-boost power supply module
• Input voltage range of 1.8V to 5.5V, output current up to 3A, and efficiency up to 96%
• It can automatically switch between buck and boost modes
• The quiescent current is less than 50uA and the fixed operating frequency is 2.4Mhz
• It can be used in all two-cell and three-cell alkaline batteries, single-cell lithium battery-powered devices, ultra-compact and mid-size laptops, digital media players, DSCs, and cameras
• Point-Saving Mode (PS): This feature is customizable with 1 for disabled and 0 for enabled. The module is disabled by default. Activate it by disconnecting SB1 and applying the appropriate input level.
• Enable Input (EN): The module is enabled by default (1), and can be disabled (0) as per your requirements. Disconnect SB2 and input the desired level to enable or disable this feature.
• Output Status Indication (PG): Provides clear output status indication. A reading of 0 signifies a fault condition, while 1 indicates normal operation.

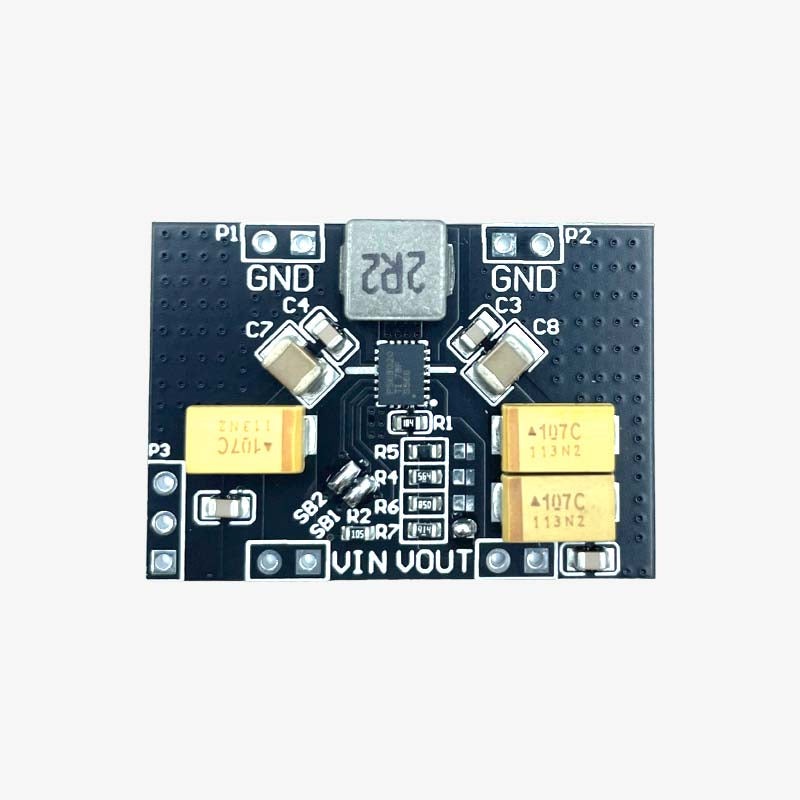

Pinout:

Package Includes:

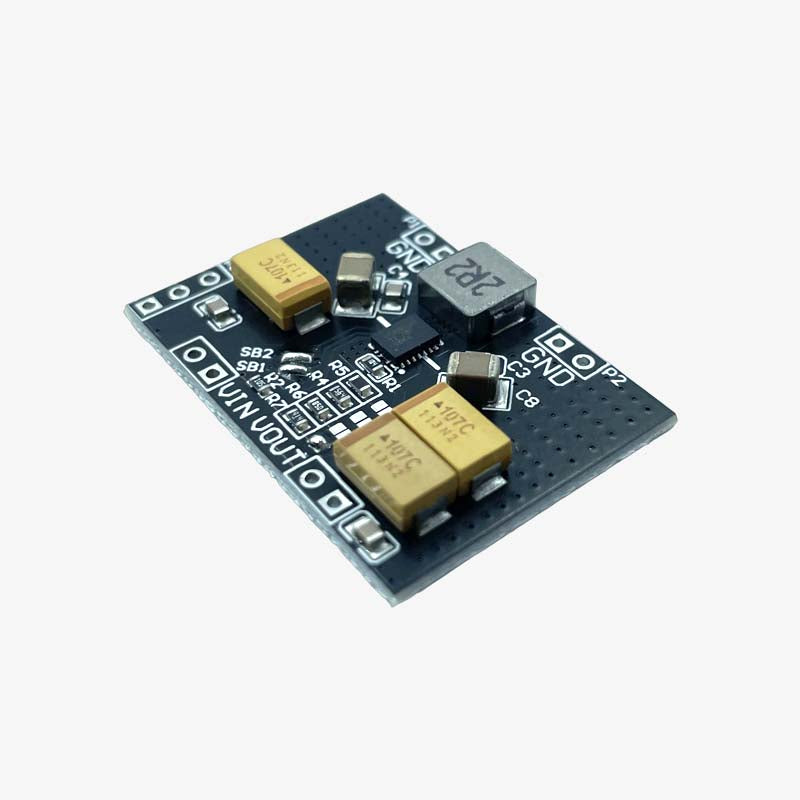

1 x  5V TPS63020 Automatic Buck-Boost Step Up Down Power Supply Module
