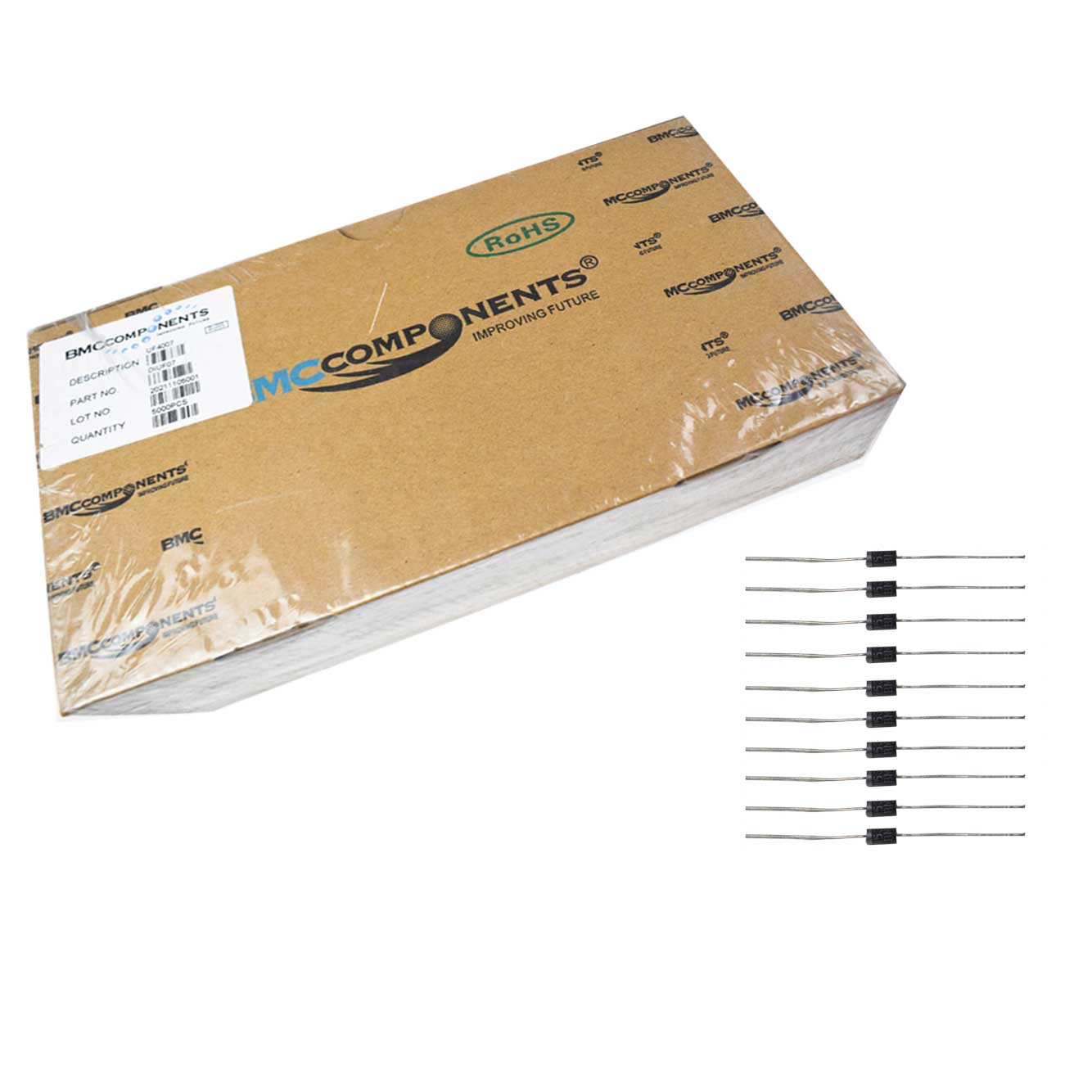

UF4007 1A 1000V Ultra Fast Recovery Rectifier Diode DO-41 (Pack of 5000)

0 Reviews
Available on backorder

Original price was: ₹6,278.83.Current price is: ₹5,064.32. (Including tax)

(-19%)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%4,811.11 (Including tax)
11 - 208%4,659.18 (Including tax)
21 - 4010%4,557.90 (Including tax)
41 - 10012%4,456.60 (Including tax)
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)

Product details

The UF4007 is a 1.0A Ultra Fast Recovery Rectifier Diode. The UF4007 Diode is a high-speed switching diode with a continuous reverse voltage rating of 1000V and forwards current ratings of up to 1A. The reverse recovery time of the UF4007 Diode is 75ns. The diode is well suited for use in power supply and switched voltage converter circuits. The UF4007 fast recovery diodes are generally used in high-frequency rectification and freewheeling in switching power supplies or electric auto chargers.

Features

  • Reverse Voltage (Vrrm): 1000V
  • Average Rectified Current (Io): 1.0A
  • Max. Reverse Current (Ir): 0.010mA
  • Max. Forward Voltage Drop (Vf): 1.7V
  • Reverse Recovery Time (Trr): 75ns

Specifications

 Model UF4007
 Make BMC Components
 Type General Purpose Rectifier Diode
 Max. Average Forward Rectified Current 1.0A
 Max. Recurrent Peak Reverse Voltage 1000V
 Forward Surge Current 30A
 Case DO-41
 Mounting Type Through Hole
 No of Pin 02
 Operating Temperature Range -65 to +150 °C
 Quantity 5000
Country of Origin China
