VISHAY VCNL4200 High Sensitivity Long Distance Proximity ALS Sensor-E4 54AC6178

405.75 (Including tax)

  1. Product: High Sensitivity Long Distance Proximity ALS Sensor
  2. Operating Range (mm): 0 to 1500
  3. Operating Voltage Range (V): 2.5 to 3.6
  4. I2C Bus Voltage Range (V): 1.8 to 3.6
  5. IRED Pulse Current (mA): 800

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%385.46 (Including tax)
11 - 208%373.28 (Including tax)
21 - 4010%365.17 (Including tax)
41 - 10012%357.05 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

17 People watching this product now!
SKU: rz2439968 Category:
Description

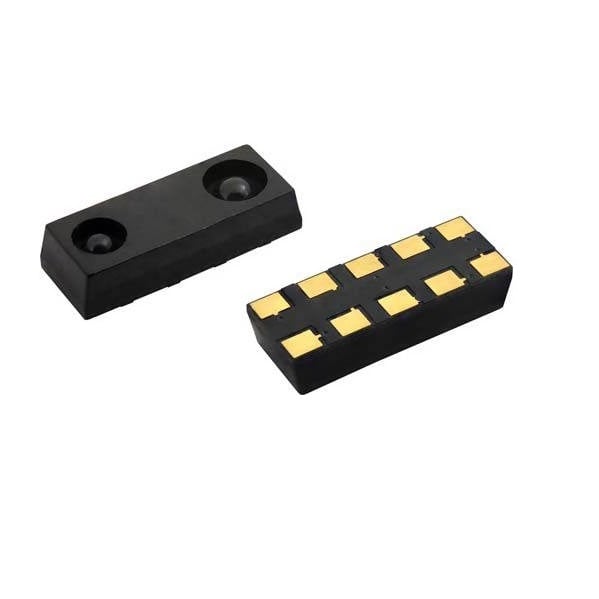

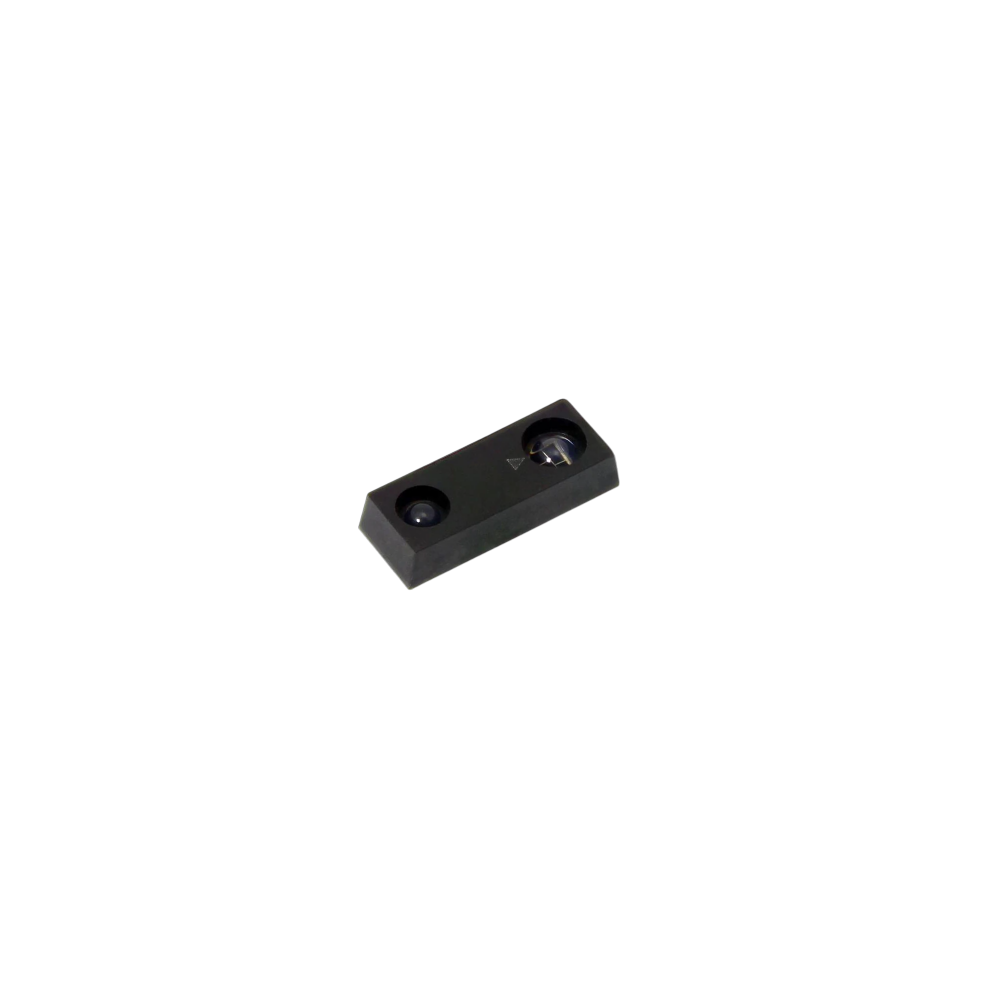

VCNL4200 integrates a high-sensitivity long-distance proximity sensor (PS), ambient light sensor (ALS), and 940 nm IRED into one small package. It incorporates photodiodes, amplifiers, and analog to digital converting circuits into a single chip using a CMOS process. The 16-bit
high-resolution ALS offers excellent sensing capabilities with sufficient selections to fulfill most applications whether a dark or high transparency lens design

 Applications:

  1.  Presence detection to activate displays in printers,
    copiers, and home appliances
  2.  Collision detection in robots and toys
  3.  Proximity sensing and lighting control in offices, corridors
    and public buildings

Features:

  1. Package type: surface-mount
  2. Operates ALS and PS in parallel structure
  3. Supports low transmittance (dark) lens design
  4. FiltronTM technology adoption for robozarst background light cancellation

Package Includes:

1 x VCNL4200 HIGH SENS LONG DIST PROX ALS SENSOR



Additional information
Operating Range (mm)

0 to 1500

Operating Voltage Range (V)

2.5 to 3.6

I2C Bus Voltage Range (V)

1.8 to 3.6

IRED Pulse Current (mA)

800

Ambient Light Range (lx)

0.003 to 1573

Ambient Light Resolution (lx)

0.003

Output Code

16 bit

,

I2C

ADC Resolution Proximity / Ambient Light

12 bit / 16 bit
