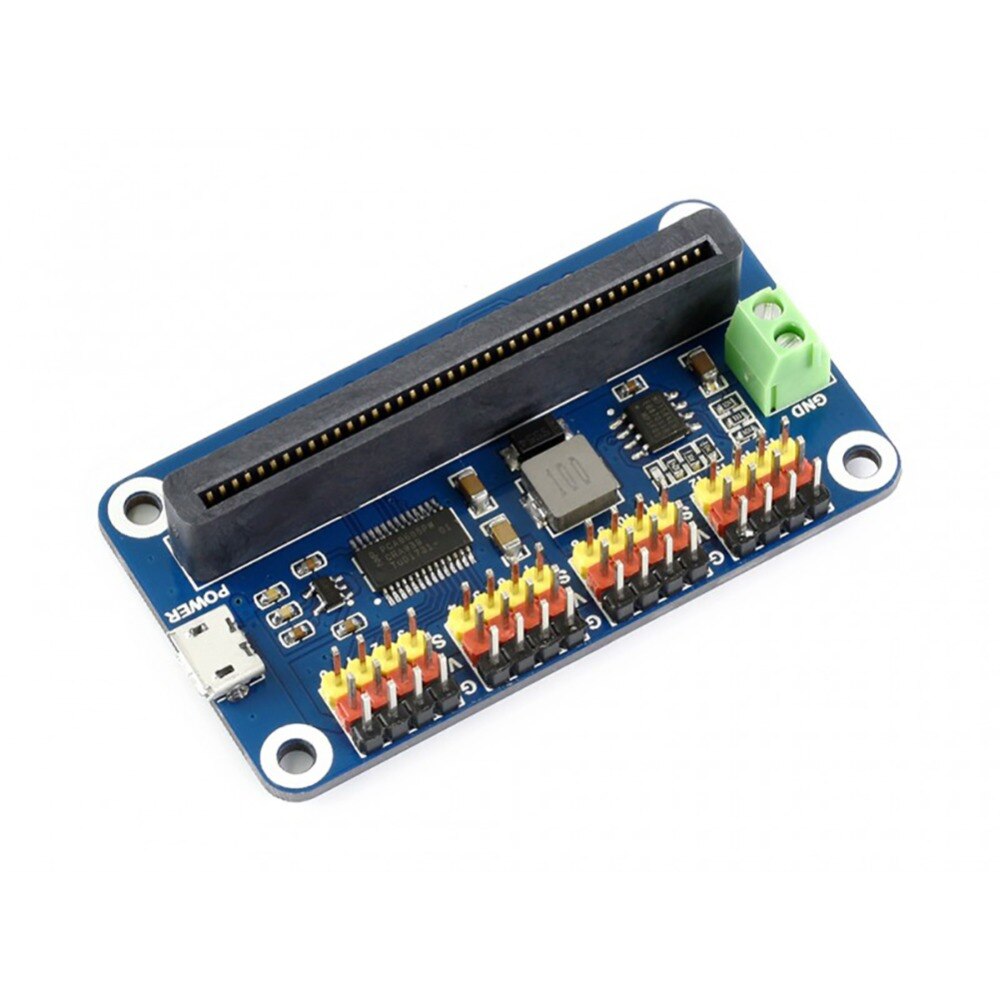

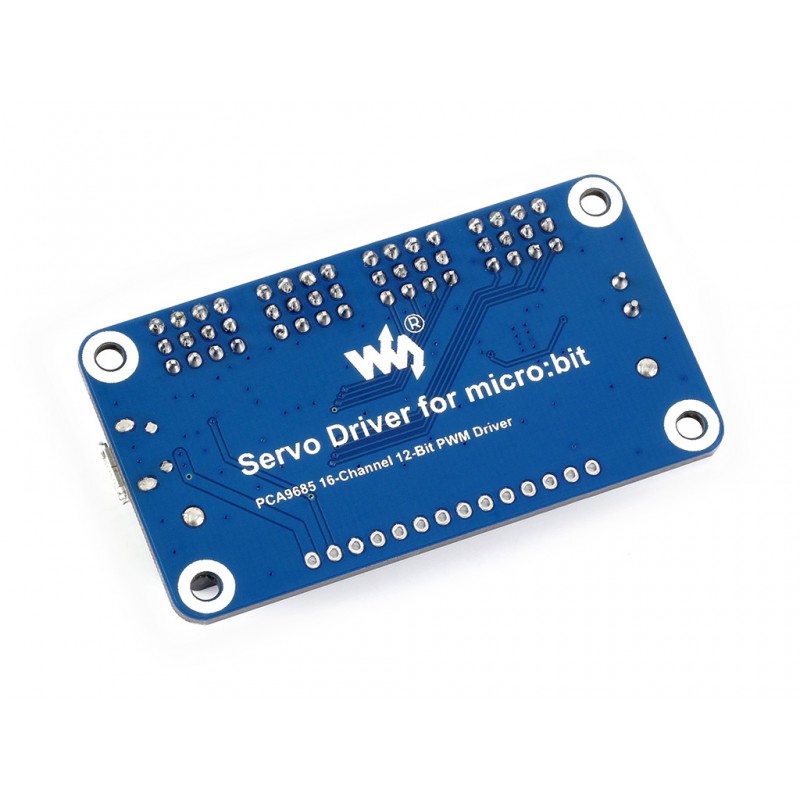

Waveshare 12-bit I2C 16-Channel Servo Driver for micro:bit

₹2,034.15 (Including tax)

  1. Power supply: 5V (POWER connector) OR 6V~12V (VIN terminal)
  2. Servo voltage: 5V
  3. Logic voltage: 3.3V
  4. Driver: PCA9685
  5. Control interface: I2C
  6. Dimension: 65mm x 36mm
  7. Mounting hole size: 3.0mm

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%₹1,932.44 (Including tax)
11 - 208%₹1,871.40 (Including tax)
21 - 4010%₹1,830.73 (Including tax)
41 - 10012%₹1,790.05 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare
Add to wishlist
19 People watching this product now!
SKU: rz24323337 Category:
Description

This is a Waveshare 12-bit I2C 16-Channel Servo Driver for micro: bit. Did you encounter the PWM output limit of micro: bit when trying to make a robotic arm or whatever robot that requires lots of servos? We quite understand that situation, even we got an excellent solution. This handy servo driver breakout would be your ideal choice.

Useful link:

To do Hardware and Software setup, please follow this tutorial.



Waveshare 12-bit I2C 16-Channel Servo Driver for micro:bit

Note:Micro: bit is not included in this package, you have to buy is separately

Features:

  1. micro: bit edge connector, directly pluggable
  2. I2C controlled, using only 2 pins
  3. Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
  4. Integrates 5V regulator, up to 3A output current, can be powered from the battery through VIN terminal
  5. Standard servo interface supports commonly used servo such as SG90, MG90S, MG996R, etc.
  6. Reserved I2C control pins, allows working with other control boards
  7. Comes with development resources and manual (micro: bit graphical examples like Bluetooth/2.4G wireless remote control)

Package Includes:

1 x Waveshare 12-bit I2C 16-Channel Servo Driver for micro: bit

Additional information
Recommended Power Supply

5V

Logic Input (V)

3.3

Driver Model

PCA9685

Interface Type

I2C

Mounting Holes Diameter (mm)

3

Length (mm)

65

Width (mm)

33

Height (mm)

12

Weight (gm)

17
