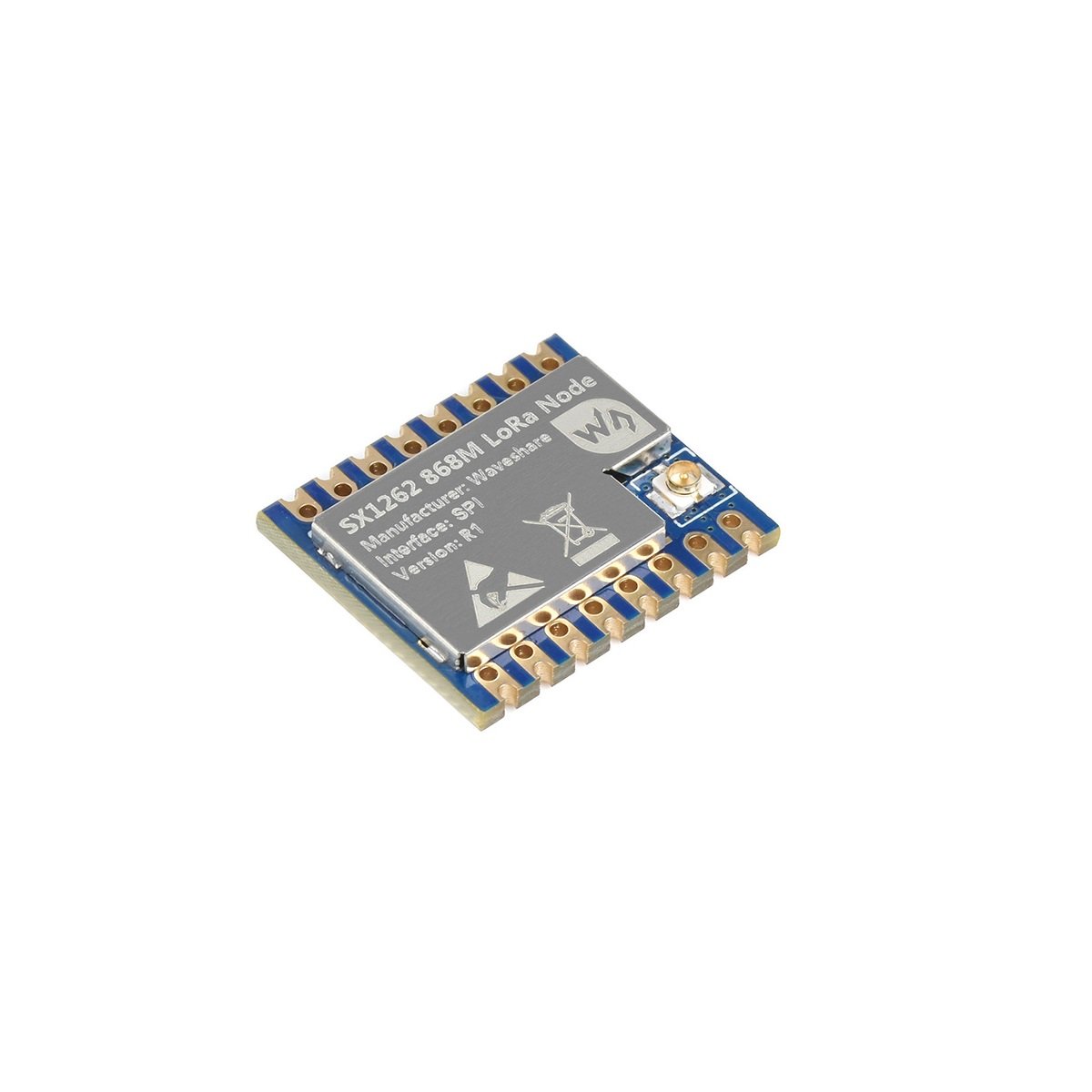

Waveshare Core SX1262-868M LoRa Module

1,287.79 (Including tax)

  1. Operating voltage: 3.3V
  2. Modulation: LoRa/(G)FSK
  3. Emit power: > 14dBm@3.3V
  4. RF chip: SX1262



Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%1,223.40 (Including tax)
11 - 208%1,184.76 (Including tax)
21 - 4010%1,159.02 (Including tax)
41 - 10012%1,133.25 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

10 People watching this product now!
SKU: rz24316929 Category:
Description

The Core1262-868M is a LoRa core module that incorporates a new-generation SX1262 chip. It has features including mini size, long-range transmission, high anti-interference capability, and so on. The module uses the EU868 band, combined with the LoRa gateway, it can be connected to servers like the TTN server to build the LoRa network.


Pinout:Core1262 868M details 3


Features:

  1. New-generation SX1262, has higher power efficiency, and longer transmission distance than the traditional SX1278
  2. EU868 band, combined with LoRa gateway, quick connection to cloud servers like TTN server
  3. Comes with rich development resources and a manual (examples for STM32, Raspberry Pi Pico)

Useful Link:

https://www.waveshare.com/wiki/Core1262-868M


Package Includes:

1 x Waveshare Core SX1262-868M LoRa Module



Additional information
RF Chip

SX1262

Frequency Range

 EU868 (863~870MHz)

Modulation

LoRa/(G)FSK

Data Rate

0.018~62.5Kbps (LoRa) 0.6~300Kbps ((G)FSK)

Emit Power

 > 14dBm@3.3V

Spreadind factor

 SF5 ~ SF12

Operating Voltage

3.3V

Module Power Consumption

Emitting current: 45mA@14dBm

,

Receiving current: 5.3mA@125KHz

Communication Bus

 SPI

Operating Temperature

 -40 ~ 85?

Connector

Castellated edge / solder holes

Dimensions

 21.00 x 52.00mm
