Waveshare Industrial Serial Server RS485 to RJ45 Ethernet, TCP/IP to Serial Rail-Mount Support

3,798.25 (Including tax)

  1. Terminal RS485 interface
  2. Support 32 slave devices
  3. Baud rate support 300~115200bps
  4. Support MQTT gateway function.
  5. Operating temperature -40~85℃





Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%3,608.33 (Including tax)
11 - 208%3,494.38 (Including tax)
21 - 4010%3,418.43 (Including tax)
41 - 10012%3,342.45 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

18 People watching this product now!
SKU: rz24316838 Category:
Description

This is an RS485 device data acquisitor / IoT gateway designed for the industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS485 and Ethernet ports, uses screw terminals for power input, and supports a 9~24V wide-range power supply. Rail-mount flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring.


Features:

  1. Guide rail design: suitable for installation inside cabinets in the industrial field
  2.  Small size: Compared with the ordinary serial server, the width is smaller and does not take up space
  3. Terminal type power supply, 9~24V wide voltage input, with reverse power protection
  4. Terminal RS485 interface, supports 32 slave devices, baud rate support 300~115200bps
  5. Support MQTT gateway function.
  6. Support JSON to Modbus RTU and 645 instrument protocol, support HTTP POST, and HTTP GET format to upload data.

Package Includes:

1 x RS485 TO ETH (B)



Additional information
Communication Interface

RS485

,

wiring terminal mode

Ethernet RJ45 interface

2 KV surge protection

Serial port

RS485×1:RXD

,

TXD

,

GND

Baud Rate

300~115200bps

Check Digit

None

,

Odd

,

Even

,

Mark

,

Space

Data bits

5~9 bits

Protocol ETHERNET

IP

,

TCP

,

UDP

,

HTTP

,

ARP

,

ICMP

,

DHCP

Power

9~24V DC

Operating Temperature

-40~85℃

Storage Temperature

-45~165℃

Humidity Range

5~95% relative humidity

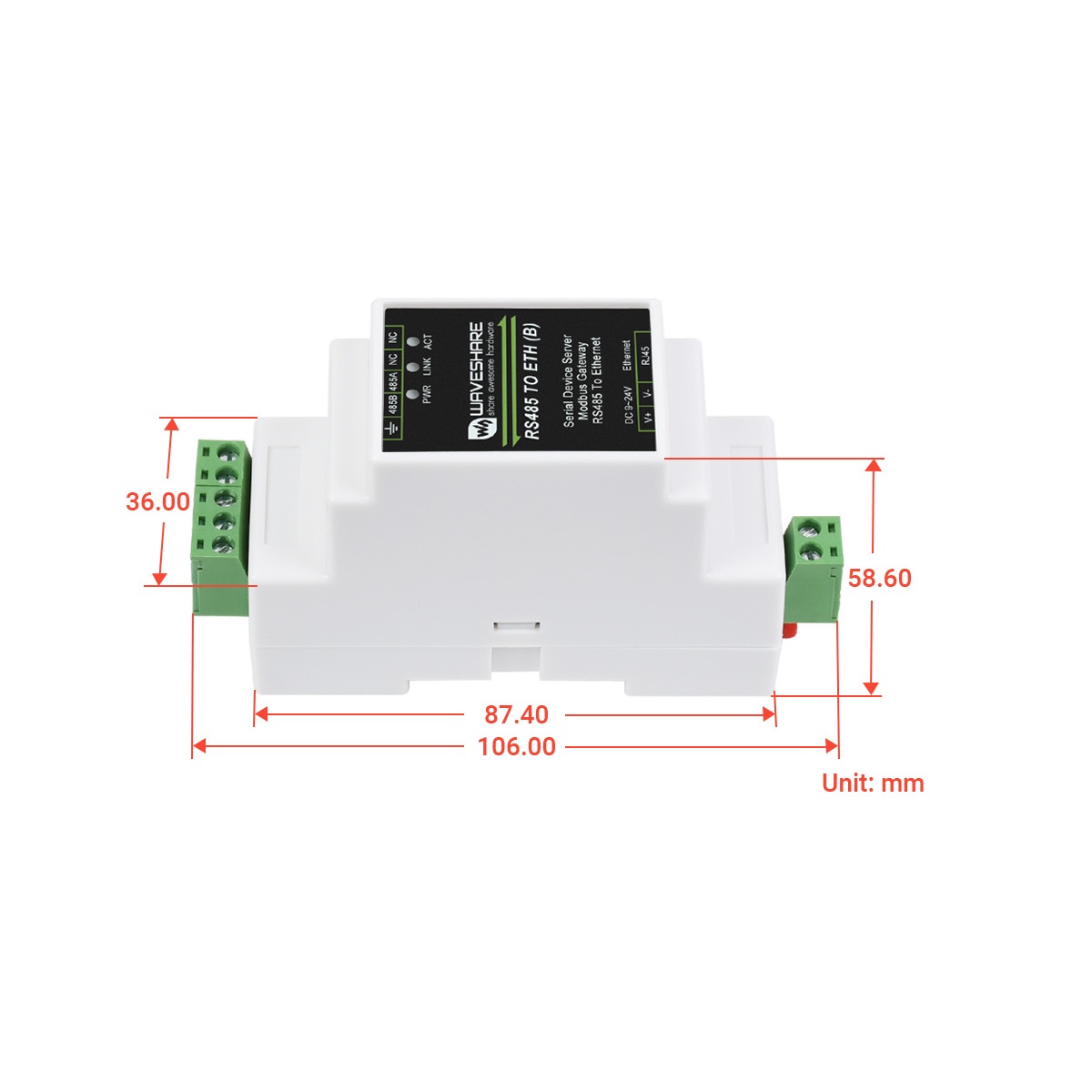

Dimensions (L x W x H) mm

87 × 36 × 59
