Product details

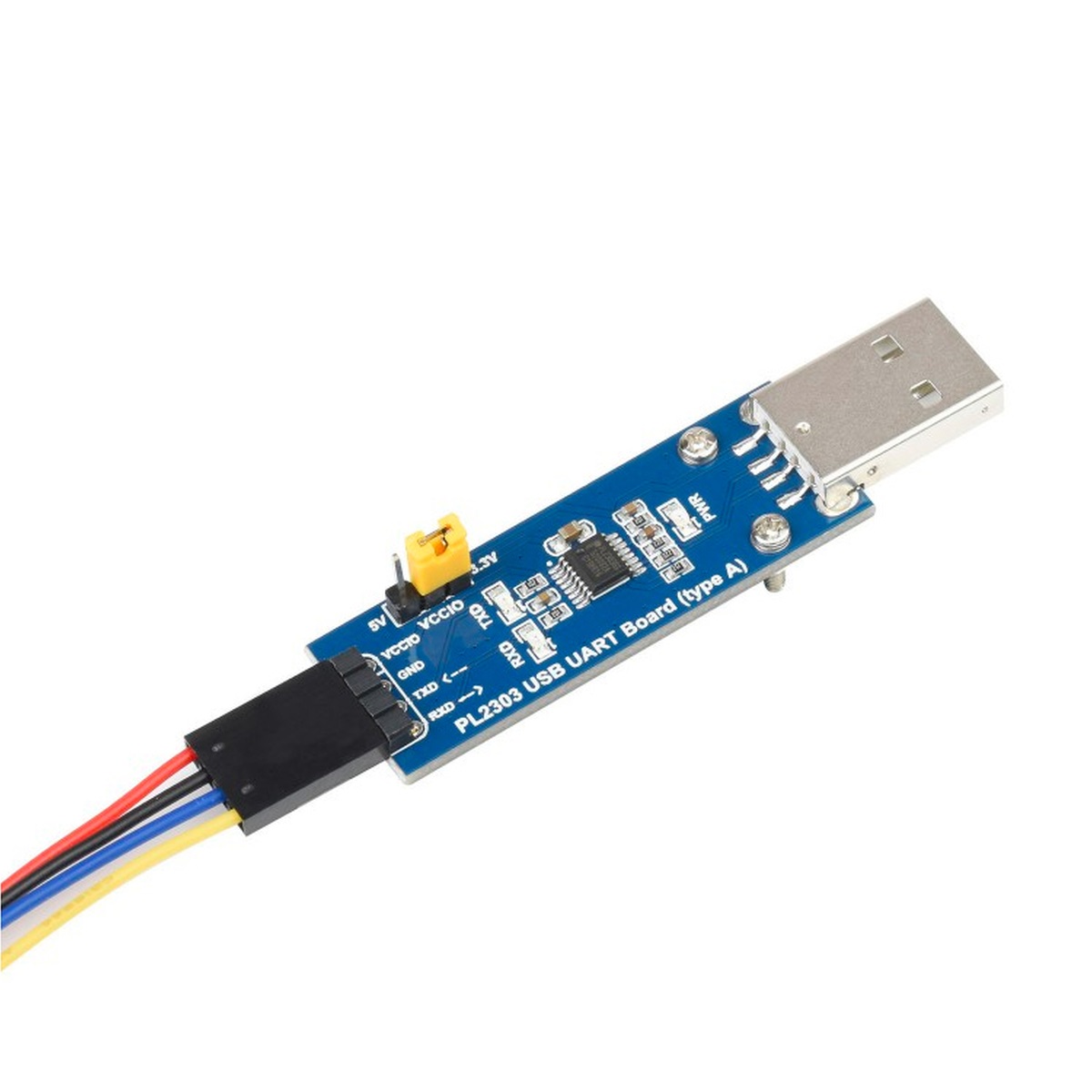

This is the PL2303 USB UART converter Board. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB-C bus and will appear as a standard COM port

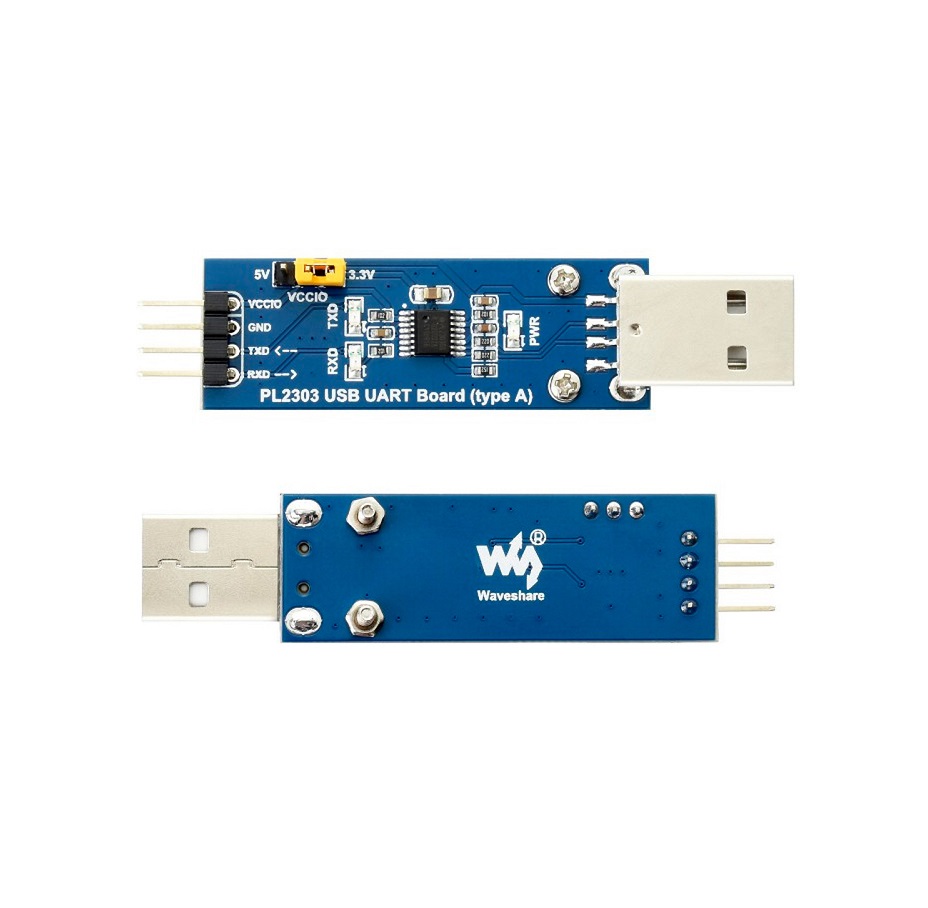

Pinout:
- VCCIO ↔ 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
- GND ↔ GND
- TXD ↔ MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
- RXD ↔ MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)
Features:
-
Adopts PL2303GS new version device
-
Supports windows XP/7/8/10/11/…
-
3x VCCIO power mode via jumper setting:
- VCCIO – 5V: 5V output
- VCCIO – 3.3V: 3.3V output
- open the jumper: powered from target board (1.8V/2.5V/3.3V/5V)
-
3x LED indicators: TXD, RXD, PWR
Package Includes:
1 x PL2303 USB UART Board (type A) V2
1 x 4-pin custom connector jumper wire x1
