Waveshare Dual Gigabit Ethernet 5G/4G Base Board Designed for Raspberry Pi Compute Module 4

SKU: rz24316887
In Stock


  1. Power input 5v/2.5a
  2. Micro SD card slot
  3. HDMI connectors
  4. RJ45 Gigabit Ethernet
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free


This is a dual Gigabit ethernet 5G/4G baseboard, which is designed for Raspberry Pi Compute Module 4. It is suitable for evaluating the Raspberry Pi CM4 or being integrated into end products.

Whats on Board:

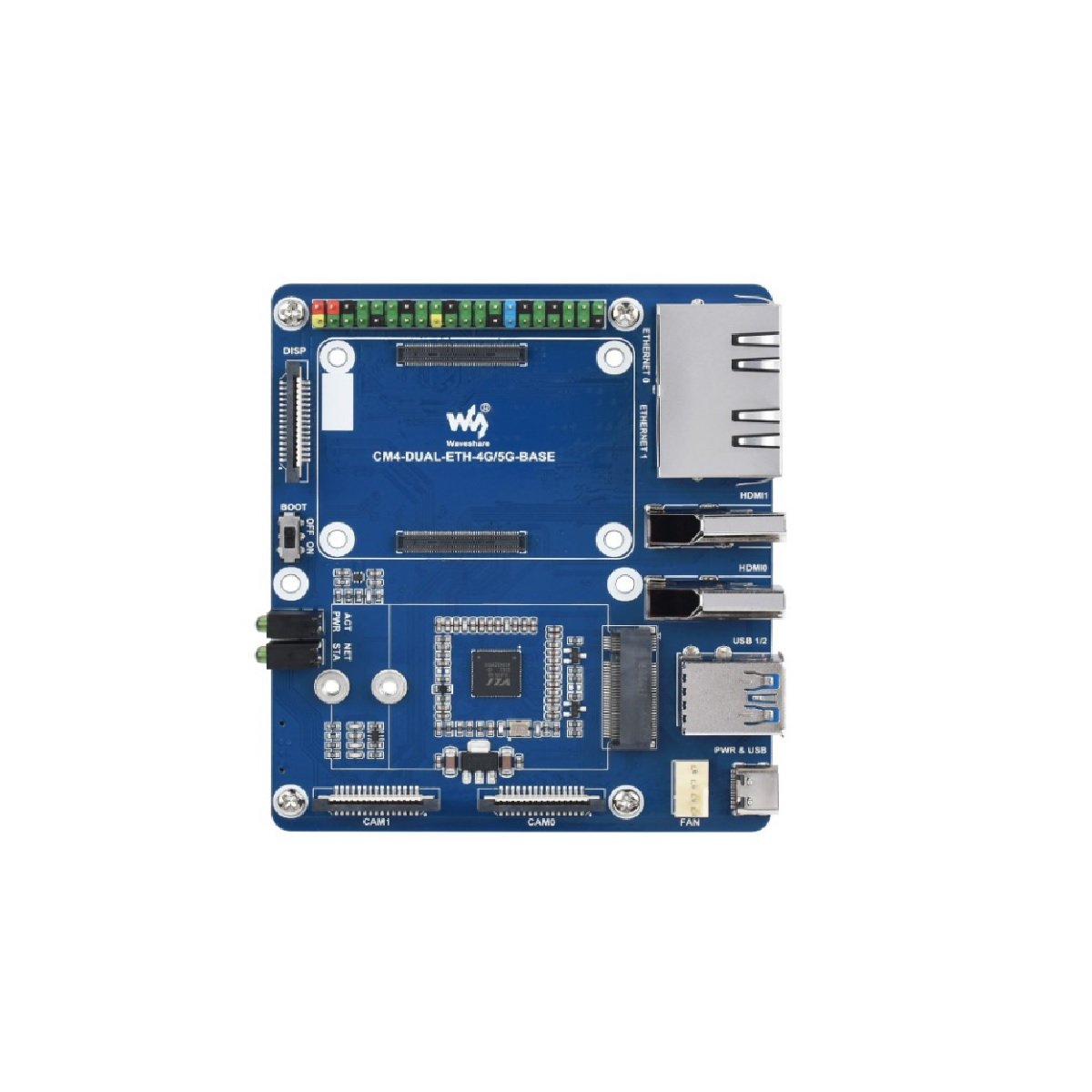

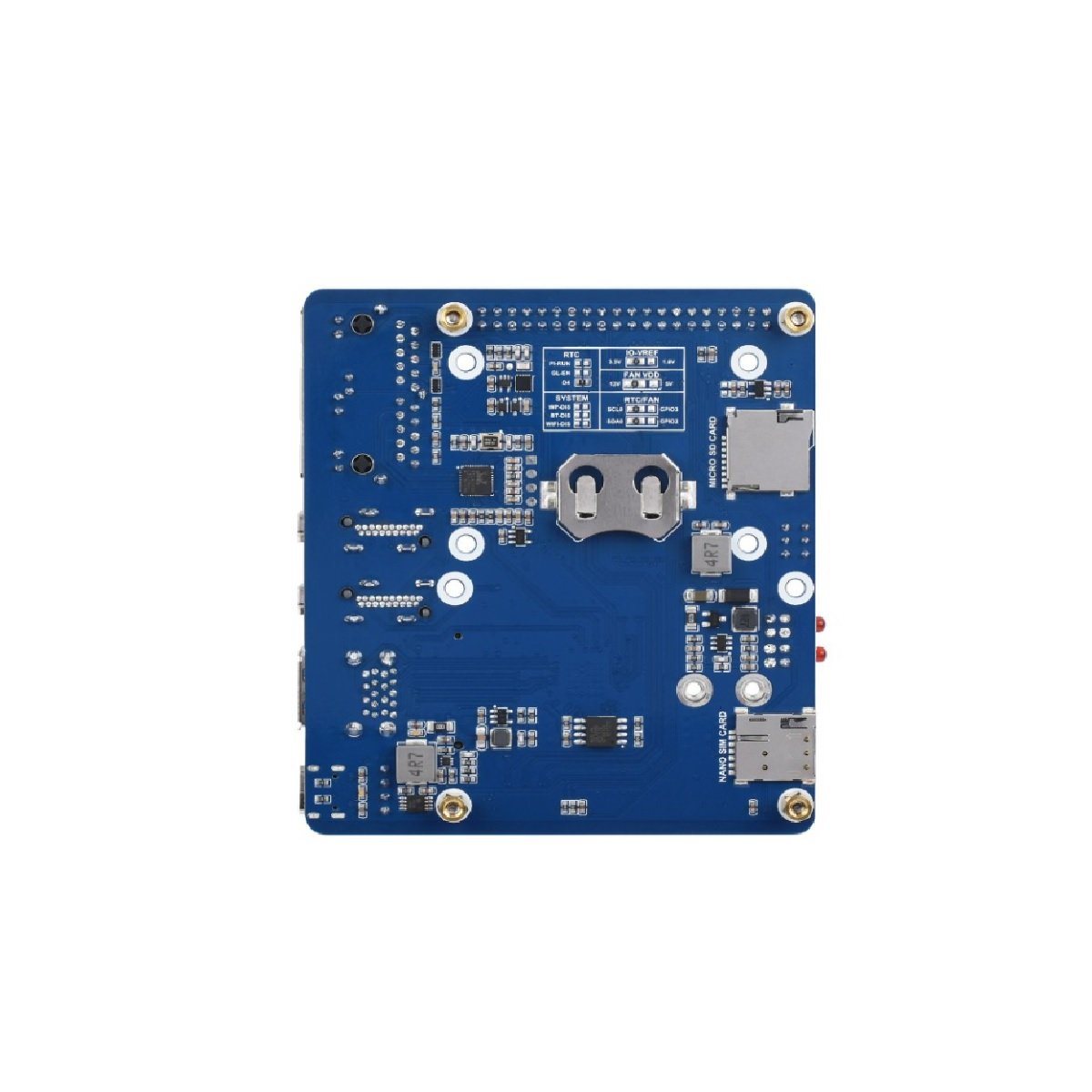

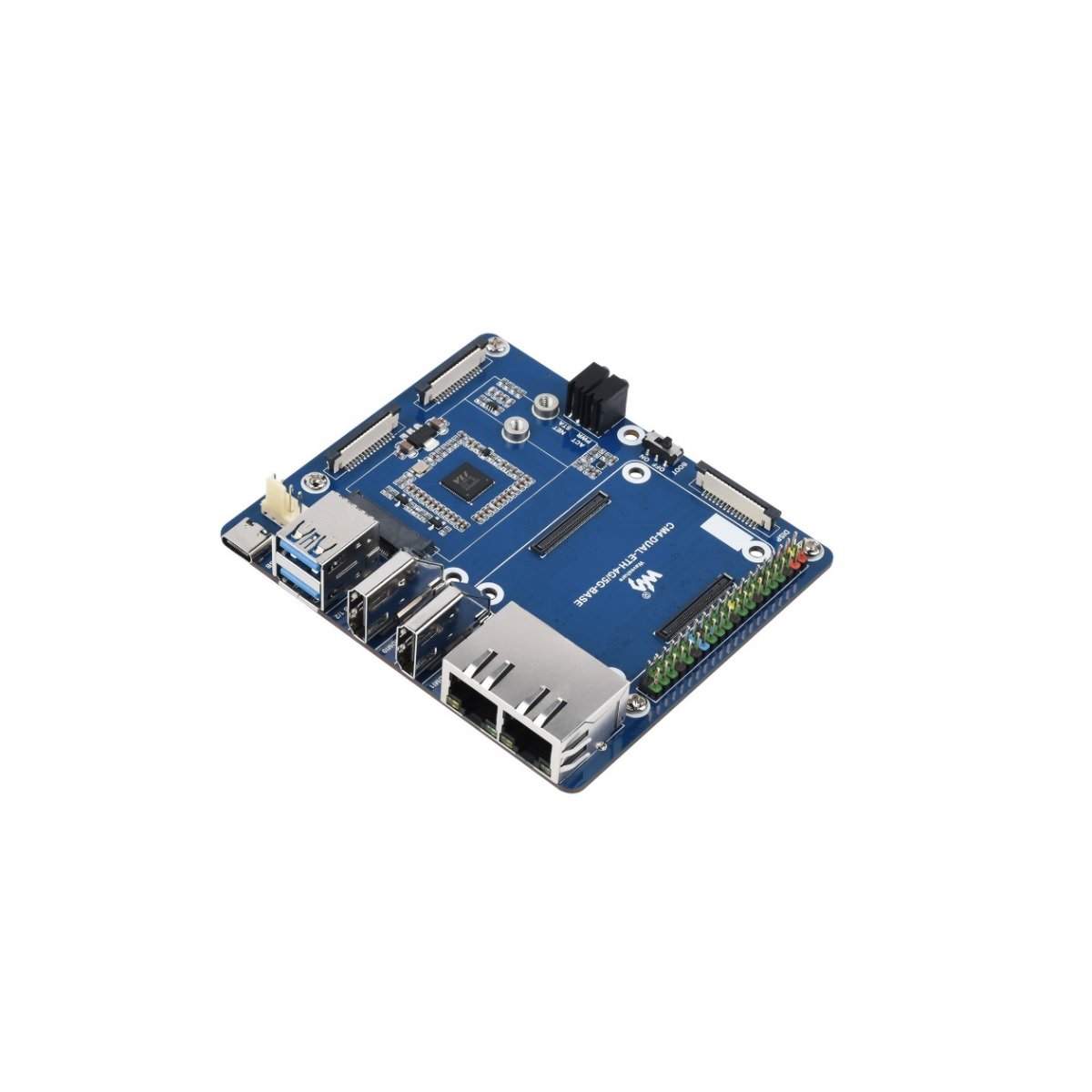

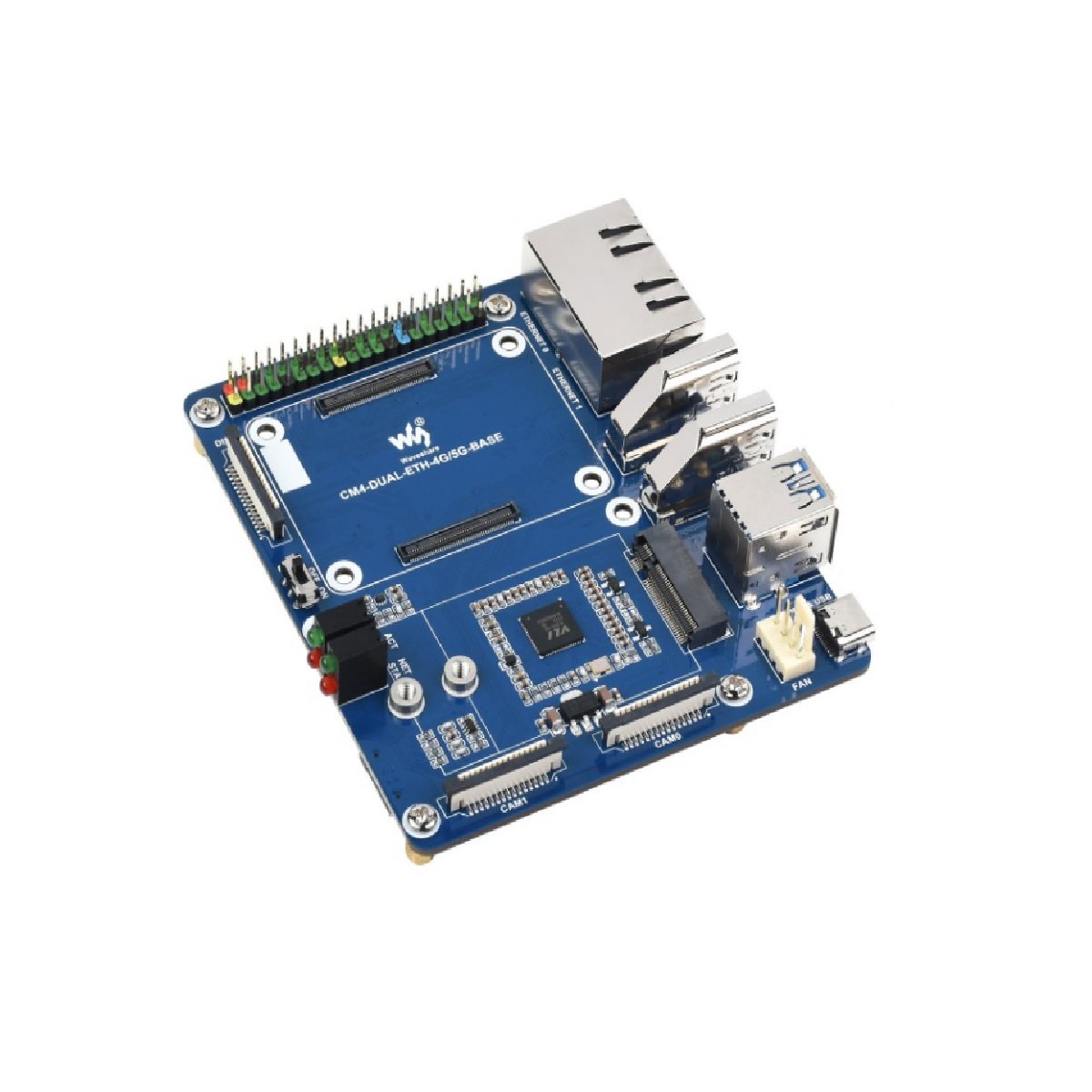

CM4 DUAL ETH 4G 5G BASE details intro

  1. CM4 socket: suitable for all variants of Compute Module 4
  2. 40PIN GPIO header: for connecting sorts of HATs
  3. RJ45 Gigabit Ethernet
    dual RJ45 Gigabit Ethernet, 10/100/1000M compatible
    ETHERNET 0: CM4 original ETH
    ETHERNET 1: USB extended ETH
  4. USB 3.2 ports: 3x USB 3.2 Gen1, for connecting sorts of USB devices
  5. HDMI connectors: 2x HDMI, supports 4K 30fps output
  6. CAM: 2x MIPI CSI camera ports
  7. DC power supply: 7~36V DC wide voltage range power input
  8. Dual LED indicators
    red: Raspberry Pi power indicator
    green: Raspberry Pi operating status indicator
  9. Micro SD card slot: for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)
  10. FAN header: for connecting cooling fan, allows speed adjustment and measurement
  11. DISP0
    MIPI DSI display port
  12. USB SLAVE port:for burning system image into Compute Module 4 eMMC variants
  13. RTC battery holder: supports CR1220 button cell
  14. RTC interruption configuration
    PI-RUN: CM4 will reboot on RTC interruption
    GN-EN: CM4 power-down on RTC interruption
    D4: D4 pin is triggered on RTC interruption
  15. IO-VREF selection:set the CM4 IO logic level as 3.3V or 1.8V
  16. FAN power supply selection:select 5V or 12V power to drive the fan
  17. System function configuration
    BT_DIS: Bluetooth disabled, for CM4 with antenna variant ONLY
    WiFi_DIS: WiFi disabled, for CM4 with antenna variant ONLY
    WP_DIS: boot mode switch, ONLY be used when NOT booted from eMMC or SD card
  18. RTC/FAN I2C bus selection
    SDA0/SCL0: I2C-10 is shared with CSI/DSI
    GPIO3/2: I2C-1 is shared with 40PIN header
  19. RTL8153:USB Gigabit Ethernet chip
  20. EMC2301:fan controller allows fan speed adjustment and measurement
  21. VL805:USB 3.0 HUB


  1. Cm4 socket suitable for all variants of computing module 4
  2. Networking dual gigabit ethernet rj45
  3. M.2 b key, for connecting 5g / 4g module
  4. Nano-sim card slot supports standard nano-sim card for 5g/4g/3g/2g communication
  5. USB USB 3.2 gen1 × 2
  6. Pin header raspberry pi 40pin pin header
  7. Display mipi dsi port (15pin 1.0mm FPC connector)
  8. Camera mipi csi-2 port × 2 (15pin 1.0mm fpc connector)
  9. Video hdmi × 2, supports 4k 30fps output
  10. Rtc real-time clock with a battery socket and ability to wake to compute module 4
  11. Storage MicroSD card socket for compute module 4 lite (without emmc) variants
  12. Fan header 5v/12v (12v by default), allows speed adjustment and measurement
  13. Power input 5v/2.5a
  14. Dimensions 99.6 × 87.0mm

Package Includes:

1 x Waveshare Dual Gigabit Ethernet 5G/4G Base Board
