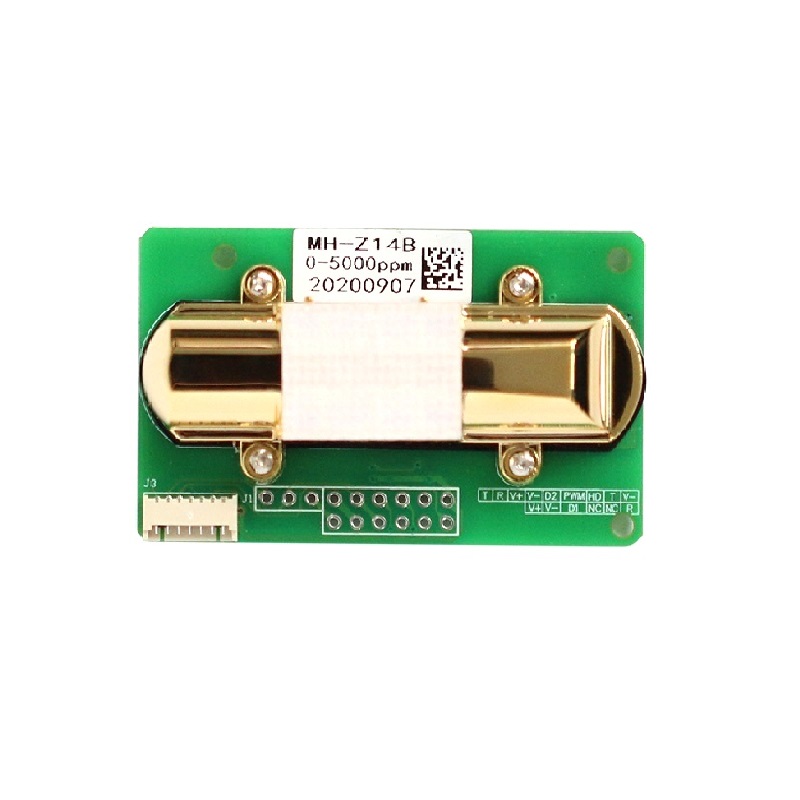

MH-Z14 NDIR Infrared gas module is a common type, small size sensor, using non-dispersive infrared (NDIR) principle to detect the existence of CO2 in the air, with good selectivity, non-oxygen dependent and long life. Built-in temperature sensor can do temperature compensation; and it has digital output and analog voltage output. This infrared gas sensor is developed by the tight integration of mature infrared absorbing gas detection technology, Precision optical circuit design and superior circuit design.
Applications:
MH-Z14 NDIR Infrared gas module is applied in the HVAC, indoor air quality monitoring, industrial process,
safety and protection monitoring, agricultural and animal husbandry production process monitoring.
1 x Winsen MH-Z14B NDIR CO2 SENSOR
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Out of stock
Gas Detection |
Carbon Dioxide (CO2) |
---|---|
Operating Voltage |
4.5 ~ 5.5V DC |
Average Current |
<85mA |
Output |
UART |
Measuring Range |
0 ~ 50000ppm |
Accuracy |
± (50ppm + 5% reading) |
Preheating Time |
3min |
Response Time |
T90 < 30s |
Operating Temperature |
0 ~ 50 ℃ |
Operating Humidity |
0 ~ 95% RH (no condensation) |
Service Life |
>5 years |
Out of stock
Out of stock
Model No. |
TGS2602-B00 |
---|---|
Heater Voltage |
5.0±0.2V DC |
Circuit Voltage |
5.0±0.2V DC |
Heater power consumption |
280mW (typical) |
Heater Current |
56±5mA |
Sensing Principle |
MOS type |
Heater Resistance |
approx 59Ω at room temp. (typical) |
Load Resistance |
variable 0.45kΩ min |
Sensor Resistance |
10kΩ ~ 100kΩ in air |
Standard Package |
TO-5 metal can |
Target Gases |
Air contaminants (VOCs ,ammonia ,H2S ,etc.) |
Test Gas Conditions |
normal air at 20±2˚C ,65±5%RH |
Out of stock
Model No. |
TGS3870-F00 |
---|---|
Circuit Voltage |
5.0±0.2V DC pulse |
Load Resistance |
variable (>0.75kΩ) |
Sensing Principle |
MOS type |
Sensor Resistance |
0.3kΩ~5.0kΩ in 3000ppm methane 2kΩ~40kΩ in 200ppm CO |
Standard Package |
Plastic base and metal can |
Target Gases |
Methane and Carbon Monoxide |
Test Gas Conditions |
Target gas in air at 20±2˚C ,65±5%RH |
