₹1,551.05 (Including tax)
Discount per Bulk Quantity
| Quantity | Discount | Price |
|---|---|---|
| 5 - 10 | 5% | ₹1,473.51 (Including tax) |
| 11 - 20 | 8% | ₹1,426.97 (Including tax) |
| 21 - 40 | 10% | ₹1,395.95 (Including tax) |
| 41 - 100 | 12% | ₹1,364.92 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

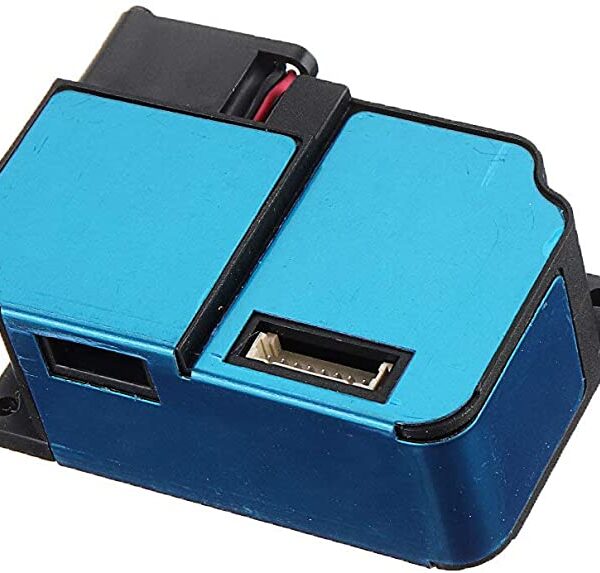

ZH03 Laser Dust sensor module is a common type, small size sensor, using laser scattering principle to detect the dust particles in air, with good selectivity and stability. It is easy to use, with UART output & analog output.
Applications:
ZH03B PM2.5 Dust Sensor Particle sensor is widely used in air quality monitoring equipment, air purifiers, ventilation systems, air conditioner, and smart home equipment.
1 x Winsen ZH03B Particles Sensor PM2.5 Dust Sensor
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
| Detection Gas |
Hydrogen (H2) |
|---|---|
| Detection range |
0~1000ppm |
| Working Voltage |
3.3~5.5V DC |
| Working Current |
<5mA |
| Output Signal |
I2C ,UART (0~3V) ,analog voltage |
| Working Temperature |
-20~50℃ |
| Working Humidity |
15~90%RH (non-condensing) |
| Storage Temperature |
-20~50℃ |
| Communication Protocol |
I2C ,UART and analog |
| Compatibility |
Arduino ,ESP32 ,Raspberry pi |
| Storage Humidity |
15~90%RH (non-condensing) |
| Lifespan |
>2 years (in the air) |
| Adapter Plate Size |
37 x 32mm |
Out of stock
| Gas Detection |
Carbon Dioxide (CO2) |
|---|---|
| Operating Voltage |
4.5 ~ 5.5V DC |
| Average Current |
<85mA |
| Output |
UART |
| Measuring Range |
0 ~ 50000ppm |
| Accuracy |
± (50ppm + 5% reading) |
| Preheating Time |
3min |
| Response Time |
T90 < 30s |
| Operating Temperature |
0 ~ 50 ℃ |
| Operating Humidity |
0 ~ 95% RH (no condensation) |
| Service Life |
>5 years |
Out of stock
| Model No. |
TGS2602-B00 |
|---|---|
| Heater Voltage |
5.0±0.2V DC |
| Circuit Voltage |
5.0±0.2V DC |
| Heater power consumption |
280mW (typical) |
| Heater Current |
56±5mA |
| Sensing Principle |
MOS type |
| Heater Resistance |
approx 59Ω at room temp. (typical) |
| Load Resistance |
variable 0.45kΩ min |
| Sensor Resistance |
10kΩ ~ 100kΩ in air |
| Standard Package |
TO-5 metal can |
| Target Gases |
Air contaminants (VOCs ,ammonia ,H2S ,etc.) |
| Test Gas Conditions |
normal air at 20±2˚C ,65±5%RH |
Out of stock
| Model No. |
TGS2610-C00 |
|---|---|
| Heater Current |
56±5mA |
| Heater Resistance |
approx 59Ω at room temp. |
| Heater Voltage |
5.0±0.2V DC |
| Load Resistance |
variable 0.45kΩ min |
| Sensing Principle |
MOS type |
| Circuit Voltage |
5.0±0.2V DC |
| Sensor Resistance |
1.0~10.0kΩ in 1800ppm iso-butane |
| Standard Package |
TO-5 metal can |
| Target Gases |
Butane ,LP gas |
| Test Gas Conditions |
iso-butane in air at 20±2˚C ,65±5%RH |
| Heater power consumption |
280mW VH = 5.0V DC |
Out of stock
| Model No. |
TGS2611-C00 |
|---|---|
| Sensing Principle |
MOS type |
| Standard Package |
TO-5 metal can |
| Target Gases |
Methane ,Natural Gas |
| Heater Voltage |
5.0±0.2V DC |
| Circuit Voltage |
5.0±0.2V DC |
| Load Resistance |
variable 0.45kΩ min. |
| Heater Resistance |
approx 59Ω at room temp. |
| Heater Current |
56±5mA |
| Heater power consumption |
280mW±25mW |
| Sensor Resistance |
0.68~6.8kΩ in 5000ppm methane |
| Test Gas Conditions |
Methane in air at 20±2˚C ,65±5%RH |
Out of stock
| Model number |
TGS5141-P00 |
|---|---|
| Output current in CO |
1.2~3.2nA/ppm |
| Target Gases |
Carbon monoxide |
| Typical detection range |
0 ~ 5 ,000ppm |
| Baseline offset(*1) |
<±10ppm equivalent |
| Operating temperature |
10ËšC ~ +50ËšC (continuous) -20ËšC ~ +60ËšC (intermittent) |
| Operating humidity |
10 ~ 95%RH (no condensation) |
| Response time (T90) |
within 60 seconds |
| Storage conditions |
-10ËšC ~ +50ËšC (continuous) -20ËšC ~ +60ËšC (intermittent |
| Standard test conditions |
20±2˚C ,40±10%RH |
| Weight |
approx. 2.5g |
