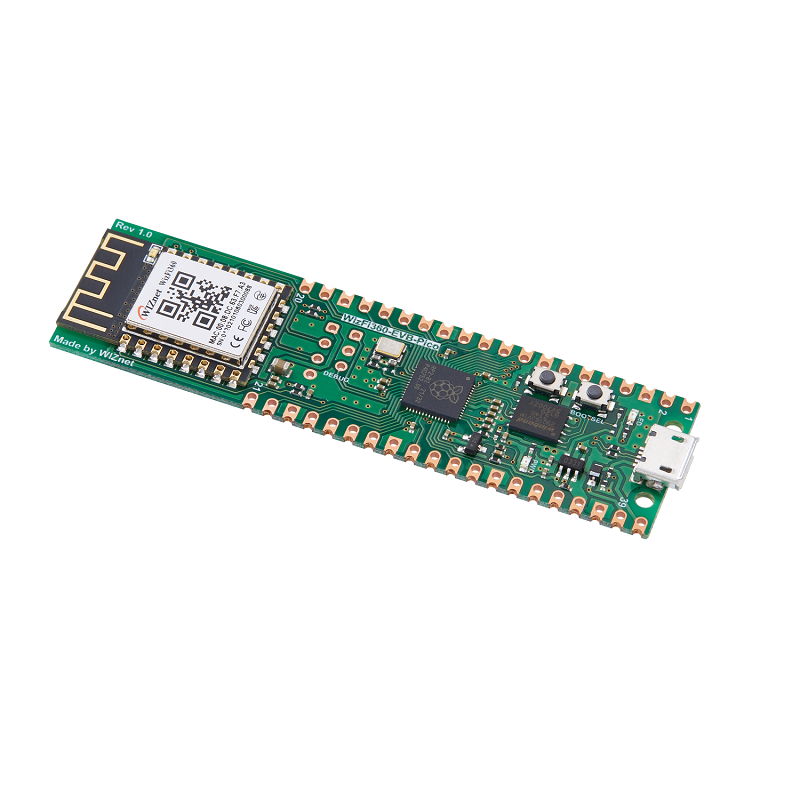

The WIZnet WizFi360-EVB-Pico is a development board designed for the WizFi360 module, a low-power, compact Wi-Fi module that provides Wi-Fi connectivity for IoT devices.

The development board includes a WizFi360 module, a USB port for power and communication, and various other connectors for interfacing with other devices. The board also consists of an onboard antenna and a U.FL connector for an external antenna, providing flexibility for antenna placement and optimization.

The WizFi360-EVB-Pico is designed to be used with the WIZnet WizFi360-EVB evaluation board, which provides a complete development environment for the WizFi360 module, including software development tools and example code.

Features & Specifications:

1. RP2040 microcontroller with 2MByte Flash
   • Dual-core cortex M0+ at up to 133MHz
   • 264kByte multi-bank high-performance SRAM
   • External Quad-SPI Flash with eXecute In Place (XIP)
2. Includes WizFi360-PA
   • WiFi 2.4G, 802.11 b/g/n
   • Support Station / SoftAP / SoftAP+Station operation modes
   • Support “Data pass-through” and “AT command data transfer” mode
   • Support serial AT command configuration
   • Support TCP Server / TCP Client / UDP operating mode
   • Support configuration of operating channel 0 ~ 13
   • Support auto 20MHz / 40MHz bandwidth
   • Support WPA_PSK / WPA2_PSK encryption
   • Support built-in unique MAC address and user-configurable
   • Industrial grade (operating temperature range: -40 ° C ~ 85 ° C)
   • CE, FCC certification
3. Includes 16M-bit Flash Memory
4. Micro-USB B port for power and data (and for reprogramming the Flash)
5. 40 pin 21×51 ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins also with edge castellations
6. 3-pin ARM Serial Wire Debug (SWD) port
7. Built-in LDO

Package Includes:

1 x WIZnet WizFi360-EVB-Pico

Compute Module 4 POE Board is a baseboard that can be used with Raspberry Pi Compute Module 4, and supports POE power supply and 7~36V DC power supply, with four onboard USB2 .0 for user convenience.

User Guide:

1. Confirm the fan voltage before connecting, it support 5V and 12V. if you want to connect 12V by default, please modify the jumper cap of FAN_VCC
2. USB Type C interface is used as the USB SLAVE interface to burn the image, and it can also be used as the power supply interface, but cannot be used as the OTG interface.
3. The BOOT switch is for CM4 startup mode, the ON for CM4 to enter the programming mode, and the OFF for system to starts normally.
4. In normal use, it is necessary to provide at least 5V 1.5A power supply for CM4. Otherwise, there may be problems such as automatic shutdown, frequency reduction and so on.
5. USB2.0 is closed by default, if you want to open it, you need to add dtoverlay=dwc2,dr_mode=host in config.txt
6. When using the POE function, pay attention to check whether the switch supports PoE of the 802.3af network standard.
7. When you need to use POE, connect the POE jumper cap to the EN position.
8. The Change LED light is the charging indicator, it is always on when charging, goes off when fully charged, and flashes when it fails.

Dynamic Path Management, More Stable Power Supply

Dimensions

Features:

1. H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
2. OpenGL ES 3.0 graphics
3. Options for 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM with ECC (see Appendix B)
4. Options for 0GB (CM4Lite), 8GB, 16GB, or 32GB eMMC flash memory (see Appendix B)
   Peak eMMC bandwidth 100MBps (four times faster than previous Compute Modules)
5. Gigabit Ethernet PHY supporting IEEE 1588
6. 2 × HDMI 2.0 ports (up to 4Kp60 supported)
7. Three external power supply options: USB interface, wide voltage DC, and PoE
8. When connected to the external power supply, the system will be powered and the battery will be charged at the same time, and the battery will be in a disconnected status after being fully charged, so as to avoid battery life damage caused by frequent charging and discharging
9. When the external power supply is insufficient, the battery will provide power output together with the external power supply at the same time to ensure the system normal operation
10. When the external power supply is connected, the system will keep running normally even when the battery fails or is taken out. When the external power supply is disconnected, it will automatically switch over to batteries output without interrupting the system operation

Packages Includes:

1 x  Waveshare PoE UPS Base Board Designed for Raspberry Pi Compute Module 4, Gigabit Ethernet,

Raspberry Pi 400 GPIO Header Adapter, Header Expansion, 2x 40 PIN Header. Designed for Raspberry Pi 400 ,Color-Coded Header, Easy Expansion. Ensures sufficient power supply for multiple expansion modules with a USB power input connector.

Feature:

1. Easy Expansion. Ensures sufficient power supply
2.  multiple expansion modules with a USB power input connector.
3. 2x 40 PIN Header
4. Designed for Raspberry Pi

package include:

1 X PI400-GPIO-ADAPTER-B

1 X Screws pack

Sense HAT (C) For Raspberry Pi, Onboard Multi Powerful Sensors, Supports External Sensors.Trying to make the Pi become a robot that can detect movement and orientation? Or using the Pi to collect environmental temperature, humidity, and barometric pressure data? This HAT would be your ideal choice. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Onboard QMI8658C+AK09918 (3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer), detects movement, orientation, and magnetic Onboard SHTC3 digital temperature and humidity sensor, allows monitoring the environment.

Features:

1. The onboard LPS22HB barometric pressure sensor allows monitoring of the environment
2. Onboard TCS34725 color sensor, identifies the color of a nearby object
3. Onboard SGM58031, 4-ch 16-bit precision ADC, AD expansion to support more external sensor

Package Includes:

1 x Waveshare Sense HAT (C) for Raspberry Pi, Onboard Multi Powerful Sensors, Supports External Sensors

This is a 4-ch current and power monitor HAT designed for Raspberry Pi. Via the I2C or SM Bus interface, it is easy to monitor each channel’s current, voltage, and power consumption, as well as the voltage between both sides of the sampling resistor. This is a 4-ch current and power monitor HAT designed for Raspberry Pi. Via the I2C or SM Bus interface, it is easy to monitor each channel’s current, voltage, and power consumption, as well as the voltage between both sides of the sampling resistor.

This module can be used to test currents and voltages of four channels, they are (IN1+ IN1-), (IN2+ IN2-), (IN3+ IN3-) and (IN4+ IN4-). INx+ is the current input, and INx- is the current output. Module measure the differential voltage of the sample resistor connected between INx+ and INx-, with the voltage we can measure the working current. The module supports measuring bidirectional current, so users can invert the input and output.

 Features:

1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
2. 4-ch monitoring, via I2C/SM Bus interface
3. Onboard 0.1Ω 1％ sampling resistor, allows measuring bi-directional current up to 3.2A
4. Embedded 12-bit ADC, supports multiple successive converting, 0~26V voltage measuring range
5. Directly calculate and output measured power value through additional multiply register
6. I2C control pins for connecting with other host boards
7. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Package Include:

1 X Current/Power Monitor HAT

1 X 2x20PIN female pin header

1 X RPi screws pack (2pcs)

The PiKVM v3 allows for a remote connection via your Raspberry Pi even if the target machine isn’t booted! This feature-rich HAT brings powerful tools to your fingertips.

PiKVM allows you to turn on/off or restart your computer, configure the UEFI/BIOS, and even reinstall the OS using the Virtual CD-ROM or Flash Drive. You can use your remote keyboard and mouse or PiKVM can simulate a keyboard, mouse, and a monitor, which are then presented in a web browser as if you were working on a remote system directly. It’s true hardware-level access with no dependency on any remote ports, protocols or services!

The PiKVM v3 HAT Board is designed to work with the Raspberry Pi 4 and provides the following features:

Features:

1. Fully open-source software and fine-tuned and pre-configured Linux-based OS.
2. Access to the server via Web UI or VNC.
3. HDMI video capture with extra-low latency using MJPEG or H.264/WebRTC (1080p 50Hz max).
4. Keyboard & mouse emulation
5. Bootable Virtual CD-ROM & Flash Drive
6. Mass storage emulation (i.e., virtual flash drive or CD drive provided by image file saved on PiKVM)
7. Ability to simulate “removal and insertion” for USB for the above-mentioned devices
8. ATX controller via one of the RJ45 ports (allowing to switch power even if the target device is off or the operating system hangs)
9. An onboard real-time clock for accurate logging.
10. HDMI audio capture (hardware-based; software work in progress).
11. 5v PWM fan controller
12. Health monitoring of the Raspberry Pi.
13. USB & RJ-45 serial console
14. Control GPIO ports and USB relays from the Web UI.
15. And one more thing: It’s compatible with Apple computers!

Requirements

To use PiKVM v3, you will need the following things, which are NOT included in the kit:

• Raspberry Pi 4 (any amount of RAM is OK)
• 5.1v 3A power supply with USB-C
• A regular HDMI cable
• USB-C to USB-A cable with DATA lines (for keyboard and mouse emulation)
• Straight Ethernet cable (NOT crossover, to connect the HAT board and ATX board)
• Micro-SD card at least 16 Gb and class 10 is strongly recommended (Check out our 16GB and 32GB cards

Known issues & limitations

1. The actual frame rate of the image received via HDMI will depend on the network bandwidth, resolution, and the load on the Raspberry Pi. This is usually ~20-24 FPS for 1080p over LAN.
2. AIMOS switches are not fully compatible with the video capture device (as with a regular HDMI CSI bridge).
3. There may be compatibility issues with some motherboards (such as HP or DELL) which are the same as those that exist with PiKVM v2. Not everything is perfect, but if you have already used PiKVM v2 – our new v3 will work perfectly and please you. If there is no image from the BIOS, you can fine-tune the HDMI settings, but it is possible that the USB keyboard or Mass Storage devices will not be available in the BIOS.

Useful Links:

PiKVM Handbook

Package Includes:

1 x PiKVM v3 HAT for Raspberry Pi 4

In the box:

1 x PiKVM v3 HAT

1 x USB-C bridge board – When unboxing this is between the ATX boards pins and RJ45 connector

1 x ATX adapter board

2 x Flat CSI-2 cable

7 x Colorful jumpers

4 x Brass standoffs

8 x screws

1 x Wires for connecting the ATX interface to the motherboard
