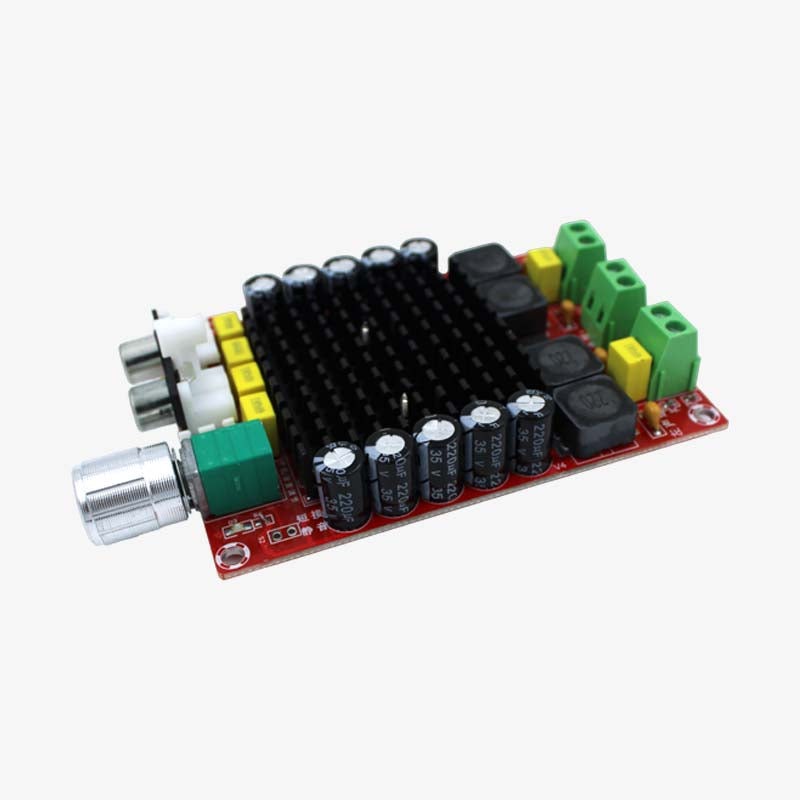

XH-M510 TDA7498 High Power Digital Power Amplifier Board

The XH-M510 TDA7498 DC14-32V High Power Digital Class D Power Amplifier Board is a versatile and robust audio amplification solution designed to deliver high-quality audio performance in a compact form factor. Powered by the TDA7498 amplifier chip, this board provides an impressive output power of 100W+100W across two channels, making it suitable for various audio applications, from home audio systems to DIY audio projects.

This amplifier comes with 4 different levels of gain adjustment (21.6dB, 27.6dB, 31.1dB, 33.1dB) to choose the best-suited gain output to your speakers. The module has two stereo channel output with 100w output per channel.  It uses differential input to reduce common-mode noise significantly and additionally it has the pattern of the fault and silent mode With intelligent protection function and overheating protection function.

Features:

• High-quality TDA7498 amplifier chip for powerful and clear audio output
• Wide operating voltage range, suitable for various power supply setups
• Powerful 200-watt output
• Easy Plug and Play operation
• Intelligent overcurrent, overvoltage, under voltage, overtemperature protection function

Specifications:

• Amplifier Chip: TDA7498
• Amplifier Type: Class D
• Operating Voltage: DC 14V-32V
• Output Power: 100W+100W (2 channels)
• Efficiency: >90%
• SNR: 110dB
• Switching Frequency: 360kHz
• Frequency Response Range: 18Hz-100kHz
• Input: 3.5mm Stereo Jack
• Output Impedance: 4-8Ω

Package Includes:

1 x XH-M510 TDA7498 DC14-32V High Power Digital Power Amplifier Board
