xxD motor mount

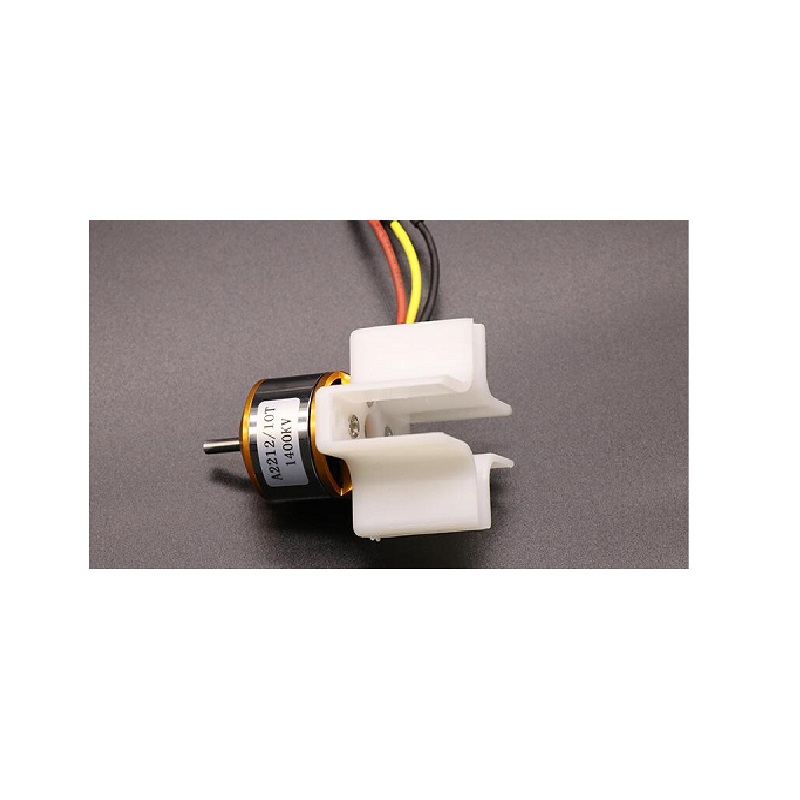

The xxD motor mount For 22xx series Brushless Motor is designed to fit the back of the 22mm motors and provide a method of mounting the motor to a model’s firewall.

The 22mm Cross Mount is made of strong Plastic and finished in a durable and attractive finish.

The mount weighs only 8 grams by itself. The hole spacing on the back of the mount measures 16mm center to center in one direction, and 19mm center to center on the other.

With this standard hole spacing, the Scorpion 22mm Cross mount will not only fit the Scorpion Motors; it will also fit the GWS 22mm outrunners, the Hacker A20 series outrunner. The Waypoint 22mm Outrunners, the AXI 22mm outrunners; or any other motor with a 16 or 19mm hole spacing.

Package Includes :

1 x xxD motor mount
