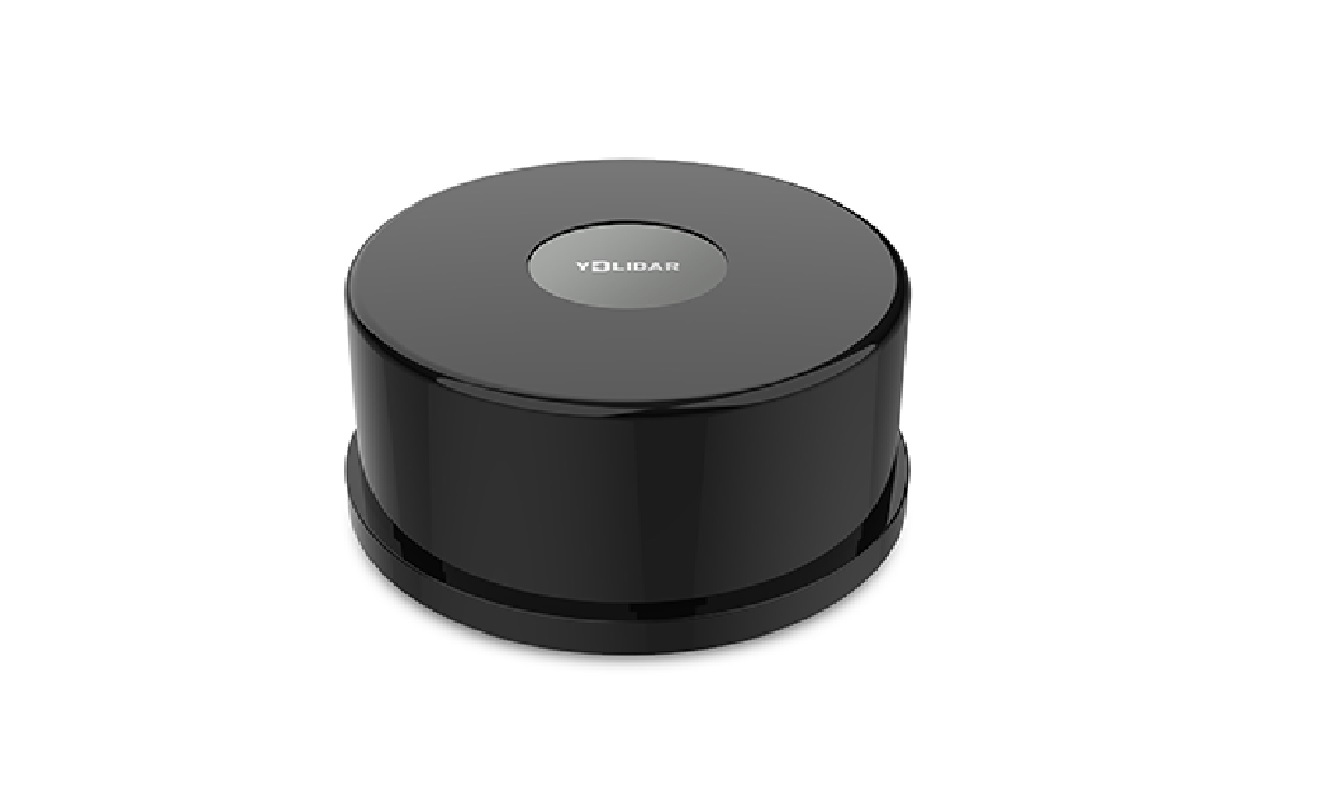

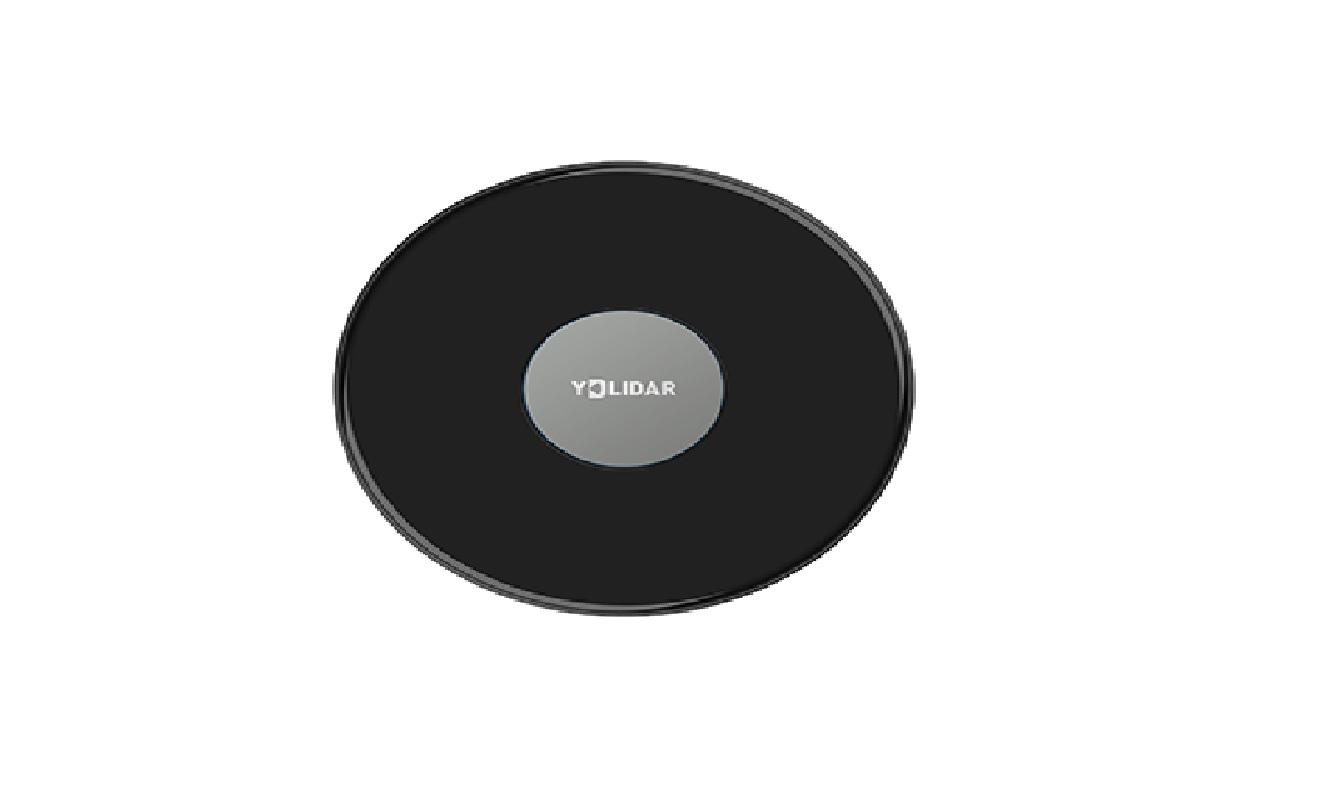

YDLIDAR TG30 Lidar – 360-degree Laser Range Scanner (30m)

12 People watching this product now!

SKU: rz24320911 Category: LiDAR Sensor

Description

YDLIDAR TG30 360° Laser Scanner (30 m). This Offers 360-degree omnidirectional scanning. Having a Compact structure, suitable for the integration. It Provides TOF (Time of Flight) ranging technology. Enclosed are housing and IP65 proof level.

YDLIDAR TG is a 360-degree two-dimensional rangefinder developed by the YDLIDAR team. Based on the principle of TOF, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.

Based on the principle of TOF, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precise distance measurement.

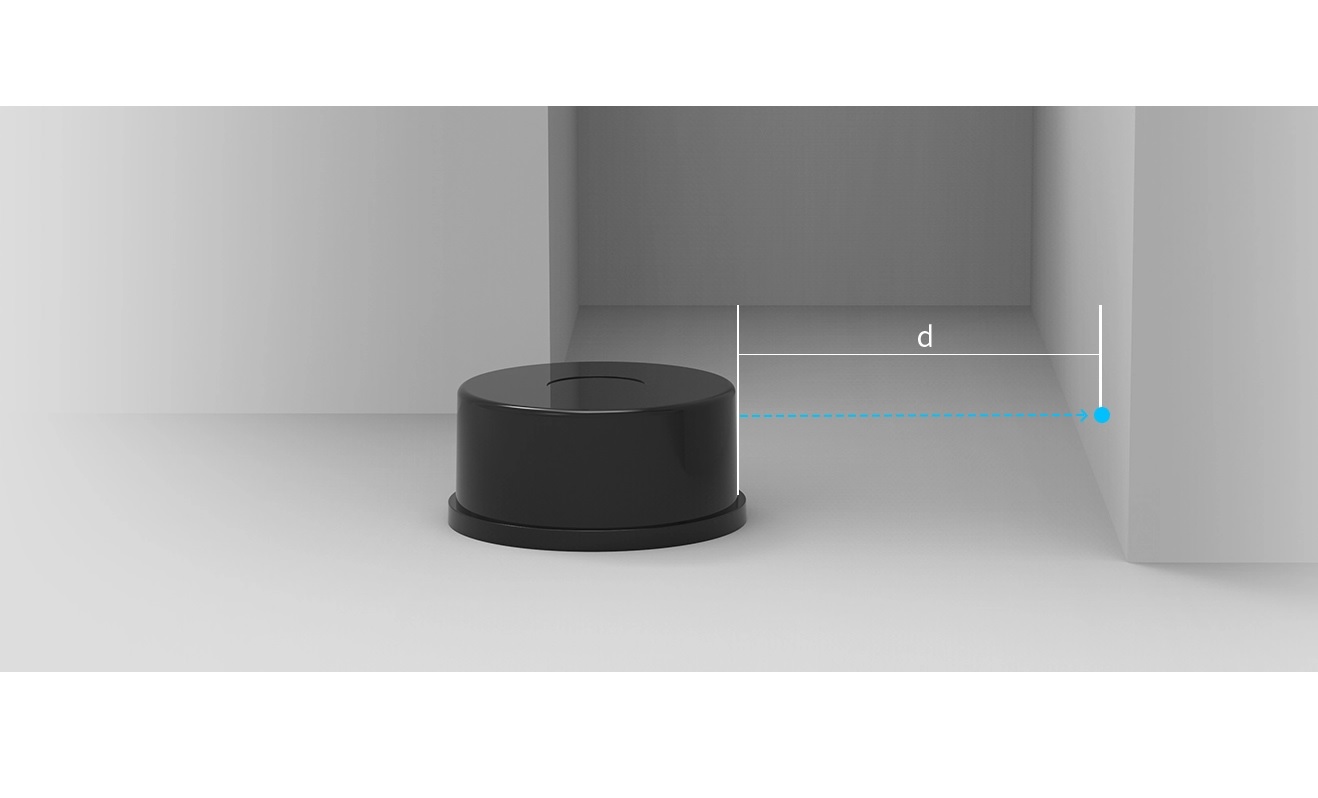

The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.TOF (Time of Flight) ranging technology ranging by the time difference of laser emitting and receiving, the ranging precision of TOF lidar does not change with distance, and even have higher accuracy for farther objects ranging.

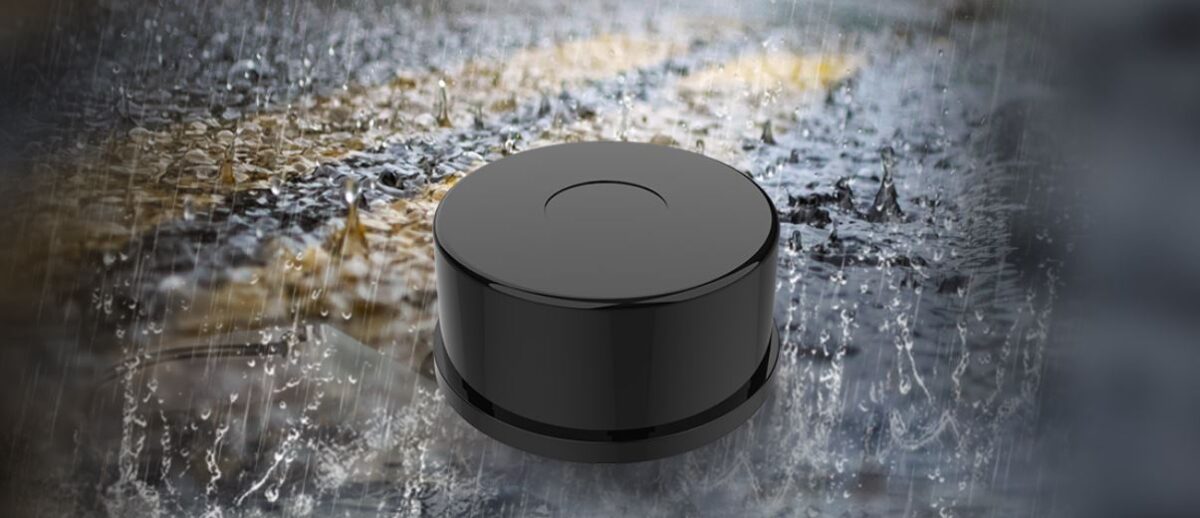

360-degree omnidirectional scanning: The range module inside rotates 360 degrees to obtain surrounding information. Compact structure, suitable for integration: Flat and thin, with a height of just 3.5 cm, it has greatly optimized the structure of integrated products. Enclosed housing, IP65 proof level: Enclosed design to protect core range module, enabling range in complex applications outdoors.

Applications:

Robot navigation and obstacle avoidance
Industrial automation
Robot ROS teaching and research
Regional security
Smart transportation
Environmental scanning and 3D reconstruction
Commercial robot /Robot vacuum cleaner

Features:

360-degree omnidirectional scanning ranging distance measurement
Small distance error, stable performance and high accuracy
IP65 protection level
Strong resistance to ambient light interference
Industrial grade brush-less motor drive for stable performance
Laser power meets Class I laser safety standards
5-12Hz adaptive scanning frequency (support customization)
Photomagnetic fusion technology to achieve wireless communication, wireless power supply
Ranging frequency up to 20kHz (support customization)

Package Includes :

1 x YDLIDAR TG30 360° Laser Scanner (30 m)
1 x USB adapter board
1 x Cable

Additional information

Ranging Resolution (cm)	4
Ranging Frequency	20000 Hz
Motor Frequency	5-15 Hz
Ranging Distance	0.05-30 m
Scanning angle	360
Maximum Supply Voltage (V)	5.2 V
Working Current(uA)	400-480 mA
Interface	VCC , GND , NC , Tx , Rx
UART Baudrate	512000
Operating Temperature Range (°C)	-10 to 50
Laser wavelength	895-915 nm
Laser power	85W
