YELLOW 12 mm 12V-24 V Momentory Metal Switch

SKU: rz24313144
In Stock


  1. Stainless steel material for long-term use
  2. Inbuilt Colorful Ring illumination LED
  3. Available in Various LED Color
  4. Bright daylight LEDs
  5. Color: Yellow
In Stock
This item is low in stock.

Item(s) left: 6

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

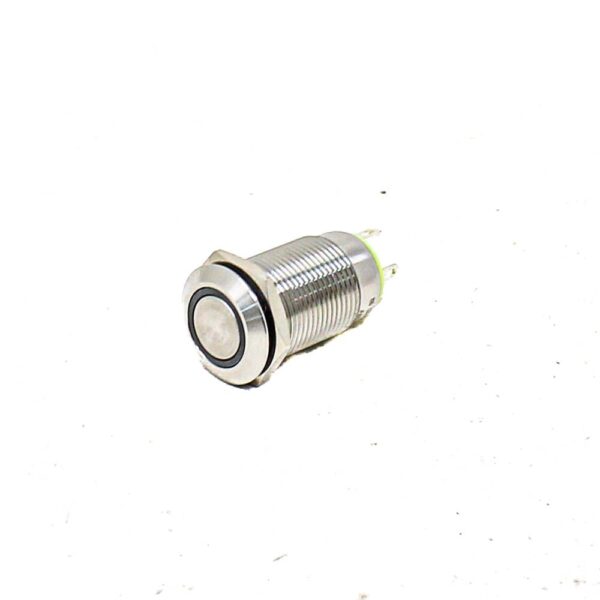

This Momentary Metal Pushbutton Switch is a perfect choice if you need a heavy-duty push-button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated Yellow LED ring. It is an SPDT with 12mm threading and 1mm pitch. It gives premium look to your dashboard or control panel with a Led Light ring around the push area of the switch. These switches are available in various LED light colors, which you can choose for your application purpose


  1. Momentary means it turns off as soon as your pressure is released
  2. Non-momentary switches maintain the positions even if we release the pressure.


  1. Stainless steel material for long-term use
  2. High-end appearance and good to touch
  3. Inbuilt Colorful Ring illumination LED
  4. Available in Various LED Color
  5. Independent LED terminals
  6. Bright daylight LEDs
  7. Single pole push to make and Push to break Function
  8. Front and rear panel seal to IP65
  9. Integral supply resistors
  10. TVS protection
  11. Good electrical conductivity
  12. Non-Momentary type push-button switch
  13. Rubber ring and hexagon nut to fix, Waterproof and Dustproof


  1. Operating Voltage (VDC): 12V-24 V
  2. Max. Operating Current (mA): 2000
  3. Light Color: Yellow
  4. On/Off Function: Push to ON and Push to OFF
  5. Switch Type: Momentary
  6. Mounting Hole Diameter (mm): 12
  7. Contact Type: Solder Type
  8. Contact Material: Silver Alloy
  9. Contact Resistance: ≤50 MΩ
  10. Insulation Resistance (MΩ): ≥1000
  11. Operating Temperature Range (°C): -20 to 55
  12. Operation Force: About 3-5N
  13. Body Material:  Stainless Steel and Plastic
  14. Mech. & Electrical Lifecycle: ≈ 100,000
  15. Protection Standard: IP65

Package Includes:

1 x YELLOW 12 mm 12V-24 V Momentary Metal Switch
