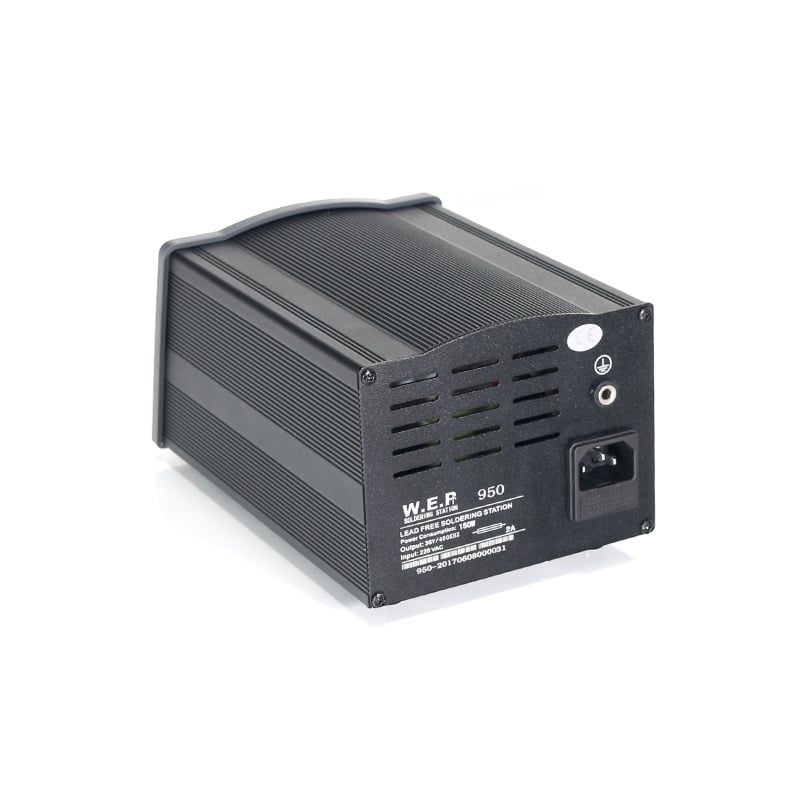

Yihua 950 150W High Frequency Industrial Precision Professional Soldering Iron Station

0 Reviews
Available on backorder

20,756.35 (Including tax)

  1. Rated voltage: AC 220V±10% 50Hz
  2. Output power: 150W
  3. Working environment: 0~40℃ relative humidity<80%
  4. Storage environment: -20~80℃ relative humidity<80%
  5. Body size: 20 x 12.6 x 9.8CM
  6. Weight 4.6KG

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%19,718.53 (Including tax)
11 - 208%19,095.84 (Including tax)
21 - 4010%18,680.72 (Including tax)
41 - 10012%18,265.59 (Including tax)
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)
SKU: rz2436275

Product details

Yihua 950 150W High Frequency Industrial Precision Professional Soldering Iron Station. High-frequency eddy current heating; fast temperature rise and return; more suitable for high-temperature soldering situations; high-temperature lead-free soldering. Microcomputer control; temperature adjustable via simple key presses; digital temperature correction; precise temperature control; easy-to-master soldering process. 150 W large power design; LCD screen. Automatic hibernation and automatic shutoff function (optional) Password-protected temperature lockout function, easy for management and effective to safeguard the production process.






Features:

  1. High-frequency eddy current heating; fast temperature rise and return; more suitable for high temperature soldering situations; high-temperature lead-free soldering.
  2. Microcomputer control; temperature adjustable via simple key presses; digital temperature correction; precise temperature control; easy-to-master soldering process.
  3. 150 W large power design; LCD screen.
  4. Automatic hibernation and automatic shutoff function (optional)
  5. Password-protected temperature lockout function, easy for management and effective to safeguard the production process.
  6. Electricity prevention design; several types of iron heads can be chosen.
  7. Buzzer is installed inside the soldering station as an alarm. Alarms when the temperature reaches the set temperature, or the soldering station is operating abnormally and the soldering station goes into hibernation or automatic shutdown.
  8. The station has good stability and high configurability and is able to perform high-strength soldering;
  9. The outer enclosure of the main machine is made of a superior iron alloy, which is immune to high-temperature damage and is durable.

Package Includes:

1 x Yihua 950 150W High-Frequency Industrial Precision Professional Soldering Iron Station

Additional information

Rated Voltage(V)

AC 220V±10% 50Hz

Output Power(Watt)

150W

Working Temperature Range (°C)

0~40℃ relative humidity<80%

Work Voltage

AC 26V±10% 50Hz

Temperature Stability

±1℃ (Static)

Display Type

LCD

PID Temperature correction cycle

rapidly 20ms

Tip ground impedance

<2Ω

Tip of ground voltage

<2mV
