₹286.33 (Including tax)
Discount per Bulk Quantity
| Quantity | Discount | Price |
|---|---|---|
| 5 - 10 | 5% | ₹272.02 (Including tax) |
| 11 - 20 | 8% | ₹263.42 (Including tax) |
| 21 - 40 | 10% | ₹257.69 (Including tax) |
| 41 - 100 | 12% | ₹251.97 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders
Winsen Electronics manufacture air quality sensor and VOC sensor MQ135 for IAQ monitor application.
Sensitive material of MQ135 gas sensor is SnO2, which with lower conductivity in clean air. When target pollution gas exists, the sensor’s conductivity gets higher along with the gas concentration rising. Users can convert the change of conductivity to correspond output signal of gas concentration through a simple circuit.
MQ135 gas sensor has high sensitivity to ammonia gas, sulfide, benzene series steam, also can monitor smoke and other toxic gases well. It can detect kinds of toxic gases and is a kind of low-cost sensor for kinds of applications.
MQ135 gas sensor has high sensitivity to ammonia gas, sulfide, benzene series steam, also can monitor smoke and other toxic gases well. It can detect kinds of toxic gases and is a kind of low-cost sensor for kinds of application
Applications:
It is widely used in domestic gas alarm, industrial gas alarm and portable gas detector.
It has good sensitivity to toxic gas in wide range, and has advantages such as long lifespan, low cost and
simple drive circuit &etc.
Note: For more info Refer manualÂ

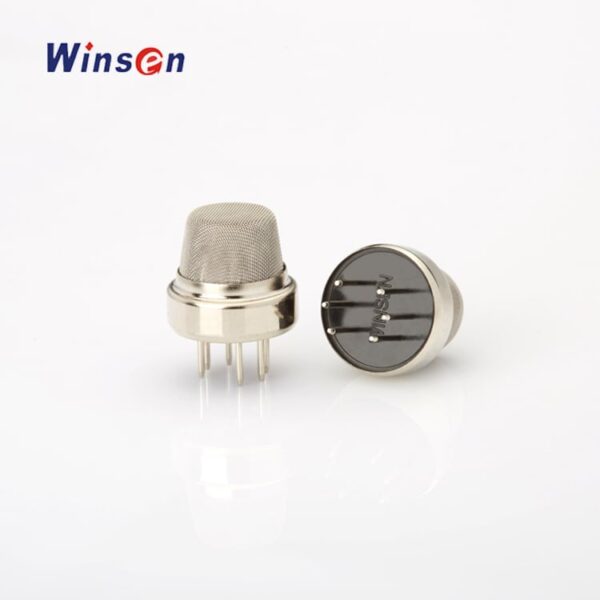

1 x Winsen MQ135 Semiconductor Sensor for Air Quality
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Out of stock
Out of stock
| Product Name |
Figaro TGS 2600 Air Quality Sensor |
|---|---|
| Input Voltage (V) |
5.0±0.2V AC/DC |
| Load Resistance |
variable 0.45kΩ min. |
| Heater Resistance (Ω) |
approx 83Ω at room temp. (typical) |
| Heater current (mA) |
42±4mA |
| Heater power consumption (mW) |
210 |
| Sensor Resistance (kΩ) |
10kΩ ~ 90kΩ in air |
| Sensitivity (change ratio of Rs) |
0.3~0.6 Rs (10ppm of H2)/ Rs air |
Out of stock
| Model No. |
TGS2610-C00 |
|---|---|
| Heater Current |
56±5mA |
| Heater Resistance |
approx 59Ω at room temp. |
| Heater Voltage |
5.0±0.2V DC |
| Load Resistance |
variable 0.45kΩ min |
| Sensing Principle |
MOS type |
| Circuit Voltage |
5.0±0.2V DC |
| Sensor Resistance |
1.0~10.0kΩ in 1800ppm iso-butane |
| Standard Package |
TO-5 metal can |
| Target Gases |
Butane ,LP gas |
| Test Gas Conditions |
iso-butane in air at 20±2˚C ,65±5%RH |
| Heater power consumption |
280mW VH = 5.0V DC |
Out of stock
| Model number |
TGS5141-P00 |
|---|---|
| Output current in CO |
1.2~3.2nA/ppm |
| Target Gases |
Carbon monoxide |
| Typical detection range |
0 ~ 5 ,000ppm |
| Baseline offset(*1) |
<±10ppm equivalent |
| Operating temperature |
10ËšC ~ +50ËšC (continuous) -20ËšC ~ +60ËšC (intermittent) |
| Operating humidity |
10 ~ 95%RH (no condensation) |
| Response time (T90) |
within 60 seconds |
| Storage conditions |
-10ËšC ~ +50ËšC (continuous) -20ËšC ~ +60ËšC (intermittent |
| Standard test conditions |
20±2˚C ,40±10%RH |
| Weight |
approx. 2.5g |
