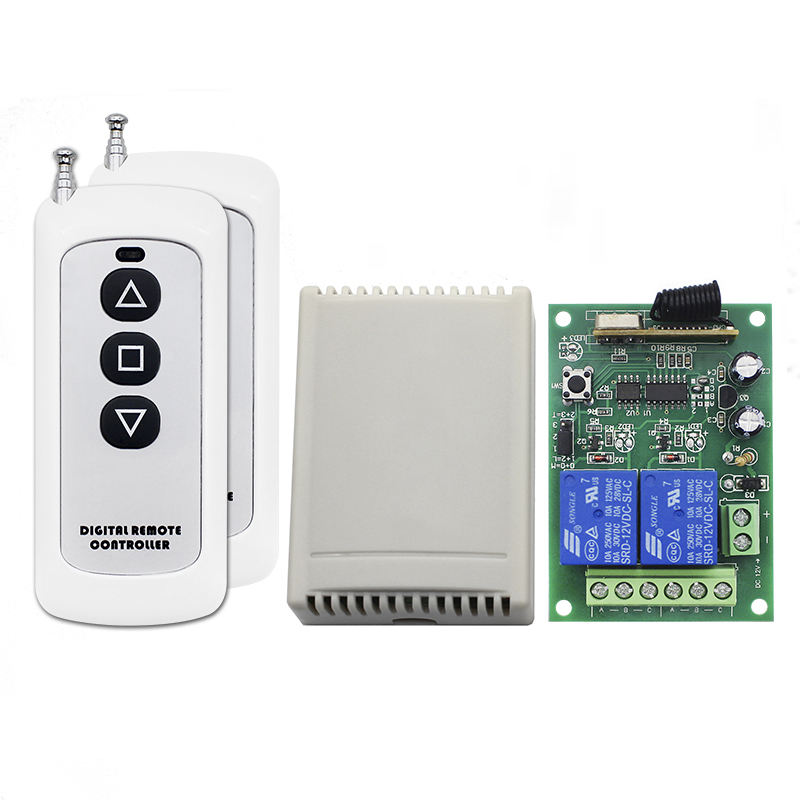

12V/24V 433mhz Frequency wireless remote motor Forward Reverse 2 Channel control switch

It has 2 relays which can make the equipment turn or reverse, on/off and so on come true. Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance. The volume is small and the performance is stable and reliable, high receive sensitivity. It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc. It can learn 2260 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control. it can learn more than 18pcs different remote controls.

Press and hold any button on the remote control, press the learning button again, the indicator light flashes after the light, This time that the switch has received a remote control signal; please click on the button just used to hear the sound of the relay beating, Remark: The controller can learn fixed code, learning code and other 16 different encoding, any button remote control, in turn will be cleared in accordance with the earliest learn of the remote control

Features:

• RF Frequency: 433MHZ/315MHZ
• Working Voltage: AC220V, 12V DC, 24V DC optional
• Working emperature:-20℃- +70℃
• Quiescent Current: ≤8mA
• Remote Control Distance: 100 meter (in open environment)
• Support remote control type: learning code,Fixed code
• Output way : Momentary. Toggle .Latched Adjusted by Jumper
• Code type: Learning code Add Controller by the Learning Button on the receiver
• Wiring Method: Adjustable wiring terminal
