200PCS 6mm Light Push Button Switch Kit (10 Shaft size)

SKU: 1031016
In Stock

559.00

  1. Through-hole design.
  2. Shaft Shape: Round
  3. Base Size (mm): 6mm
  4. Middle stroke (1.05mm)
  5. Shaft Size: 10 different Size (find the details in Package Includes section below)
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

Hey, geeks there do you frequently need a different size of tactile pushbuttons/switches on your workbench? then this 200Pcs. 6 x 6mm Light PushButton Switch Kit is a must-buy product for you. In this kit, you will get  10 different sizes of PCB hole mountable push to ON buttons with 20 pcs of each variant.

6 x 6 x ** mm Tactile Push Button Switch is widely used as a standard input “button” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

These tactile switches also offer reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

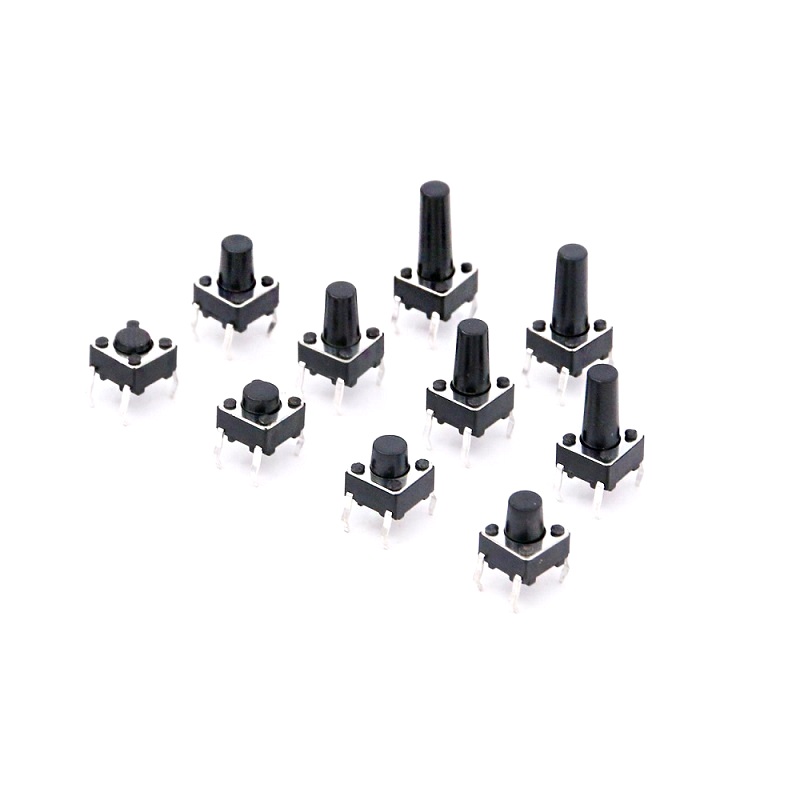

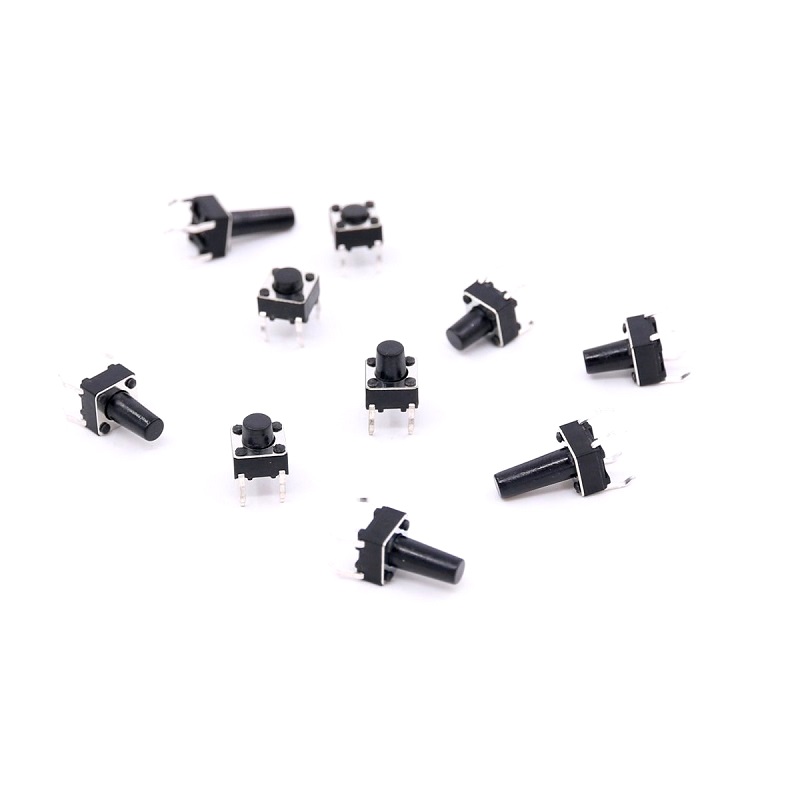

The base size of each variant of  buttons in kit is the same which is 6 x 6 mm with 10 different sizes of Height Shaft

Note: We Stock the product from various suppliers, so you may receive products from any of the brands as per Availability.


Specifications and Features :

  1. Through-hole design.
  2. Shaft Shape: Round
  3. Base Size (mm): 6mm
  4. Middle stroke (1.05mm)
  5. Shaft Size: 10 different Size (find the details in Package Includes section below)
  6. High operating force (3.0N or 3.6N) suited to automotive equipment requirements
  7. The long life of 300,000 cycles realized despite the high operating force
  8. Used in the fields of electronic products, household appliances, and more.
  9. High precision mechanism design offers acute operation and long service life.
  10. Compact and lightweight, easy to carry and dismantling.
  11. Good electrical conductivity.

Package Includes :

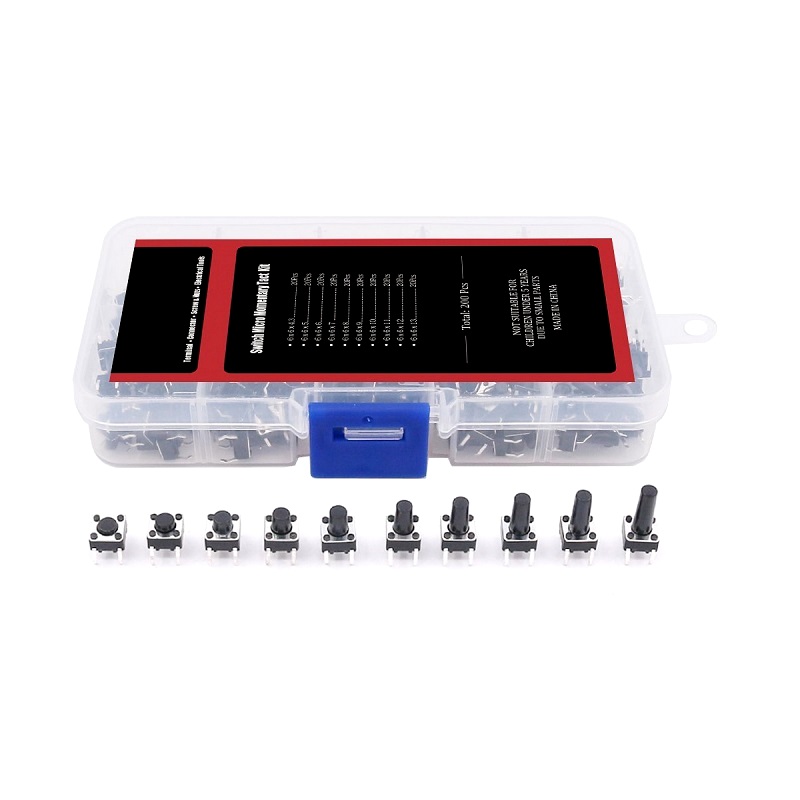

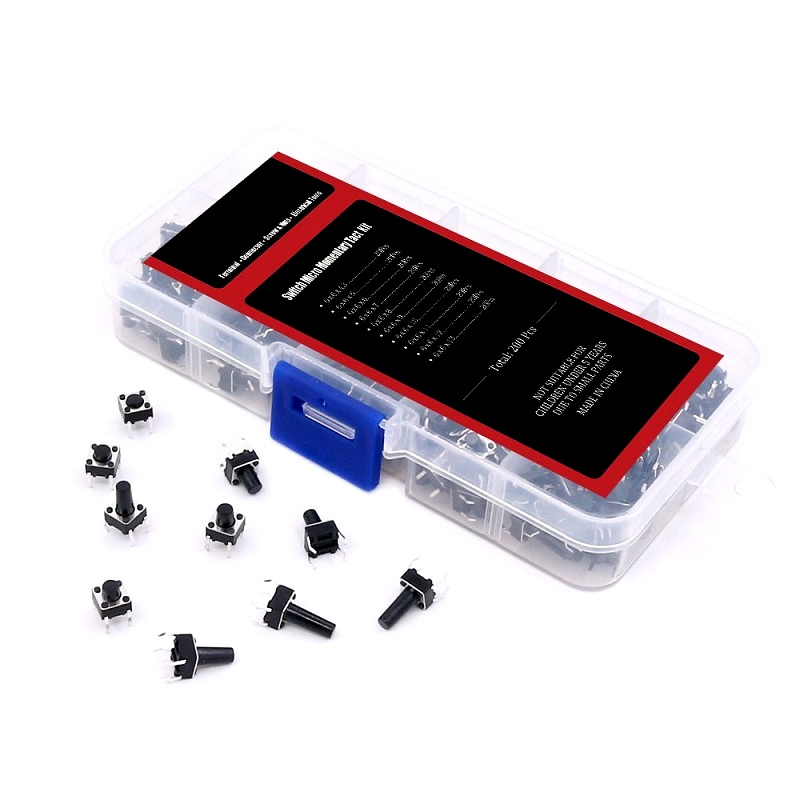

1 x 200PCS 6mm Light Push Button Switch Kit (10 Shaft size)

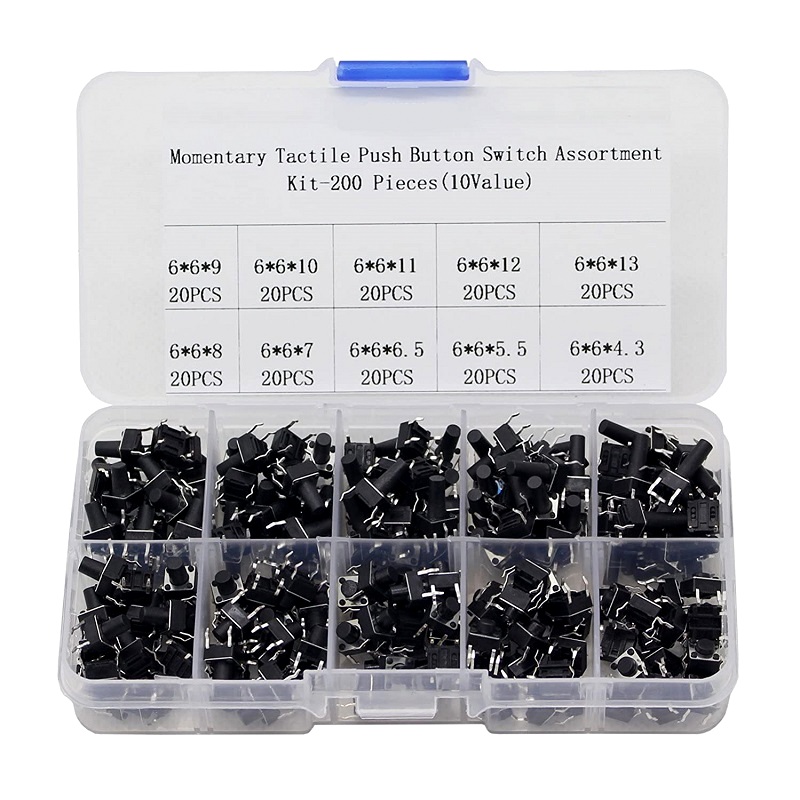

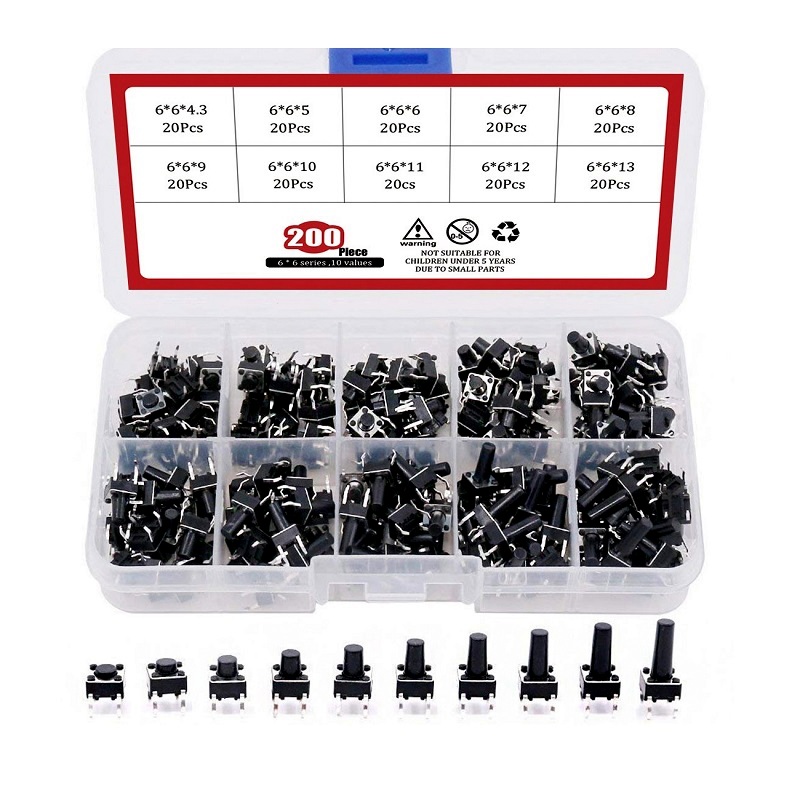

Kit Includes:

6 x 6 x 4.3 – 20Pcs
6 x 6 x 5 – 20Pcs
6 x 6 x 6 – 20Pcs
6 x 6 x 7 – 20Pcs
6 x 6 x 8 – 20Pcs
6 x 6 x 9 – 20Pcs
6 x 6 x 10 – 20Pcs
6 x 6 x 11 – 20Pcs
6 x 6 x 12 – 20Pcs
6 x 6 x 13 – 20Pcs
