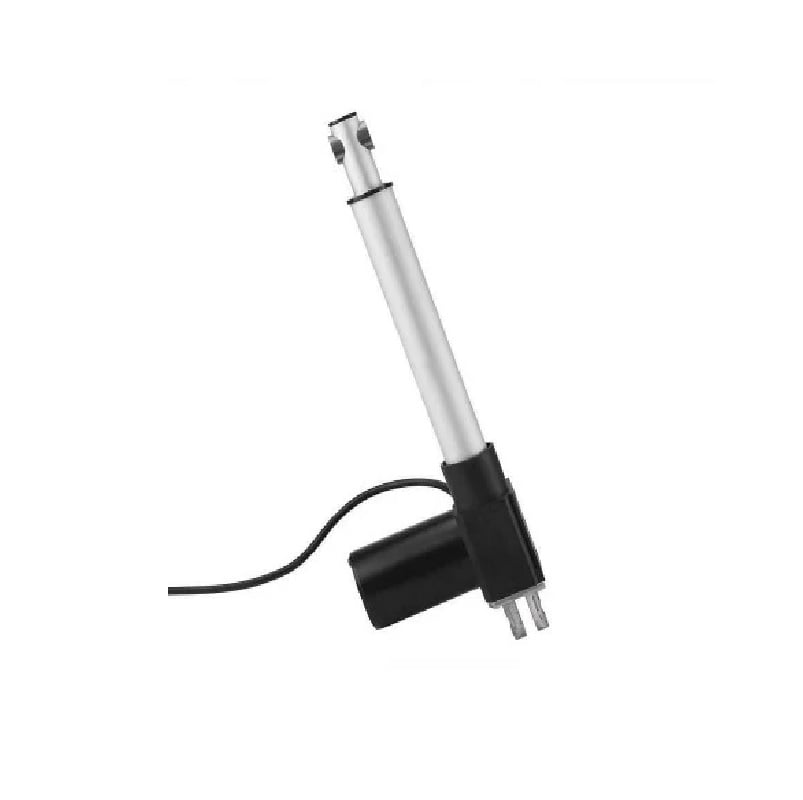

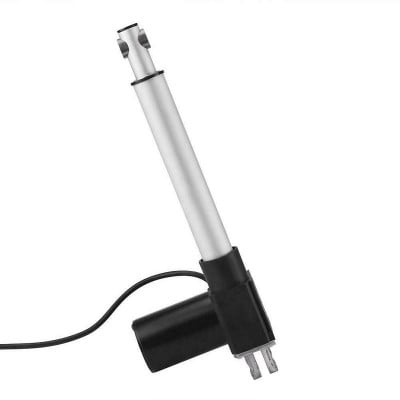

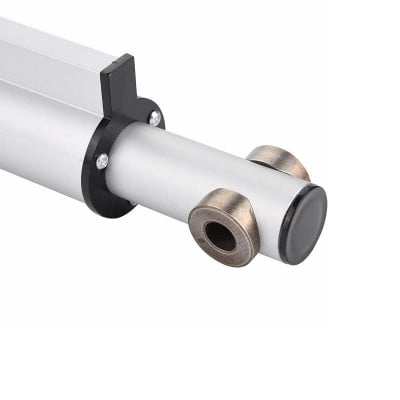

24V 500MM Stroke Length Linear Actuator 6000N 5mm/s

7,509.64 (Including tax)

  1. Product: Linear Actuator
  2. Permanent magnet DC motor drive: Voltage 24VDC
  3. Self Locking Force: 6000N
  4. Stroke Length (mm): 500
  5. Working temperature: -20ºC to +100ºC

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%7,134.16 (Including tax)
11 - 208%6,908.87 (Including tax)
21 - 4010%6,758.67 (Including tax)
41 - 10012%6,608.49 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

18 People watching this product now!
SKU: rz24310684 Category:
Description
This Miniature Linear Actuator Stroke Length 500MM, 5mm/S, 6000N, 12V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the push-rod.
It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of the drive motor, reduction gear, screw, nut, guide sleeve, push-rod, sliding seat, shell, micro-motion control switch, etc. With Reliable performance, sensitive action stable running. Good environment adaptability.
High-quality metal material, high-performance motor, built-in stroke switch. Maximum push/pull is up to 6000N, and stroke speed is up to 5mm/s when under no-load. These are commonly used in automotive, medical devices and engineering industry, agricultural machinery
Applications:
  1. Industrial
  2. Agricultural machinery
  3. Construction
  4. Clean sweeping vehicles
  5. Vessels
  6. cargo

Features:

  1. Permanent magnet DC motor drive: Voltage 24VDC
  2. Self Locking Force: 6000N
  3. Working temperature: -20ºC to +100ºC
  4. Aluminium frame and extension tube
  5. Compact Design
  6. Built-in Limit Switch
  7. Low Noise
  8. Moisture-proof Surface
  9. Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.

Specifications:

  1. Stroke Length (mm): 500
  2. Operating Voltage (VDC): 24
  3. Body Material: Aluminum Alloy
  4. Operating Temperature Range (°C): -20 to 85
  5. Trip: 5MM/S
  6. Duty Cycle 2 min on/18min OFF
  7. Self Locking Force: 6000N

Package Include:

1 X 24V 500MM Stroke Length Linear Actuator 6000N 5mm/s
