Description

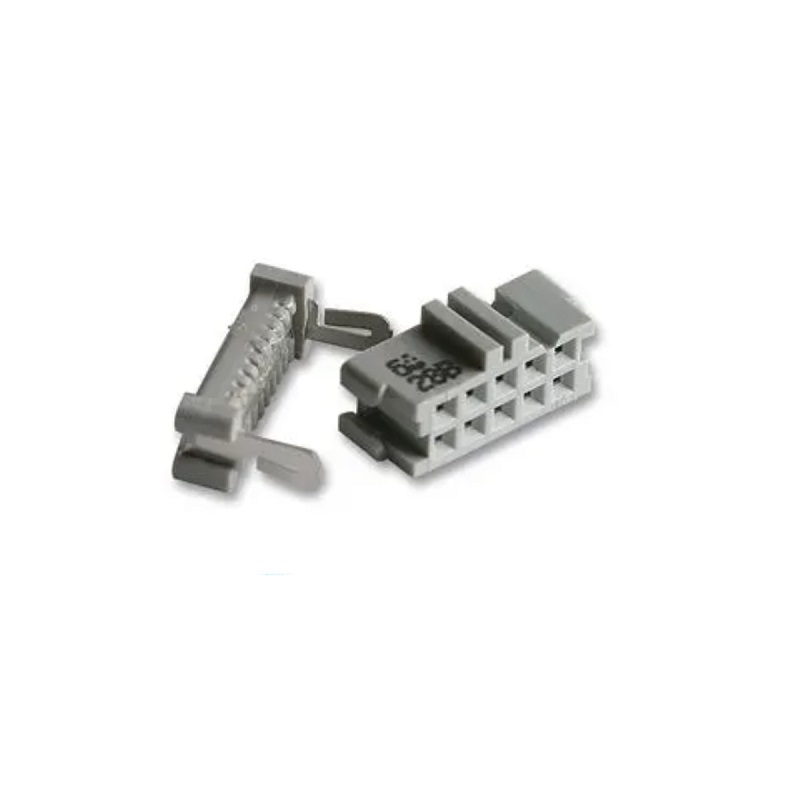

The 3473-6610 is a 10-way 0.100 x 0.100-inch Wiremount Socket for 0.050-inch pitch cable, with gold-plated copper alloy contacts and IDC/IDT termination. This 3000 series socket is glass filled polyester (PBT) insulated, mates with 3M headers, plugs and pin strips for quick connect/disconnect capability. This wiremount socket has open end cover, military polarization with center bump and 10-contacts for plastic strain relief. Transfer adhesive on covers provides precision alignment between connector and cables resulting in high yield terminations.

Features:

1. Grey colour
2. Availability of pull tab to facilitate proper unplugging
3. Accepts flat cable or discrete wire
4. UL94V-0 Flammability rating
5. 1A Current rating
6. 1 x 10⁹R at 500VDC Insulation resistance

Specifications:

1. IDC Connector Type: IDC Receptacle
2. Contact Gender: Female
3. Pitch Spacing: 2.54mm
4. No. of Rows: 2 Row
5. No. of Contacts: 10Contacts
6. Connector Mounting: Cable Mount
7. Contact Material: Copper Alloy
8. Contact Plating: Gold Plated Contacts
9. Product Range: 3000 Series

Package Includes:

1 x 3473-6610-SOCKET, IDC, 10WAY
