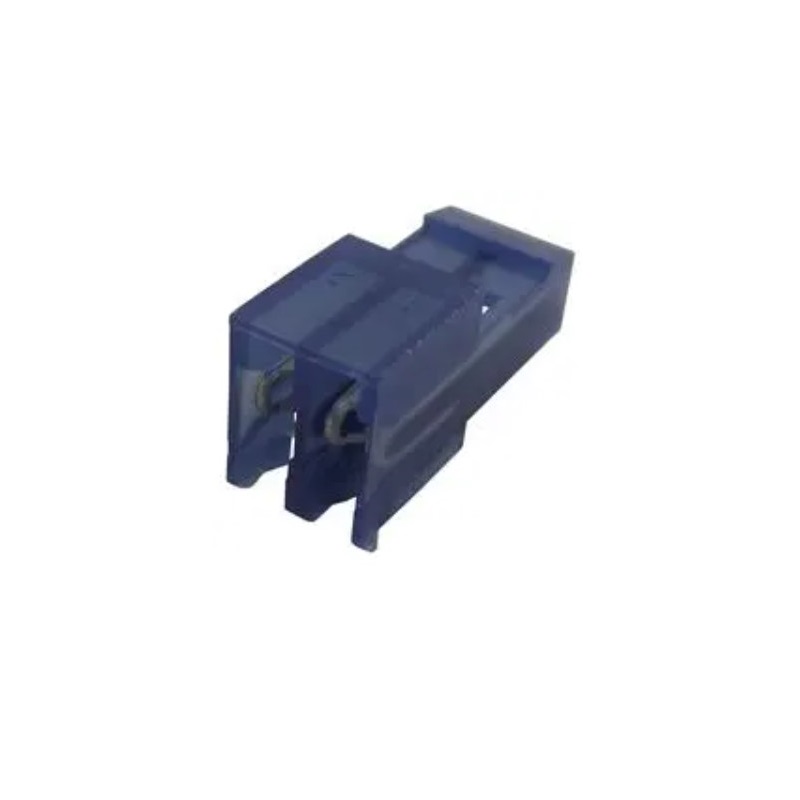

3-640442-2-RECEPTACLE, IDC, 2.54MM, 26AWG

The 3-640442-2 is a 2-position 1-row Wire-to-Post Closed-end Receptacle with socket type tin-plated copper alloy contacts and standard nylon housing. The strain relief IDC connector has nickel-pated underplate, locking lance contact retention and locking ramp mating retention. It is suitable for use with MTA-100 series headers and MTA-100-series IDC posted connectors.

Features:

1. 250VAC Operating voltage
2. 90° Cable exit angle
3. UL94V-2 Flammability rating

Specifications:

1. IDC Connector Type: IDC Receptacle
2. Contact Gender: Female
3. Pitch Spacing: 2.54mm
4. No. of Rows: 1 Row
5. No. of Contacts: 2Contacts
6. Connector Mounting: Cable Mount
7. Contact Material: Copper Alloy
8. Contact Plating: Tin Plated ContactsProduct Range: MTA-100 Series

Package Includes:

1 x 3-640442-2-RECEPTACLE, IDC, 2.54MM, 26AWG
