Description

09 18 510 6813 refers to a specific model of wire-to-board connector. Here is a breakdown of the individual parts of the product code and what they mean:

• 09: This is the product series or family.
• 18: This is the number of positions or contacts in the connector.
• 510: This is the pitch or spacing between the contacts in tenths of millimeters. In this case, the pitch is 5.10mm.
• 6813: This is the specific product variant or part number.

The “-WIRE-BOARD CONN” part of the description simply indicates that this is a connector designed to connect wires to a circuit board. The “FEMALE” designation means that this particular connector is designed to receive male pins or connectors. “10POS” means that this connector has 10 positions or contacts available for connecting wires.

Features:

1. Easy to use
2. Easy to install
3. Good quality Material

Specifications:

1. IDC Connector Type: Board In Connector
2. Pitch Spacing: 2.54mm
3. No. of Rows: 2 Row
4. No. of Contacts: 10Contacts
5. Connector Mounting: Cable Mount, Through Hole Mount
6. Contact Material: Brass
7. Contact Plating: Gold Plated Contacts
8. Product Range: SEK 18 Series

Package Includes:

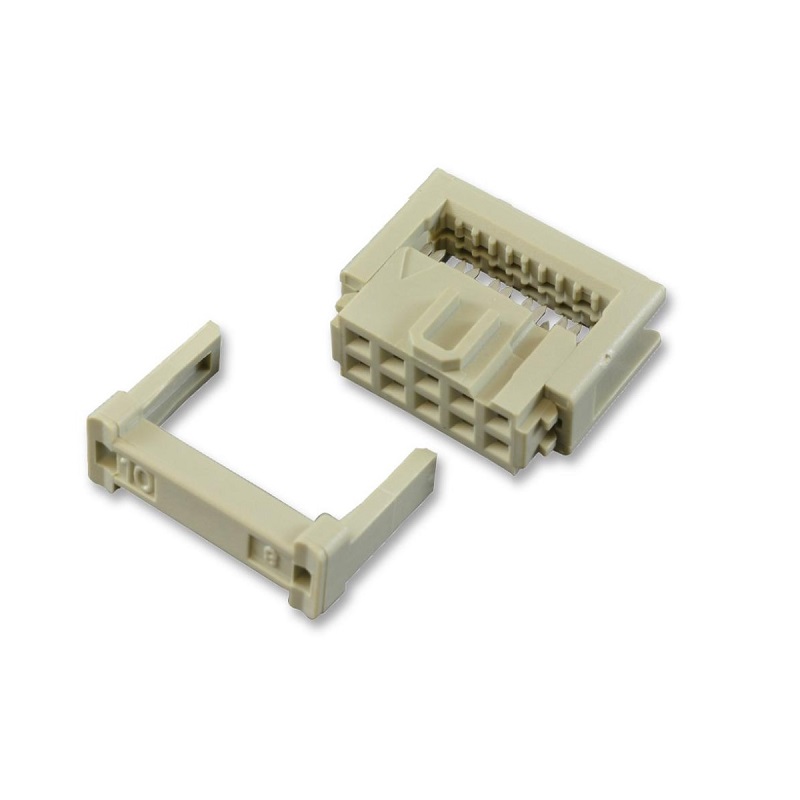

1 x 09 18 510 6813-WIRE-BOARD CONN, FEMALE, 10POS
