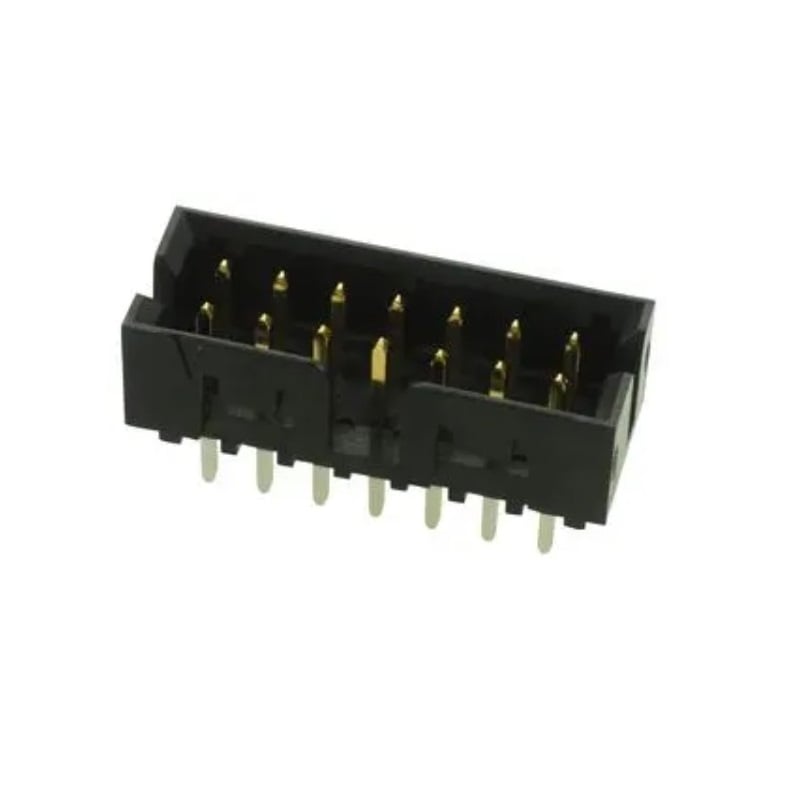

87831-1420-CONNECTOR, HEADER, 14POS, 2ROW

87831-1420-CONNECTOR, HEADER, 14POS, 2ROW

SKU: rz2434995
In Stock

₹140.00

  1. Color: Resin Black
  2. Durability: (mating cycles max) 100
  3. First Mate / Last Break: No
  4. Flammability: 94V-0
  5. Glow-Wire Capable: No
In Stock
This item is low in stock.

Item(s) left: 3

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

Pin Header, Square Pin, Wire-to-Board, 2 mm, 2 Rows, 14 Contacts, Through Hole Straight

Features:

  1. Early entry system crimp terminals
  2. Centre polarization key
  3. Locking ramps
  4. Centre polarization slot
  5. Locking windows
  6. Marking feature
  7. Operating temperature range from -55°C to +105°C
  8. UL94V-0 flammability rating
  9. Maximum current per contact is 2A
  10. Maximum voltage is 125V

Specifications:

  1. Operating temperature range: -55°C to +105°C
  2. Maximum voltage: 125V
  3. Color: Resin Black
  4. Durability: (mating cycles max) 100
  5. First Mate / Last Break: No
  6. Flammability: 94V-0
  7. Glow-Wire Capable: No
  8. Guide to Mating Part: No
  9. Keying to Mating Part: None
  10. Lock to Mating Part: Yes
  11. Material: Metal Phosphor Bronze
  12. Material: Plating Mating Gold
  13. Material: Plating Termination Tin
  14. Material: Resin Nylon
  15. Net Weight: 0.716/g
  16. Number of Rows: 2
  17. Orientation Vertical
  18. PC Tail Length: 2.50mm
  19. PCB Locator: No
  20. PCB Retention: None
  21. PCB Thickness: Recommended 1.60mm
  22. Packaging Type: Tube
  23. Pitch: Mating Interface 2.00mm
  24. Pitch: Termination Interface 2.00mm
  25. Plating min: Mating 0.381μm
  26. Plating min: Termination 1.905μm
  27. Polarized to PCB: No
  28. Shrouded: Yes

Package Includes:

1 x 87831-1420-CONNECTOR, HEADER, 14POS, 2ROW
