Description

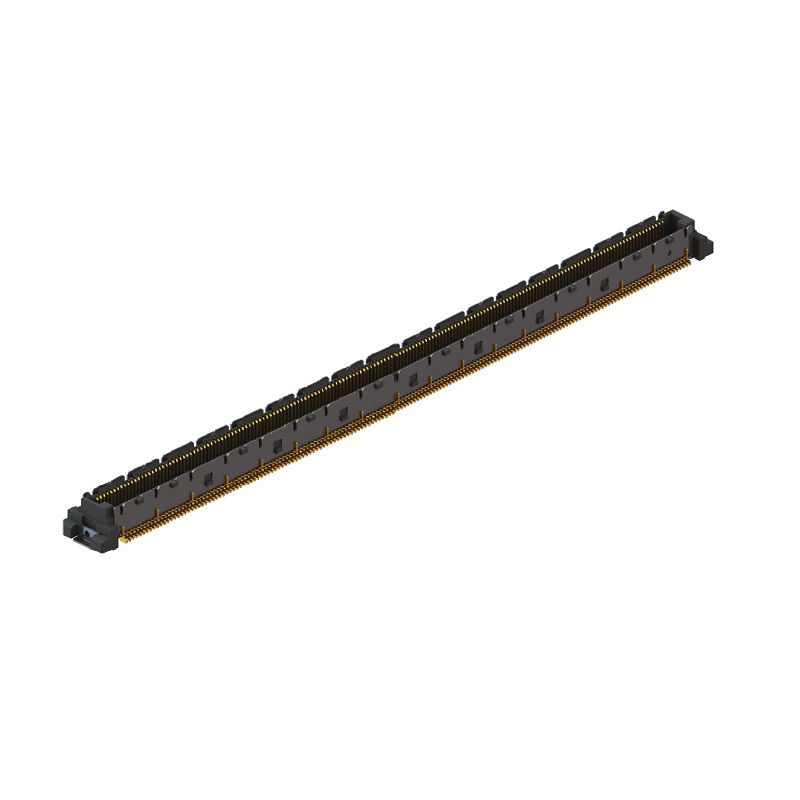

Mezzanine Connector, 5mm Height, COM Express, Header, 0.5 mm, 2 Rows, 220 Contacts, Surface Mount

Features:

1. Easy to use
2. Easy to install
3. Good Quality product

Specifications:

1. No. of contacts: 220 / 440
2. Termination technology: SMT
3. Operating temperature range: – 40 °C to + 85 °C
4. Insulator material: LCP, UL 94 V-0
5. Contact material: Copper alloy
6. Plating: Au over Ni
7. Grid: 0.5 mm
8. Mating force per pin max.: 0.9 N
9. Separating force per pin min.: 0.1 N
10. Durability: 30 mating cycles
11. Coplanarity max.: 0.1 mm
12. Operational current max.: 0.5 A
13. Operating voltage: 50 VAC
14. Contact resistance max.: 75 mΩ
15. Insulation resistance > 100 MΩ
16. Test voltage: 200 VAC
17. Data transfer rate: 5 Gbit/s (8 Gbit/s)
18. Soldering temperature: 260 °C per J-STD-020

Package Includes:

1 x 401-51101-51-CONN, STACKING, PLUG, 5MM, 220
