Waveshare Compute Module DSI Display Adapter, 22PIN To 15PIN

SKU: 1452922
In Stock

499.00

  1. Product: Waveshare Compute Module DSI Display Adapter, 22PIN To 15PIN
  2. 22PIN To 15PIN, Allowing The Compute Module To Use 15PIN DSI Displays
  3. Suitable For Compute Module IO Board
  4. Connecting With Compute Module IO Board Plus
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

The Compute Module DSI Display Adapter is a hardware device designed to enable the connection of a Raspberry Pi Compute Module to a Digital Serial Interface (DSI) display. The Compute Module DSI Display Adapter allows the Compute Module to be used in a wide range of applications, including digital signage, industrial control, and multimedia systems.

The DSI interface is a high-speed serial interface that is commonly used to connect displays to embedded systems like the Raspberry Pi. The Compute Module DSI Display Adapter provides a bridge between the Compute Module’s interface and the DSI interface of the display, enabling the two devices to communicate with each other.

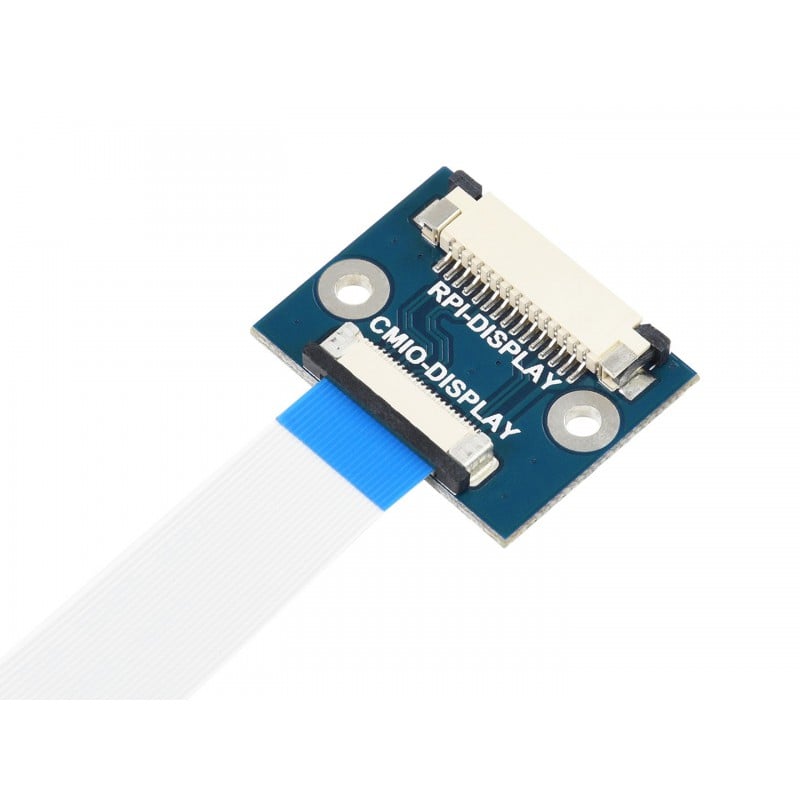

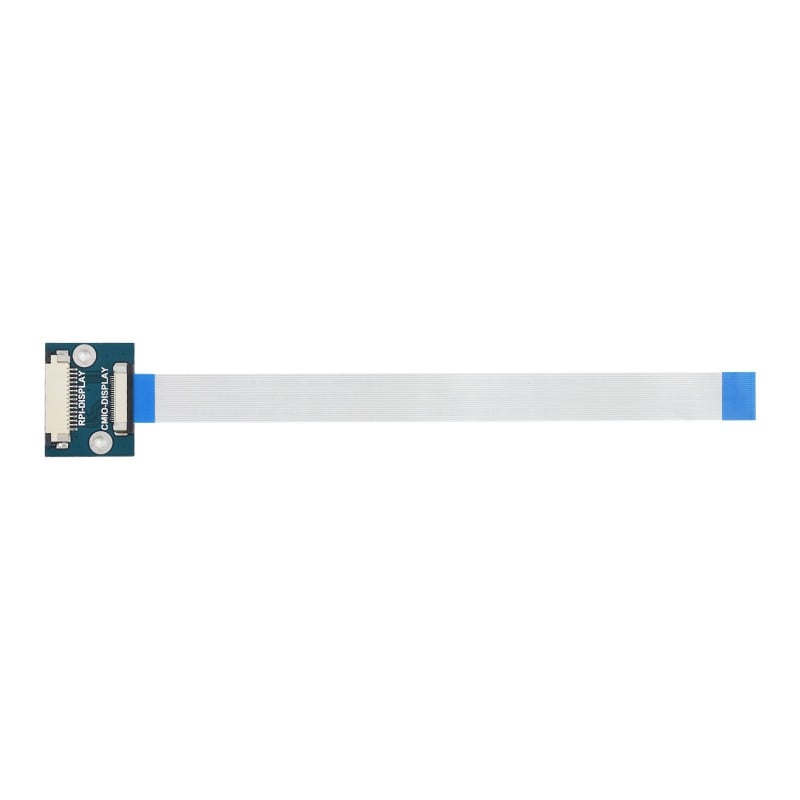

The Compute Module DSI Display Adapter is typically a small circuit board with a DSI connector on one side and a connector for the Compute Module on the other side. It may also include other features such as power management, backlight control, and touchscreen support, depending on the specific requirements of the application. Overall, the Compute Module DSI Display Adapter is a useful tool for developers and engineers who need to connect a Raspberry Pi Compute Module to a DSI display in their projects.


Features:

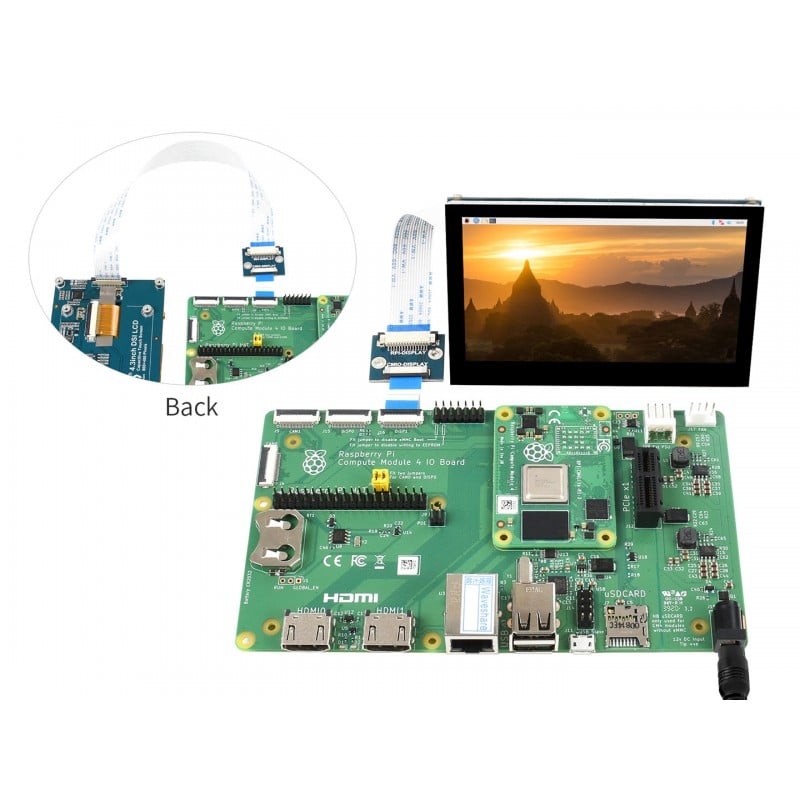

  1. 22PIN To 15PIN, Allowing The Compute Module To Use 15PIN DSI Displays
  2. Suitable For Compute Module IO Board
  3. Connecting With Compute Module IO Board Plus

Package Includes:

1 x Waveshare Compute Module DSI Display Adapter, 22PIN To 15PIN
