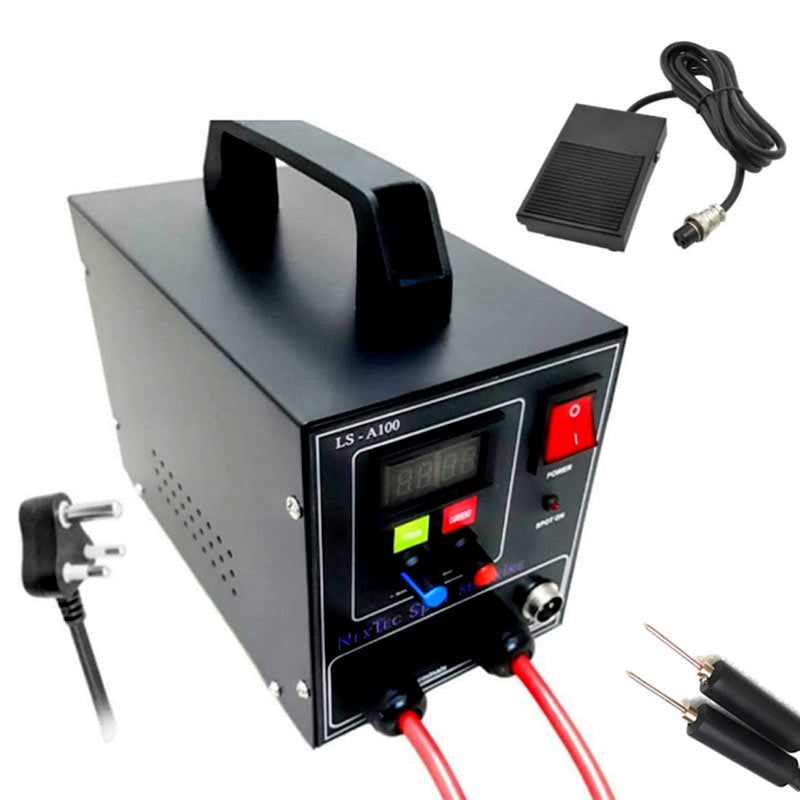

3KVA LS-A100 Portable Lithium Cell Spot Welding Machine for Battery Pack – Includes Double Pen and Pedal

(5.00)2 Reviews
Available on backorder

13,225.00 (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%12,563.75 (Including tax)
11 - 2010%11,902.50 (Including tax)
21 - 4015%11,241.25 (Including tax)
41 - 10020%10,580.00 (Including tax)
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)

Product details


This is a kind of fine quality spot welding machine control panel, which has single-pulse, time and current is adjustable, simple and easy to use. Equipped with digital display, you can see the time and current directly. This is 100A Current Controller System. Welding Thickness Up to 0.15mm Nickel Plated Strips.

Features & Details :

  • This control panel of the spot welding machine is independently developed for the LS-A100 or the high resistance welding.
  • The principle of silicone controlled phase shifting triggering is adopted to adjust the time and the current to achieve the purpose of welding.
  • Equipped with Digital Display, you can see the Time and Current directly, simple and easy to use.
  • Strong and weak electricity is isolated by optocoupler, safer to operate.
  • Using high-precision single-bit potentiometer, to ensure reliable and convenient input.

Specifications:

  • Model: LS-A100
  • Type: AC 220V 100A
  • Current Adjusting-range: 80A – 1200A (3.6kw)
  • Time Adjusting-range: 20ms – 1s
  • Maximum Output Current: 1200A
  • Item weight: 7kg

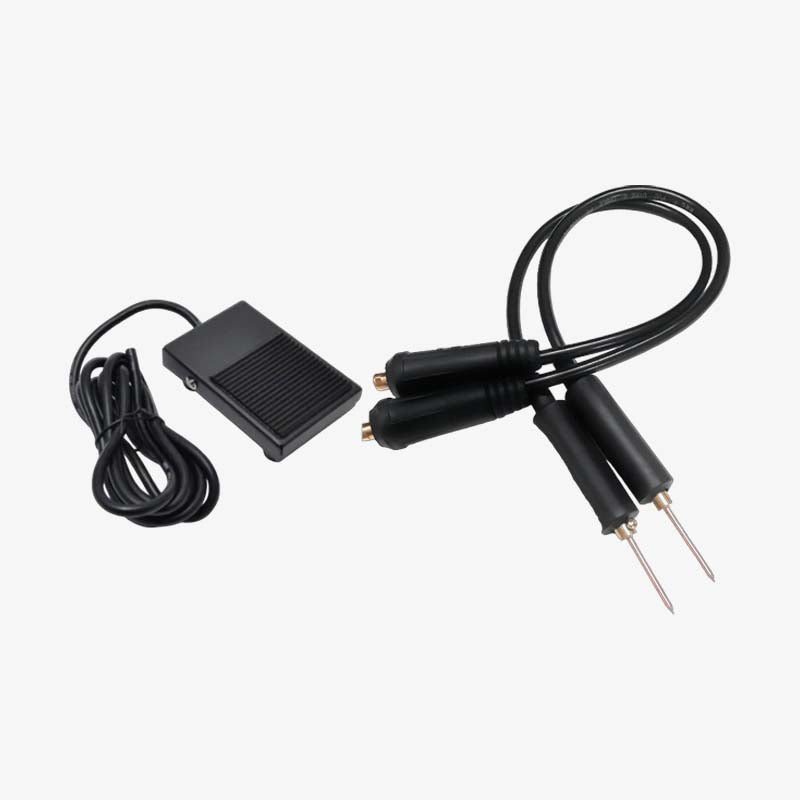

Packing Includes:

  1. 1 * Spot Welding Machine

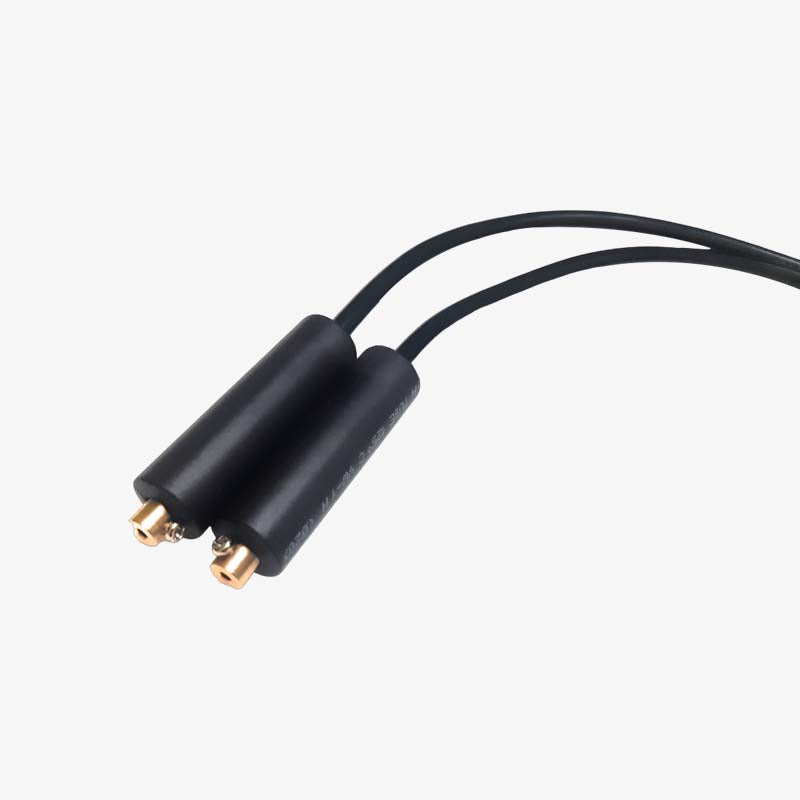

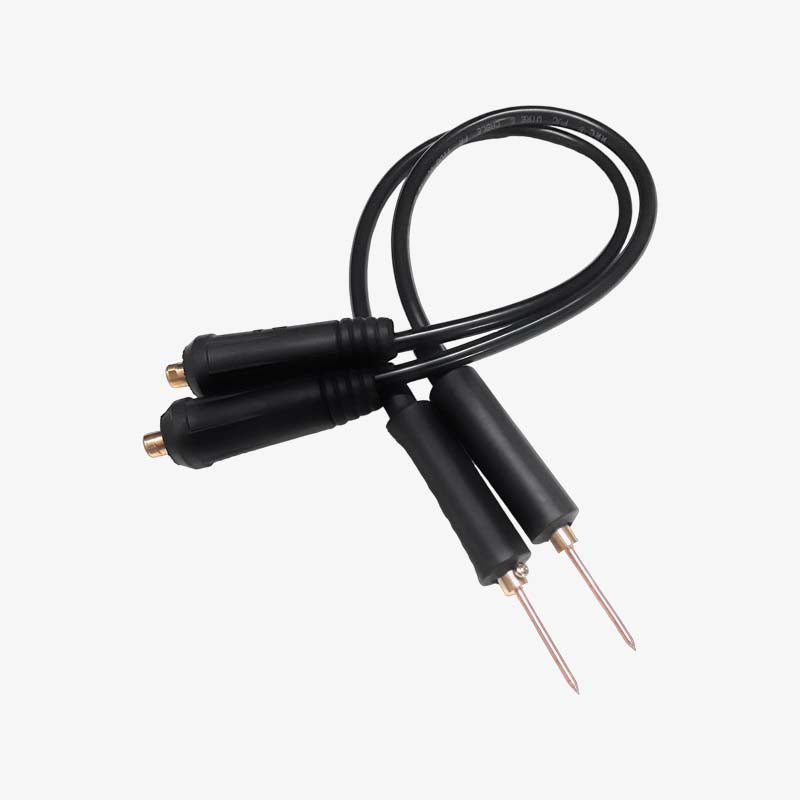

  2. 1 * Pair of Welding Pen
  3. 1 * Foot Pedal
