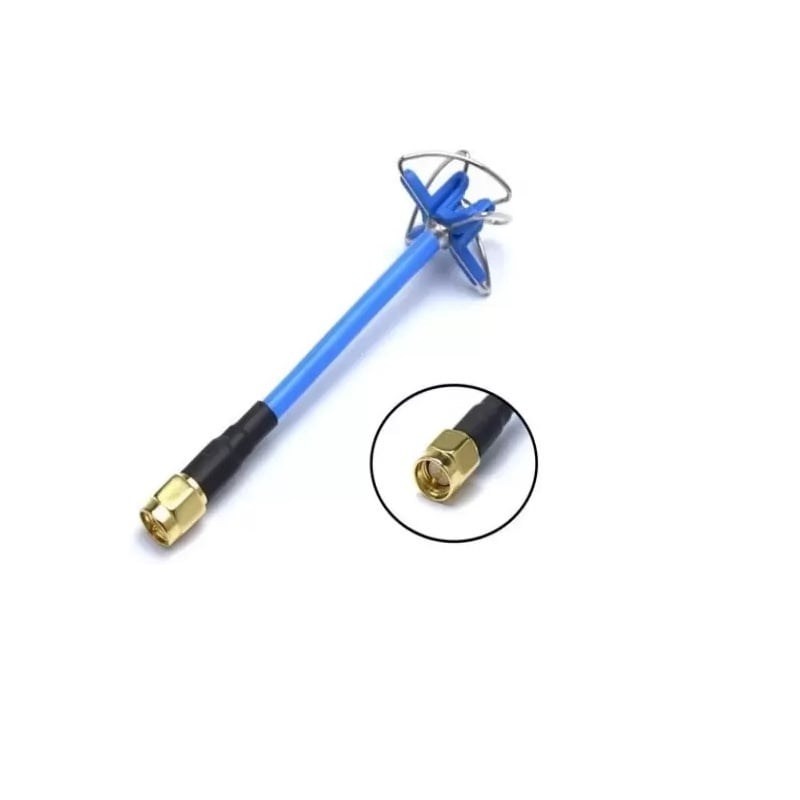

4 Leaf Clover RHCP SMA Male Antenna

12 People watching this product now!

SKU: rz24315488 Category: FPV Antennas and Trans-Receivers

Description

This 4 Leaf Clover RHCP SMA Male Antenna is a great way to increase the performance of your FPV system.

The circular polarization helps reject “multipath interference”, a common problem with standard dipole stock antennas. Proven to increase range and video clarity, circularly polarized antennas have become the standard after-market ‘essential’ upgrade for modern FPV systems. This is a matched Tx/RX pair for direct installation to any FPV set with SMA connectors.

Each antenna has extra reinforcement around the base of the cloverleaf assembly making them less susceptible to damage.

Features:

Specially designed for VTX/VRX for long range FPV.
Omnidirectional (compatible with video TX/RX).
Robust construction.
Connector：RP-SMA, Frequency Range：5.8GHz, Impedance：50Ω
Polarization：Circular polarization Right-handed(RHCP)
High efficiency, excellent anti-interference capability, stable signal transmission
Greatly increases video and audio signal.

Package Includes:

1 x 4 Leaf Clover RHCP SMA Male Antenna

Additional information

Frequency Range (GHz)	5.725~5.875
Standing Wave Ratio	<1.5
Polarization	Right Hand Circular Polarization
Gain (dbi)	3
Impedance (Ω)	50
Connector type	SMA Male
Color	Red
Length (mm)	88
Connector diameter (mm)	7.6
Weight (gm)	10
