4 x 18650 Lithium Battery Shield V8 V9 for Arduino ESP32 ESP8266 with On-Off Button

SKU: rz24312771
Out of stock

919.00

Add to Wishlist
Add to Wishlist
  1. Buttons: 1. Voltage Switch, 2. ON-OFF
  2. Working Temperature: -20 °C~70 °C
  3. Output Port: USB or Expansion port
  4. Output Parameters: 5V/3A or 3V/1A
  5. Conversion Efficiency: up to 95%
Out of stock

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

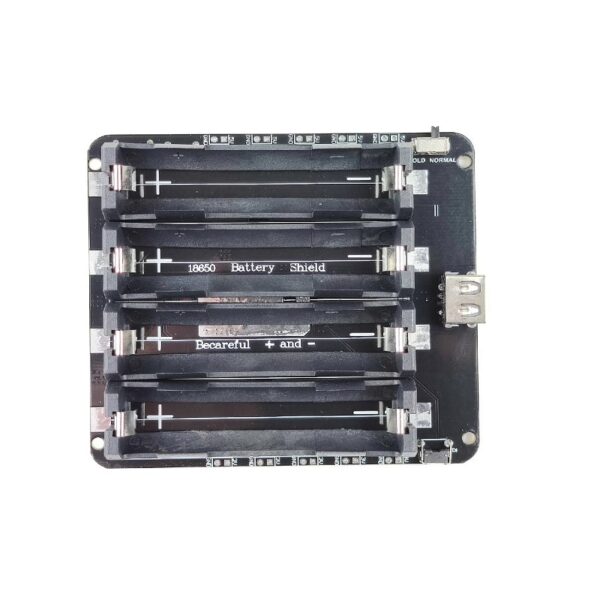

This is a 4x 18650 Lithium Battery Shield V8 V9 Mobile Power Expansion Board Module 5V/3A 3V/1A Micro USB for Arduino ESP32 ESP8266. This mobile power supply has a built-in lithium battery protection IC, which has overcurrent, overvoltage, Under voltage protection, and the module is a portable mobile power supply that supports 3V/1A and 5V/3A two voltage outputs with an onboard voltage switching and ON-OFF button

Installation of the battery must be determined positive and negative, the board has been clearly marked positive and negative Or Installation errors will burn out the module. The battery voltage works normally from 3.2V to 4.2V. 5V voltage output rated current is 3A, maximum support 3.6A current, the output of current depends on the quality of the 18650 battery.

Note: This product comes from different brands. We will ship it randomly according to availability.


Features:

  1. Supports 3V 1A voltage outputs.
  2. Supports 5V 3A voltage outputs.
  3. Micro USB charging current is 600mA-800mA.
  4. Supports up to two 18650 batteries. It is recommended to use two 18650 batteries, which can be longer.

Package Includes:

1 x 4 x 18650 Lithium Battery Shield V8 V9 for Arduino ESP32 ESP8266

Additional information

Output Voltage(V)

3V/5V

Output Port Type

USB or Expansion

Input Port

MicroUSB

Conversion Efficiency(%)

95 %

Length (mm)

100

Width (mm)

96

Height (mm)

20

Weight (gm)

65
