Product details

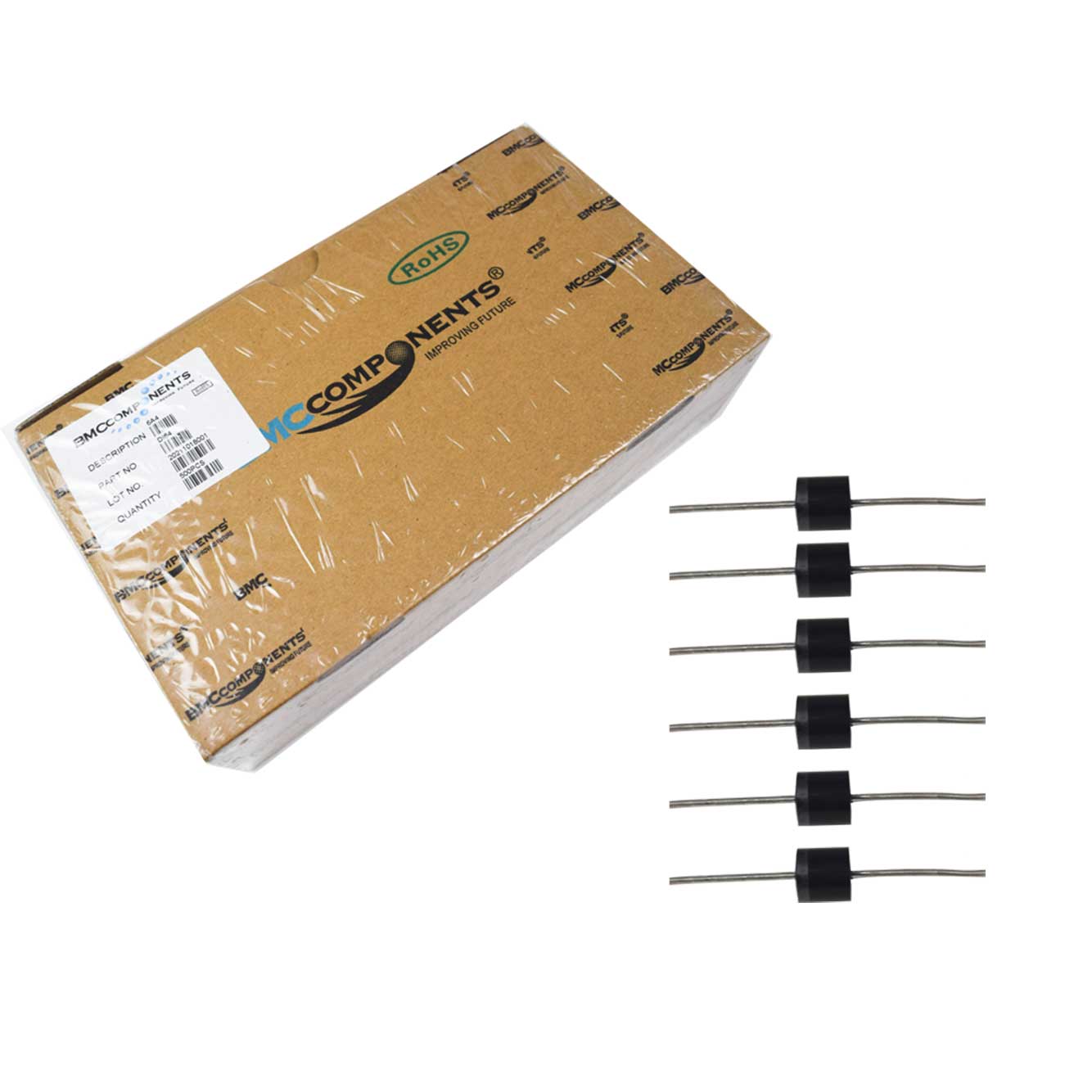

It’s a 6A4 6A 400v silicon rectifier diode. It has forward current 6A, reverse voltage 400v, and it has maximum RMS voltage 280v. This type silicon rectifier diode generally use in power supply application, controller board. dc dc converter controller board.
Features
- High Surge Current Capability
- Low Leakage and Forward Voltage Drop
- 6Amps Silicon Rectifier
- 400 Volts – Reverse Voltage
Specifications
| Model | 6A4 |
| Make | BMC Components |
| Type | Standard Recovery Rectifiers |
| Forward Current | 6A |
| Reverse Voltage | 400V |
| Maximum RMS Voltage | 280V |
| Case | R-6 |
| Mounting Type | Through Hole |
| No of Pin | 02 |
| Operating Temperature Range | -65 to +175 °C |
| Quantity | 500 |
| Country of Origin | China |
