Product details
This is a High-Quality 6V 1W Amber Colour SMD LED in a 2835 Package. These LEDs consume high power and generally produce a wide angle of light disbursement which can be narrowed through the use of external lenses. The Forward Voltage is 6.1-6.3 volts and the Forward Current is 150mA.
SMD LEDs are substantially smaller than lead frame-type components, they can be used on smaller boards, with higher packing density, less storage area, and smaller equipment. Just like the other SMD LEDs, it has two pins, an anode and a cathode for powering the LED. The most common application of these LEDs is as a Power, indicator purpose, pin status, blinky display, portable devices etc.
Pin Configuration
|
Pin Name |
Description |
|
Anode |
Positive terminal |
|
Cathode |
Negative terminal |
Specifications
| Brand | ENSEE |
|
Product |
2835 1W Amber LED |
|
Power Consumption |
1 Watt |
| Led Shape |
Rectangle |
|
Colour |
Amber |
| Colour Temperature (CCT) | 590-595K |
|
Forward Voltage(VF) |
6.1-6.3 V |
|
Forward Current(IF) |
150mA |
| Lumens(LM) | 70-80 |
|
Mounting |
SMD |
| Dimensions(LxB) | 3.5mm x 2.8mm |

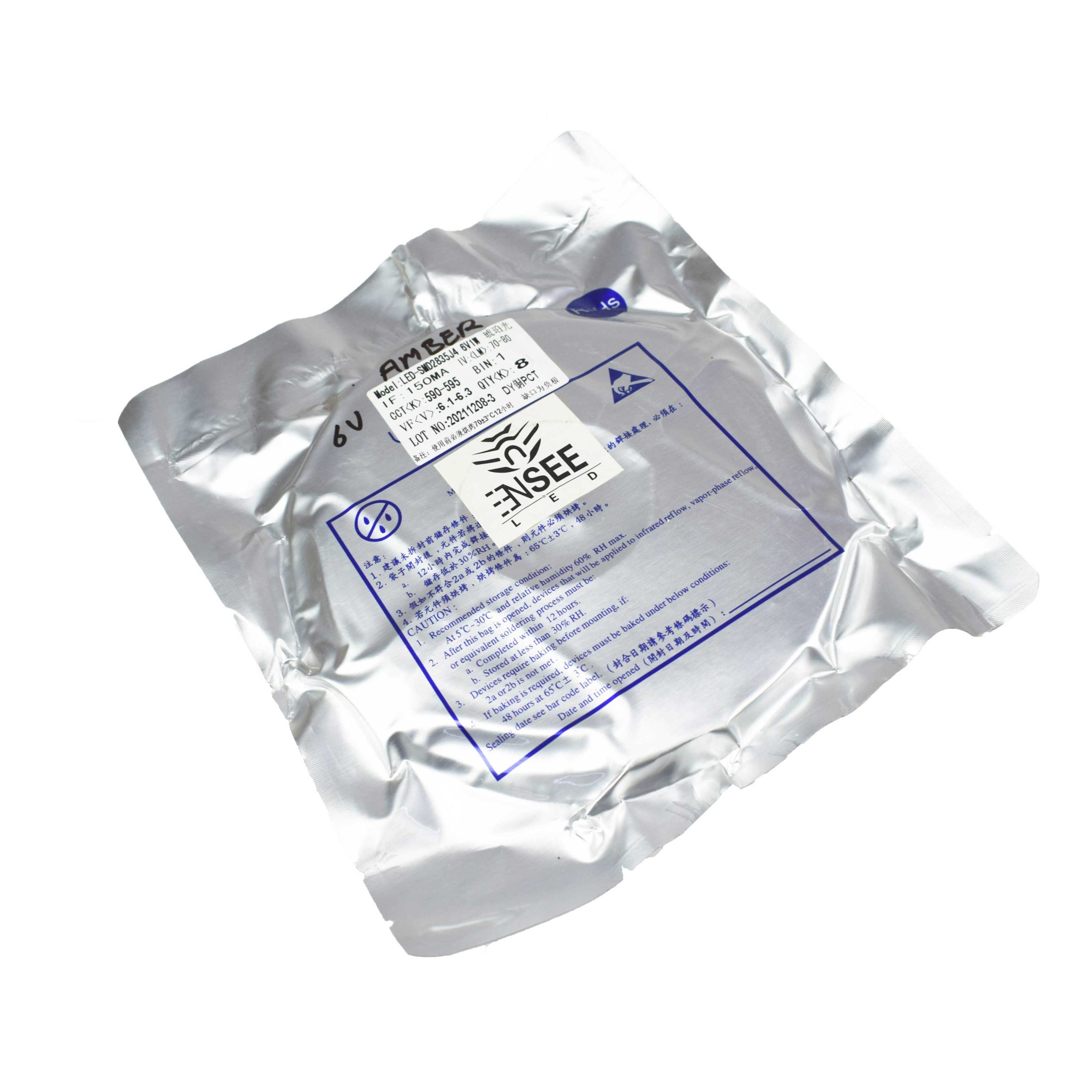

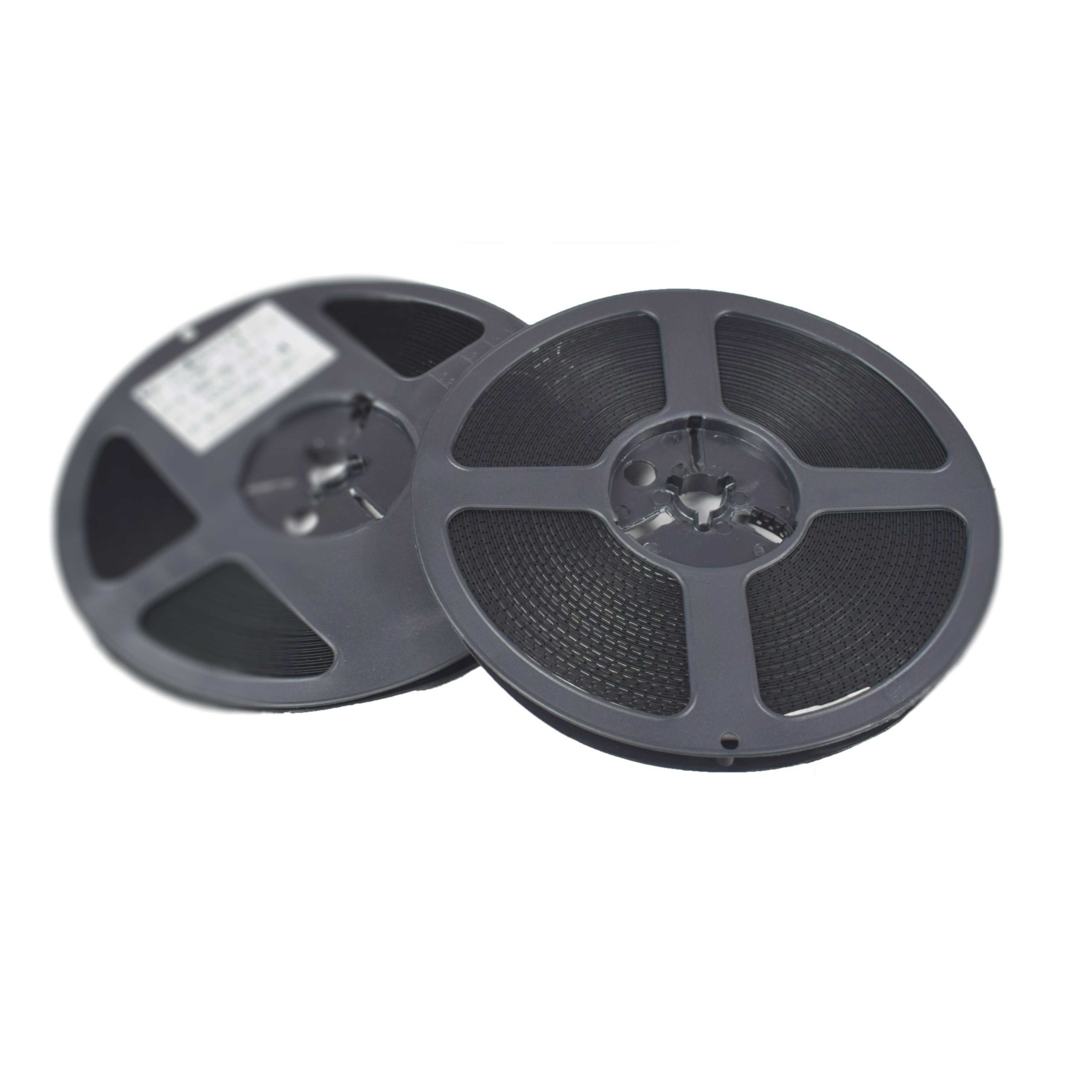

| Quantity | Pack of 8000Pcs in Package |
| Country of Origin | China |
