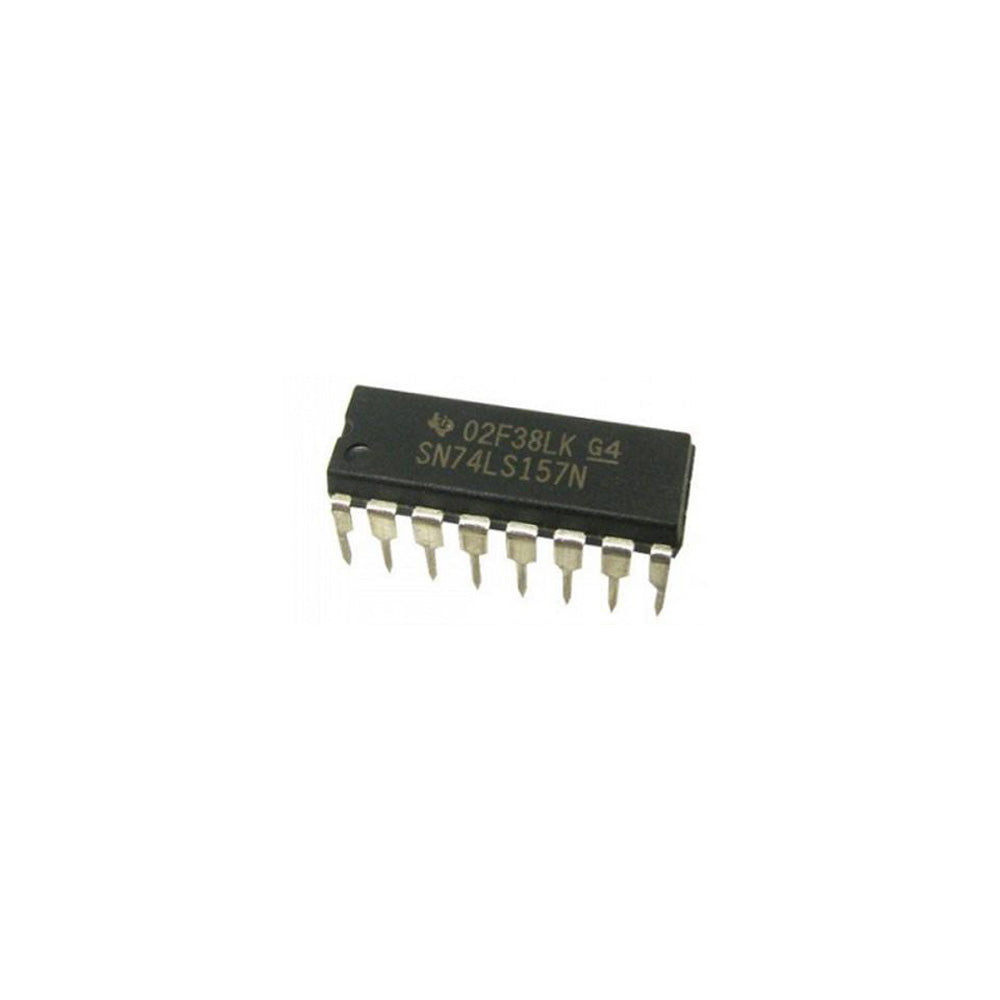

74LS157 Quad 2-Input Multiplexer IC (74157 IC) DIP-16 Package

Name: 74LS157 Quad 2-Input Multiplexer IC (74157 IC) DIP-16 Package - Robozar
Brand: Robozar
SKU: rz24344681
Price: 21.85 INR
Availability: OutOfStock
Rating: 5.00 (8 reviews)

Rated 5.00 out of 5 based on 8 customer ratings

(8 customer reviews)

Original price was: ₹32.56.Current price is: ₹25.79. (Including tax)

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹24.50 (Including tax)
11 - 20	8%	₹23.72 (Including tax)
21 - 40	10%	₹23.21 (Including tax)
41 - 100	12%	₹22.69 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

12 People watching this product now!

SKU: rz24344681 Categories: All Categories 1, Bulk Discount, Digital Logic IC, Integrated Circuits, Integrated Circuits and Base, New Arrivals, Products on Sale Tags: 16 Pin, 2-Input Multiplexer, 74HC157, 74HCT157, 74LS157, Digital IC, Digital Logic IC, DIP, DIP-16, IC, Logic IC, LS157, Multiplexer, PCB Mount, Quad 2-Input Multiplexer, Through Hole

Description

74LS Series ICs are High-Speed Logic gates, ideally a little faster than 74HC series but more power consumption is required. They are implemented with a Low-Power Schottky diode technology to achieve high switching speed. 74LS157 is one of the 74LS series IC. 74LS157 ICs contain four 2-Input Multiplexer. This device has a common active-high select input pin (A’/B) and active-low enable pin (G)’. When G’ is HIGH, all of the outputs (Y) are forced LOW regardless of all other inputs. A common use of the LS157 is the moving of data from two groups of registers to four common output busses. The 74LS157 ICs have an operating range of VCC from 4.5 V to 5.5 V. Maximum current consumption is 16 mA through Icc and 0.8 mA per input pin. And the maximum propagation delay is 9 ns. They can provide 0.4 mA at High Input and 8 mA at Low Input. They allow inputs and outputs up to VCC. The recommended operating VCC is 5 V.
Specification:

Operating Voltage Range	4.5 V to 5.5 V
Package	DIP−16
Input Current	0.8 mA
Powering Current	16 mA
Propagation Delay	9 ns
Temperature Range	-65 °C – 150 °C
Country of Origin	China

Additional information

Weight	1 kg
