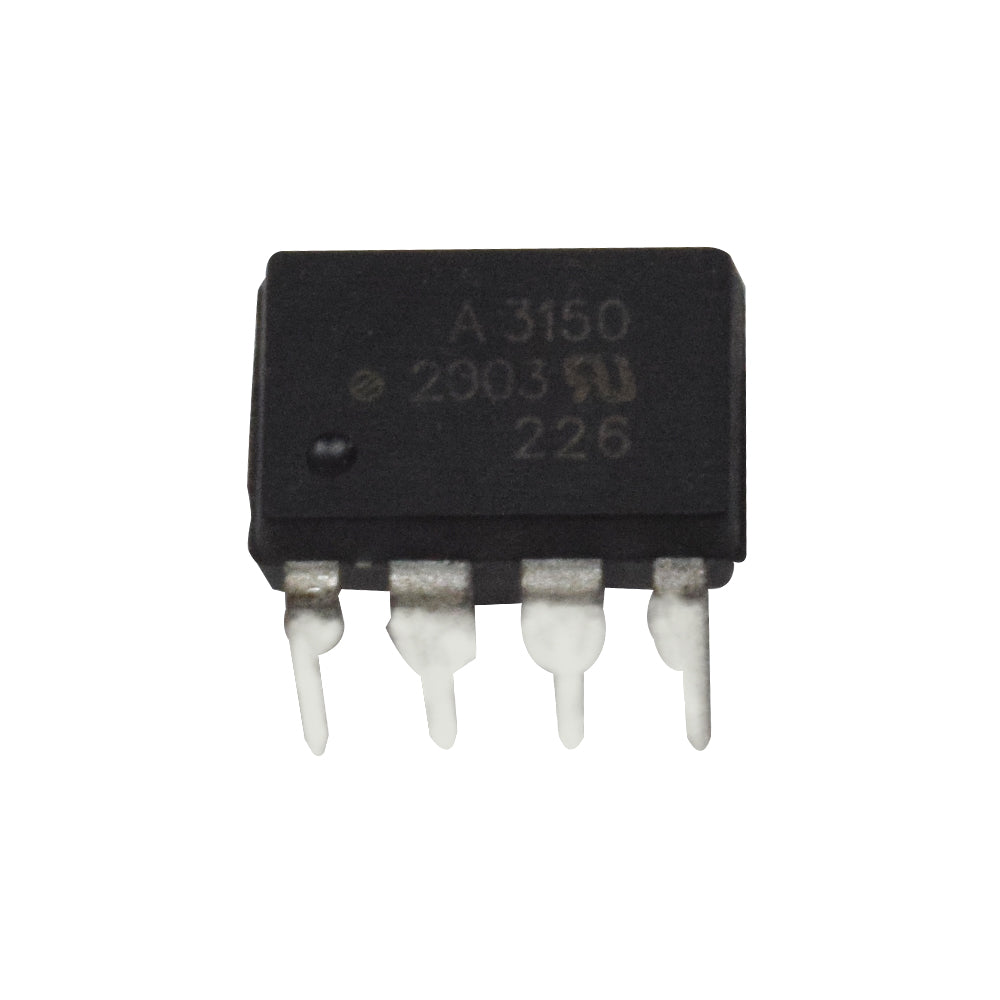

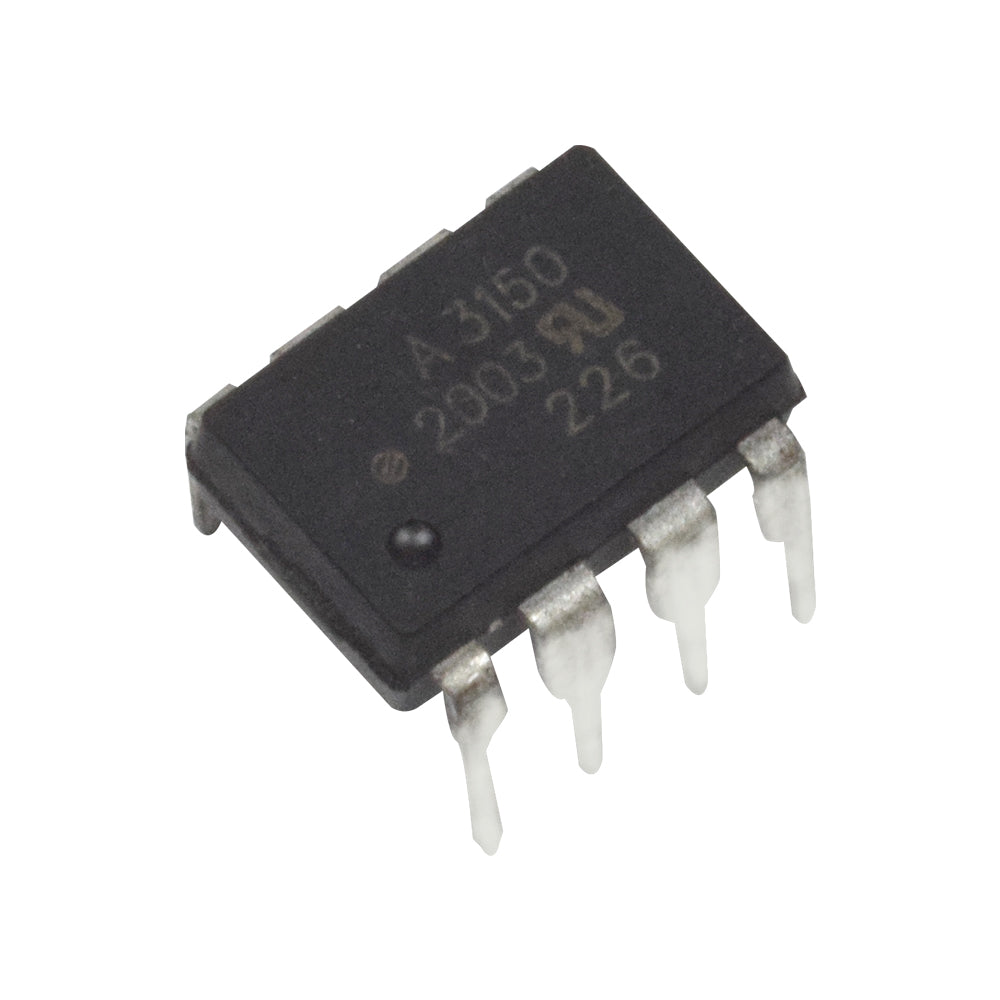

A3150 Optocoupler in DIP-8 Package

Original price was: ₹138.42.Current price is: ₹116.70. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%110.88 (Including tax)
11 - 208%107.37 (Including tax)
21 - 4010%105.03 (Including tax)
41 - 10012%102.69 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

16 People watching this product now!
Description

A3150 Optocoupler used in motor control inverter applications, this optocoupler is perfectly suited. The output stage’s large operating voltage range supplies the drive voltages needed by gate-controlled devices. This optocoupler is perfectly suited for directly driving IGBTs with ratings up to 1200V/50A due to the voltage and current it supplies. The HCPL-3150/315J can be used to drive a discrete power stage that drives the IGBT gate for IGBTs with greater ratings.

Features

  • 0.6A maximum peak output current

  • 1.0V maximum low level output voltage (VOL) eliminates need for negative gate drive

  • Under voltage lock-out protection (UVLO) with hysteresis

  • Wide operating VCC range: 15V to 30V

  • ±0.35-µs maximum delay between devices/channel

Specification
ModelA3150
TypeOptocoupler
No of Pins8
Channels1
Package8 Pin DIP
Output current0.5A
Maximum switching speed500nS
Operating voltage range15 to 30V
Country of OriginChina
